Triad-Orbit O2 Dual-Arm Orbital Boom

The Triad-Orbit Orbit Series O2 is a dual-arm orbital boom designed for recording and live scenarios where two mic or device positions are needed from a single stand. Each arm is equipped with Triad-Orbit’s proprietary Orbit ball swivel mechanism and terminates in an iO Quick-Coupler, enabling fast, precise placement of microphones, cameras, or lights without the setup time of conventional booms. A center swivel adds an additional 45° of left-right motion, while the Compass Point ball swivel housing locks each arm solidly in position once engaged. Whether miking a grand piano, snare top and bottom, or building out a dual A/V setup, the O2 does the work of two stands in significantly less floor space.

Key Features

• Dual independent boom arms — each arm fitted with the Orbit ball swivel mechanism for independent, full-range positioning
• 360° × 220° range of motion — each arm adjustable from 17 to 24 in. for precise reach at any angle
• Center swivel — adds 45° of additional left-right motion beyond standard boom movement
• Compass Point ball swivel housing — locks each arm securely in place for stable, repeatable positioning
• iO Quick-Couplers — terminate both arms for fast swapping of mics, cameras, or lights without tools

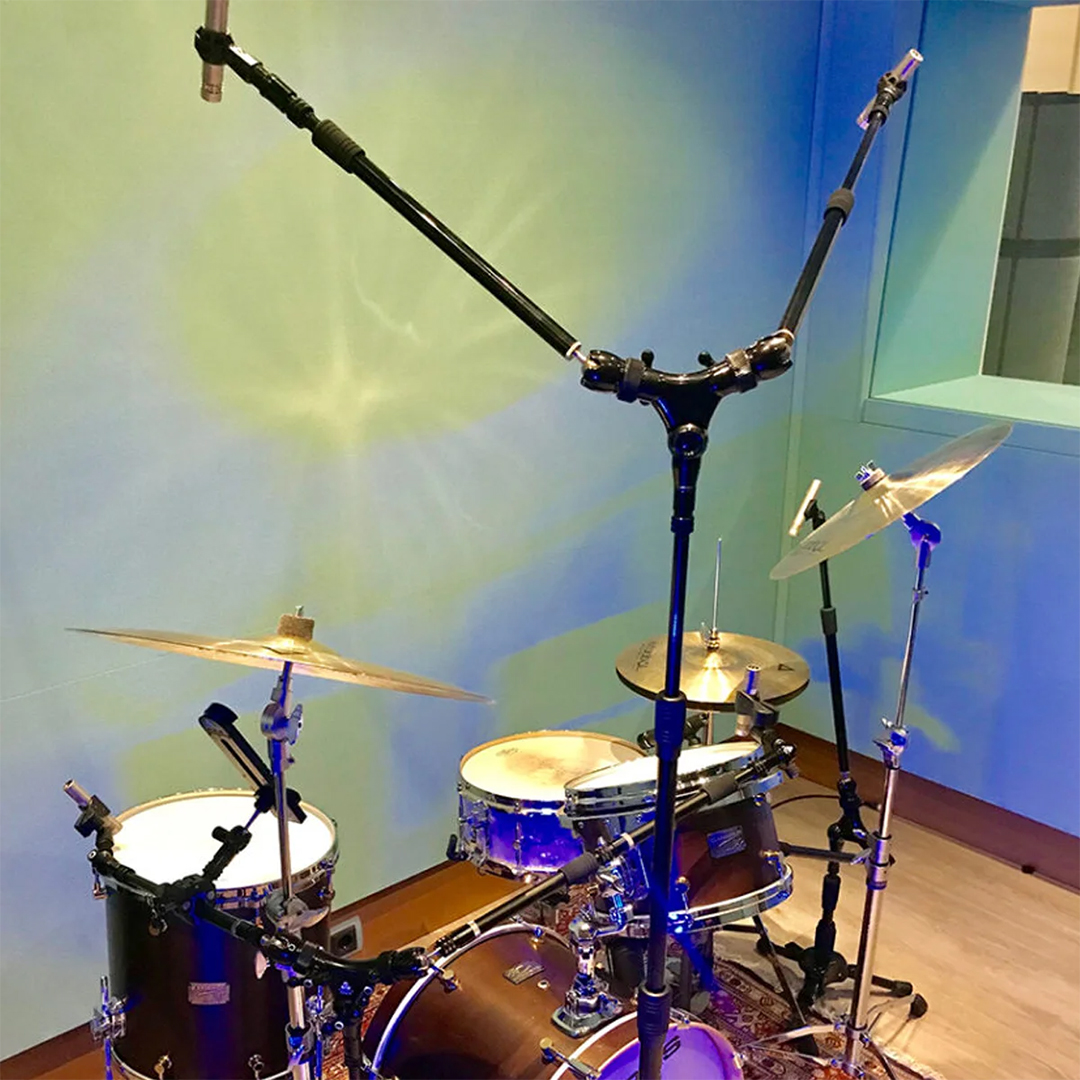

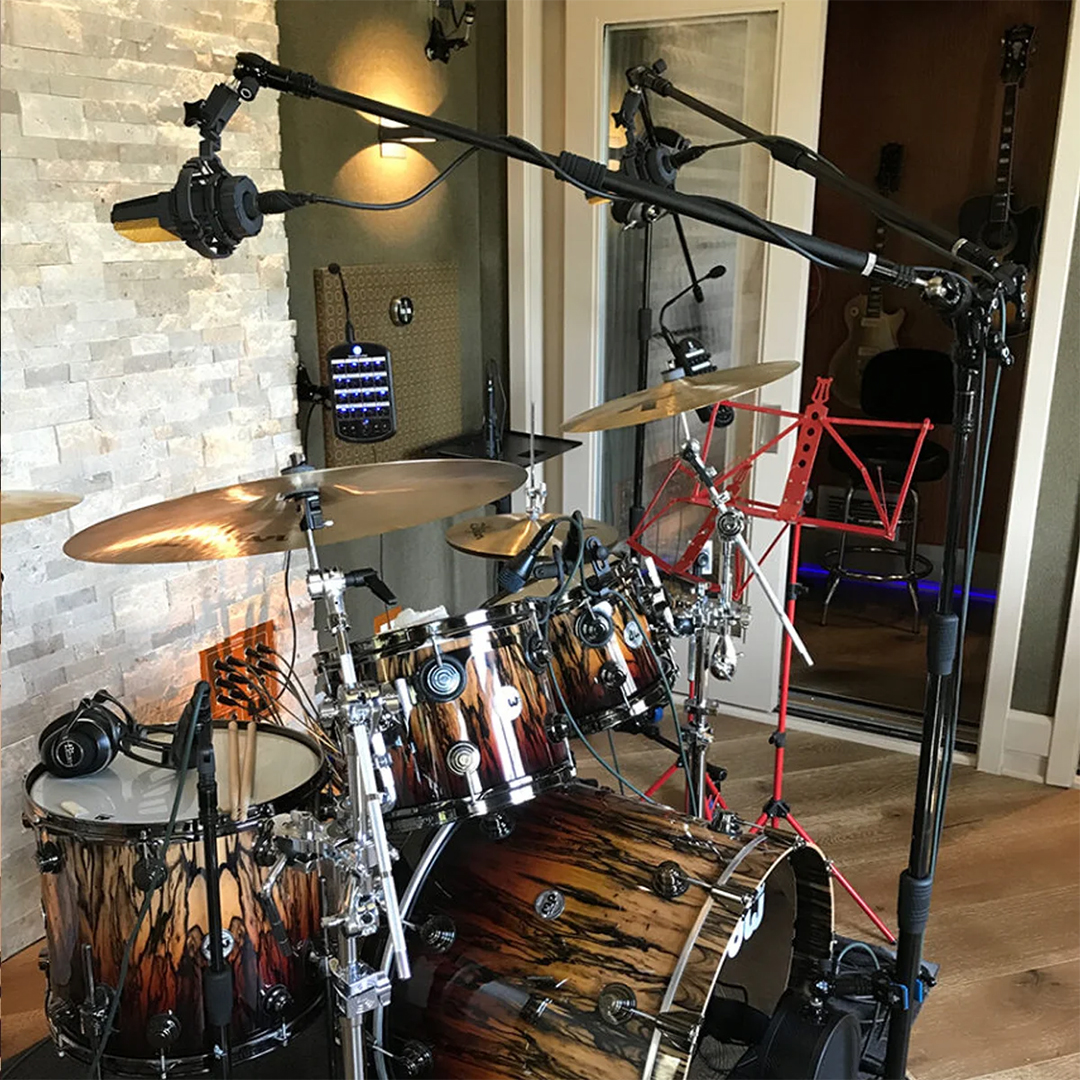

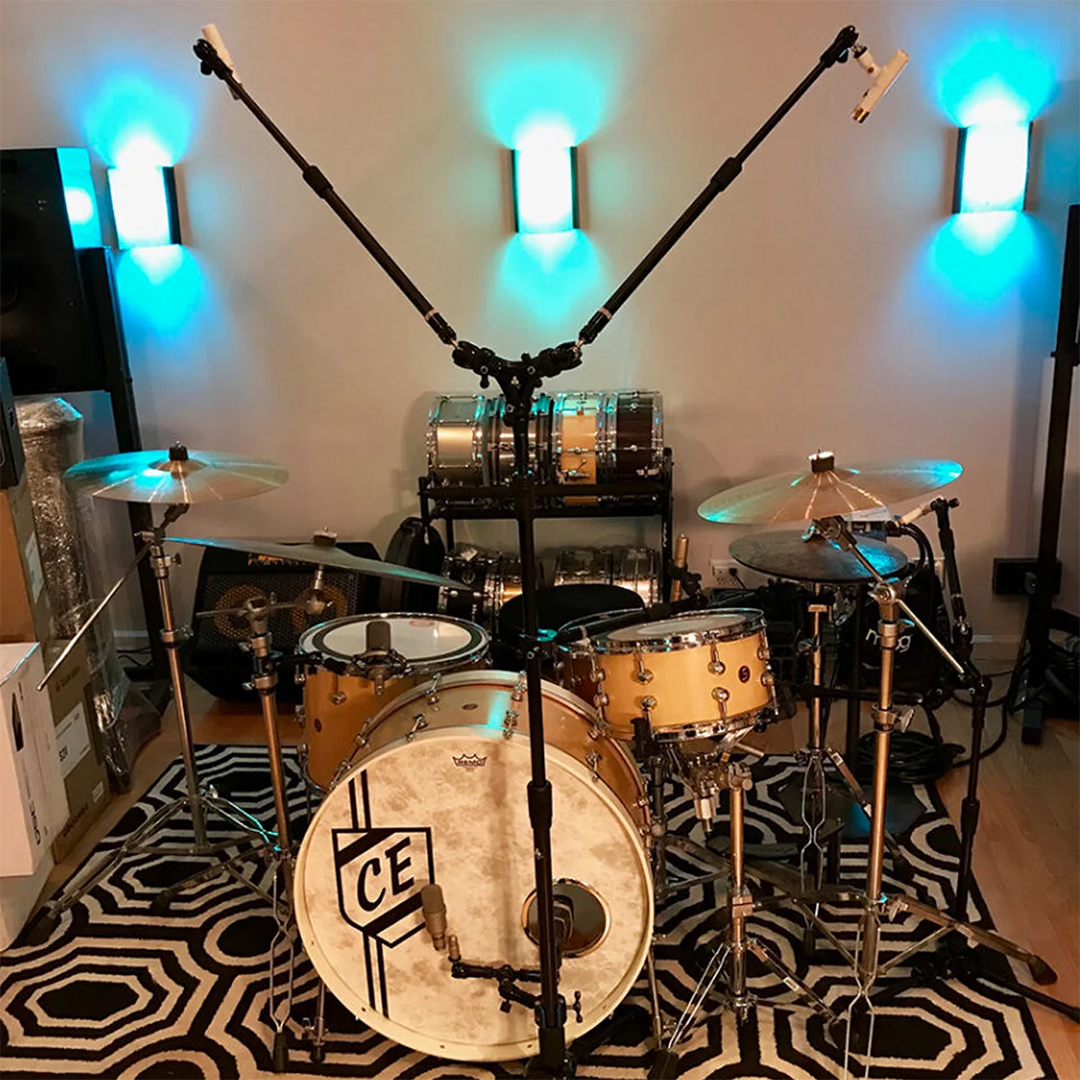

• Multi-discipline applications — ideal for stereo and dual-mic setups (grand piano, snare top/bottom, guitar and vocals, choir, orchestra) as well as A/V and multimedia rigs
• Replaces two stands — conserves floor space and simplifies setup when multiple devices are required

Specifications

• Boom Arm Range: 17–24 in.
• Range of Motion: 360° × 220°
• Max Reach: 29.75 in.
• Wingspan: 40.75–59.5 in.
• Max Recommended Weight Capacity: 7.75 lbs
• Product Weight: 6.25 lbs
• Shipping Weight: 8 lbs
• Dimensions: 22 × 11 × 4 in
