Trinnov NOVA Processor

$3,490.00

or pay $581.67/month for 6 months* with the Providence Synchrony Card

Questions About This Product?

Call +1 (323) 617-9393

Email info@provsv.com

Lifetime
Tech Support
Extended
Warranty
Free
Shipping

Trinnov NOVA Processor

The New Studio Essential

NOVA is set to be the new must-have in the music industry. Compact, powerful, and flexible, it will fit in your studio or in your backpack and prove to be the most essential piece of equipment in your studio.

Work Faster and Better with Trinnov’s Optimizer

Trinnov’s Optimizer technology is arguably the most efficient supercharger for your mixes. With its softer price tag, NOVA makes this essential technology more accessible to music makers. Yet, NOVA is not just an Optimizer; it is the backbone of your entire monitoring system.

From renowned sound engineers to loudspeaker manufacturers, Loudspeaker/Room Optimization is being rapidly adopted by the music industry. This area of acoustic research has been Trinnov’s main focus and expertise since 2005, and they are recognized as the undisputed leader in this field.

NOVA gives you access to Trinnov’s cutting-edge Optimizer technology. Change the way you work and never look back. Stop second-guessing and start focusing on music.

Upgrade from 2 to 6 Channels

NOVA is modular, allowing you to upgrade from 2 to 6 channels through a simple software update. Whether you add a subwoofer, a second pair of monitors, or upgrade to 5.1, all you need to do is purchase additional licenses from your local Trinnov dealer and unlock your NOVA in just a few clicks.

Comprehensive Monitor Controller

Packed in a shallow 1U chassis, NOVA is deceptively powerful and covers all your monitoring needs from stereo to 5.1. NOVA handles analog and digital signals like no other monitor controller. Connect, align, and seamlessly switch between sources and multiple sets of monitors, regardless of their format or connection.

Avid EUCON compliant and fully compatible with La Remote, NOVA allows advanced monitoring control and can easily be integrated with your production tools. It can be set up either as a full monitoring controller or as an embedded audio insert processing toolbox in the loudspeaker path.

Dante and AoIP

As a Dante device, connect NOVA easily within your audio network with low latency (down to 250 microseconds for the Dante network, >25ms for the processing). You can also use NOVA as your main audio interface along with the Dante Virtual Soundcard for direct DAW-to-monitoring integration.

The Trinnov App

With NOVA, the Trinnov User Experience changes dramatically. The first step is to download the Trinnov desktop application to update your software and/or install your software licenses. The app automatically finds your NOVA on the local network and gives you direct access to its user interface.

Streamlined User Experience

The Optimizer technology is very sophisticated and powerful, but Trinnov made it simple to use with a completely redesigned user interface. The new modern web interface comes with built-in help and a clear menu structure. Using NOVA should be self-explanatory, including a setup procedure that will guide you through the process step by step.

New Hardware Platform

NOVA is the first of a new generation of Trinnov products, based on an entirely redesigned platform that combines greater modularity, higher performance, enhanced reliability, and native support for Audio over IP.

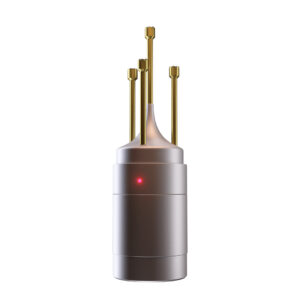

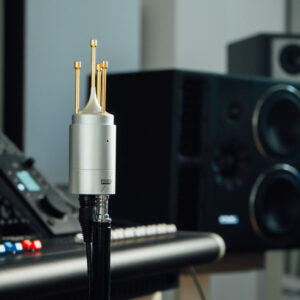

Improved 3D Microphone

Trinnov improved the measurement microphone with efficiency, simplicity, and reliability in mind. It is now equipped with phantom power, integrated memory, and automated steps to facilitate calibration, removing the need to manually input compensation files.

New DAC and Audio Core

One of the most important developments was the redesign of Trinnov’s main audio board, the Trinnov Audio Core. This new core is not only more powerful but also five times smaller and more efficient. It effectively handles the audio processing and removes the need for an additional computing section and fans.

The AD/DA section has also been redesigned around ESS Sabre chipsets. Noise and distortion levels have been reduced at all frequencies, allowing for more accurate monitoring.

La Remote

Use NOVA with Trinnov’s dedicated hardware controller “La Remote.” Take control of every function of NOVA at the press of a button. Through an easy drag-and-drop interface, personalize “La Remote” to your workflow, and adjust the functions and labels of its seven buttons to suit your environment.

Front Panel

  • Microphone Input: 1x Calibration Microphone Ethercon Input
  • Headphone Output: 1x Jack 6.35 stereo Headphone Output
  • La Remote connectivity: 1x USB Type A port for La Remote
  • Standby / Mute button: Yes
  • Status: LED Status

Audio & Processing

  • ADC Resolution / Sampling Rate: 24 Bits/192 kHz
  • DAC Resolution / Sampling Rate: 24 Bits/192 kHz
  • A/D Dynamic Range (AES17): 115 dB (A-Weighted, ref. +18dBu)
  • D/A Dynamic Range (AES17): 115 dB (A-Weighted, ref. +18dBu)
  • D/A THD+N ratio: > 110dB, 1kHz@0dBFS (20kHz BW)
  • Processing Sampling Rate: Native up to 96kHz (192kHz coming soon)
  • Processing Resolution: 64 bits floating point
  • Processing channels: 2 Optimizer licenses included (upgradable)
  • Zero latency bypass: coming soon
  • Crossovers / multiway: coming soon

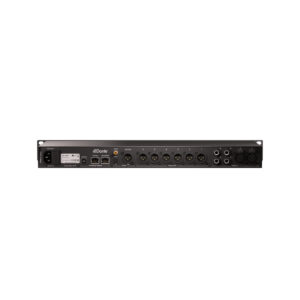

Digital Audio Connectivity

  • ADAT/SPDIF Input: 1x ADAT or SPDIF optical input
  • SPDIF Input: 1x SPDIF coaxial input
  • Ethernet port: 2x Ethernet ports (Dante 16 in/16 out)
  • XLR Output: 1x AES3 XLR stereo output

Analog Audio Connectivity

  • Balanced Input: 4x Jack 6.35 Balanced Inputs
  • Balanced Input: 2x XLR Balanced Inputs
  • Balanced Output: 6x XLR Balanced Outputs

Power Supply

  • Power requirement: 100V-240V AC 50Hz/60Hz
  • Power consumption: 15W
  • Mains fuse: T500mA slow blow
  • Transformer: Integrated (no external transformer, standard IEC socket)

Network

  • Network connectivity: IPV4 dual connector (configurable)
  • IP Configuration modes: DHCP / Auto-IP link local / fixed IP
  • Compatibility: EUCON compatibility via the “Trinnov App”

Weight & Dimensions

  • Dimensions (L x W x D) mm: 482 x 44 x 192
  • Dimensions (L x W x D) inches: 19” x 1.7” x 7.5”
  • Shipping box dimensions (W x H x D) cm: 59 x 7 x 30
  • Weight: 2.5 kg / 5.5 lbs
  • Shipping weight / volume: 3.7 kg / 0.012 m³
  • Rack Mounting: 1U – Fixed Rack Ears

Options

  • Processing channels upgrade: 2-channel software bundle (up to 6 total)
  • 3D Measurement Microphone: Ethercon connector
  • USB Hardware Remote Controller: La Remote

Warranty

  • Standard Warranty: 2 years (Transferable)

Current Development

  • Hardware Bypass: Coming 2024
  • 192 kHz processing: Coming 2024
  • Variable latency: Coming 2024
  • Active crossovers: Coming 2024
