Universal Audio SD-5 Dynamic Microphone

With Hemisphere Mic Modeling

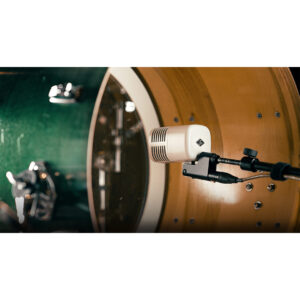

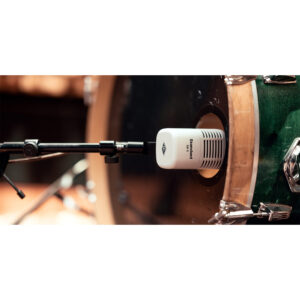

Capture the deep, punchy low-end of kick drums, bass amps, and other low-frequency instruments with the Universal Audio SD-5 Dynamic Microphone. Featuring a supercardioid polar pattern, high SPL handling, and Hemisphere mic modeling, the SD-5 gives you pro-level sound in any recording or live performance environment.

Record Through Five Workhorse Kick Mics

Powered by the same mic modeling technology found in Universal Audio’s award-winning Sphere microphones, the SD-5 lets you choose from five iconic dynamic microphones used for kick drums and bass-heavy instruments. Get the legendary tones of Shure, Audix, and AKG with the included Hemisphere Mic Collection software.

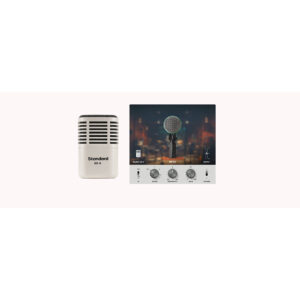

A Modeling Mic That Works for You

The SD-5 and Hemisphere software go beyond simple EQ curves, providing precise control over filter, proximity, and axis adjustments—an industry first. Dial in the perfect sound for your kick drum or bass amp, whether you’re in a pro studio, home setup, or live venue.

Capture Powerful Low-End with Unmatched Clarity

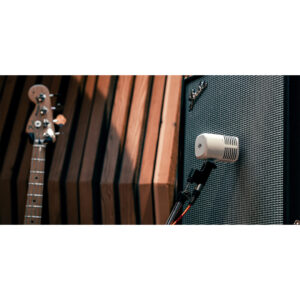

The SD-5’s supercardioid polar pattern delivers tight directional capture with high SPL tolerance, allowing you to mic kick drums, bass cabinets, and deep percussive elements without unwanted bleed. Whether you’re recording in a studio or performing on stage, the SD-5 ensures optimal tone, punch, and clarity.

Classic Design, Built for the Long Haul

With a rugged all-metal construction, vintage-inspired aesthetics, and hand-selected capsules, the SD-5 is built to handle decades of professional use. Whether you’re capturing thunderous bass lines or punchy drums, this mic is a reliable companion for any engineer or musician.

Included Hemisphere Mic Models

• DN-6 – Based on an American kick drum mic known for its deep bass response and tight, aggressive tone. A favorite for Metal and heavy Rock genres.
• DN-12A – Modeled after a 1950s classic, this mic has been used by legendary producers like John Leckie (Radiohead, Paul McCartney, Pink Floyd) to capture warm, rich kick drum tones.
• DN-52 – Based on a modern American kick drum microphone, this model offers extended low-frequency response and a well-balanced sound suited for nearly any bass-heavy source.
• DN-112 – This Austrian-made dynamic mic is now a staple in Hip-Hop and Rock recordings, known for its extended low-end and enhanced top-end presence.
• DN-SUB – Modeled after a popular studio trick of using a full-range speaker driver in reverse to capture deep sub frequencies, making it easier than ever to blend with traditional mics for added weight.

Key Features

• Professional low-end capture – Perfect for kick drums, bass amps, and other deep-frequency sources.
• Authentic mic modeling – Get the sound of industry-standard dynamic microphones using Hemisphere mic modeling.
• High SPL handling – Record loud sources with clarity and minimal distortion.
• Precision control – Adjust filter, proximity, and axis settings for the perfect tone in any environment.
• Durable construction – All-metal build ensures reliability in the studio and on the road.

Specifications

• Microphone Type: Dynamic
• Polar Pattern: Supercardioid
• Frequency Range: 20 Hz – 15 kHz
• Sensitivity: -64 dB (0 dB = 1V/Pa @ 1 kHz)
• Output Impedance: 50 Ohms
• Connector: 3-Pin XLRM

Included Accessories

• Integrated standmount with angle adjustment
• ⅝” to ⅜” thread adapter
• Storage pouch

Dimensions & Weight

• Length: 4.06″ (103.2 mm)
• Width: 5.61″ (142.6 mm)
• Weight: 1.6 lbs (727 g)

For engineers and musicians looking to capture deep, punchy low-end with professional clarity, the Universal Audio SD-5 Dynamic Microphone delivers unbeatable performance with vintage style.
