Vanguard Audio Labs V1 Gen2 Pencil Condenser System

Unparalleled Versatility and Superior Sound Quality

The Vanguard Audio Labs V1 Gen2 is the ultimate multi-capsule pencil condenser microphone system. Featuring four matched custom small-diaphragm capsules with multiple pickup patterns—Cardioid, Hypercardioid, Wide Cardioid, and Omnidirectional—this microphone delivers exceptional tonal flexibility for any recording scenario. With upgraded electronics, including a high-end dual-monolithic parallel JFET and premium American-made audiophile resistors, the V1 Gen2 sets a new standard in sound quality and performance.

Key Features

• Four Interchangeable Capsules: Includes Cardioid, Hypercardioid, Wide Cardioid, and Omnidirectional capsules for a wide range of recording applications.
• Transformer-Balanced Circuitry: Delivers transparent and detailed audio with low noise and high dynamics.
• High-Quality JFET Components: Utilizes dual-monolithic parallel JFET technology and audiophile-grade resistors for improved signal-to-noise ratio.
• Cryogenically Treated Components: Enhances lifespan and overall performance of critical signal and power path components.
• Precision Engineering: Hand-assembled and 100% quality tested in Southern California.
• Heavy-Duty Construction: Built with brass, steel, and aircraft-grade aluminum for durability and reliability.
• Matte Black Finish: A sleek and professional look for stage and video applications.
• True Studio Versatility: Perfect for studio and field recordings, capturing everything from acoustic instruments to orchestral ensembles.
• 5-Year Warranty: Backed by Vanguard Audio Labs’ commitment to quality and reliability.

Specifications

• Transducer Type: Condenser
• Capsule Size: 0.87″/22mm
• Diaphragm Thickness: 4µm gold-sputtered Mylar
• Electronics Type: Solid-state, transformer-balanced output
• Output Impedance: 200Ω
• Max SPL: ≥136dBA (0.5% THD @ 1000Hz)
• Frequency Response: 20Hz-20kHz
• Equivalent Noise Level: ≤13dBA
• S/N Ratio: ≥91dB (Ref. 1Pa A-weighted)
• Sensitivity: -39dB @ 1Pa
• Output Connector: Male XLR 3-pin, gold-plated
• Finish: Matte Black
• Weight (Microphone): 4.79oz / 136g
• Dimensions (Microphone): 142mmL, 22mmØ

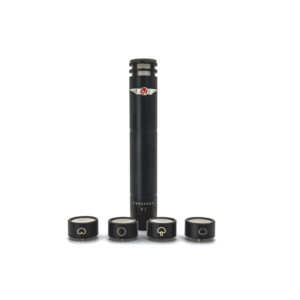

Included Accessories

• 22mm Cardioid Capsule
• 22mm Hypercardioid Capsule
• 22mm Omnidirectional Capsule
• 22mm Wide Cardioid Capsule

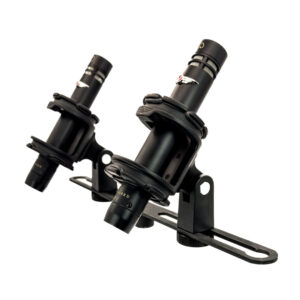

• VSSM Heavy-Duty Shockmount: Features a windowed design for easy access to microphone switches.
• Padded Pinewood Microphone Storage Box: Keeps your microphone and accessories protected.

Advanced Design & Build Quality

The V1 Gen2 is the result of years of meticulous engineering, ensuring a no-compromise approach to audio fidelity. Vanguard’s design philosophy prioritizes sonic accuracy, reliability, and aesthetics. The precision-machined brass body, custom-wound transformer, and carefully selected components make this microphone system a studio essential. Whether you’re capturing delicate acoustic instruments, rich vocals, or immersive environmental recordings, the V1 Gen2 delivers unmatched performance with effortless ease.

With its robust construction, cutting-edge technology, and versatile capsule selection, the Vanguard Audio Labs V1 Gen2 is your new go-to small-diaphragm condenser microphone for professional recording applications.
