Vanguard Audio Labs V13 Gen2 CM CineMag Tube Condenser

Introducing the V13 Gen2

The Vanguard Audio Labs V13 Gen2 is a large-diaphragm, multi-pattern tube condenser microphone, re-imagined to combine smooth modern detail with vintage warmth and character. With an upgraded power supply, premium cryogenically-treated tube circuitry, audiophile-grade resistors, Neutrik® interconnects, and a VLSM shockmount, the V13 is designed to be your go-to microphone for vocals and instruments alike.

Gen2 Upgrades

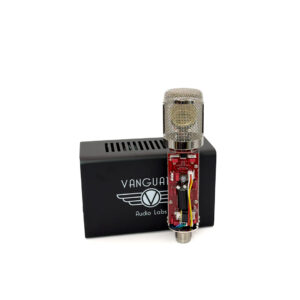

The V13 Gen2 features key improvements including an even lower signal-to-noise ratio and enhanced sound staging. The power supply has been redesigned for more clean headroom, while the fit and finish of every mechanical component have been improved for both aesthetics and performance. A custom CineMag transformer version is also available for even smoother sonics, offering a unique tonal experience.

Quality & Construction

Designed and assembled in California, the V13 undergoes a rigorous quality control process. Each microphone is tested for audio and visual performance before being hand-packed. The V13 is built to be robust and reliable, featuring heavy-duty brass, stainless steel, aluminum, and zinc construction, with components that are cryogenically treated to enhance their lifespan and performance. Every V13 comes backed by Vanguard’s five-year warranty.

Performance

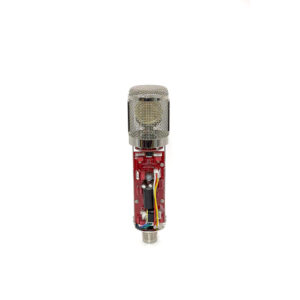

With the character of iconic vintage tube microphones in mind, the V13 delivers warm, full lows, precise midrange, and buttery-smooth high-end. Its forgiving nature makes it suitable for a wide range of vocal styles and timbres, while its incredibly low noise floor ensures a pristine recording quality. The V13 features a 34mm edge-terminated, gold-sputtered dual-capsule assembly with premium-grade components, including a hand-selected European vacuum tube and a custom-wound, dual-bobbin humbucking transformer.

Features:

• Custom-voiced, edge-terminated 34mm dual-capsule assembly with gold-sputtered Mylar diaphragms
• 9 polar patterns selectable at the power supply
• Hand-selected European vacuum tube
• Deep-cycle cryogenic treatment of critical components
• Transformer-coupled output with humbucking, shielded, dual-bobbin transformer
• -10dB pad and low-frequency rolloff toggle switches
• Neutrik® connectors on microphone, power supply, and cable
• Precision-machined stainless steel body with Pinot Noir finish and polished nickel trim
• Laser-engraved serial number and rear venting for prolonged tube life
• 5-year warranty (90-day warranty for vacuum tube)

• Transducer Type: Condenser
• Capsule Size: 1.34″ / 34mm (dual-capsule)
• Electronics Type: Valve/Tube, Transformer-Coupled Output
• Output Impedance: 200Ω
• Max SPL: 134dB (144dB with pad)
• Frequency Response: 20Hz-20kHz
• Equivalent Noise Level: ≤12dB (A-weighted)
• S/N Ratio: ≥82dB (Ref. 1Pa A-weighted)
• Sensitivity: -35dBV
• Output Connector: Male XLR 7-pin gold-plated
• High-Pass/Rolloff Switch: 125Hz (6dB/octave)
• Attenuation/Pad Switch: -10dB
• Dimensions (microphone): 8.2″ long, 2.05″ diameter

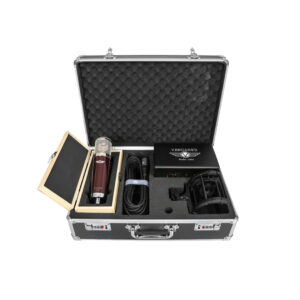

Included Accessories:

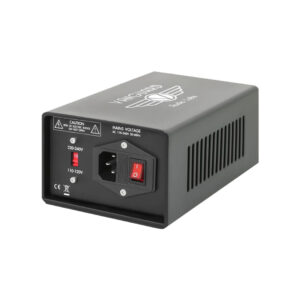

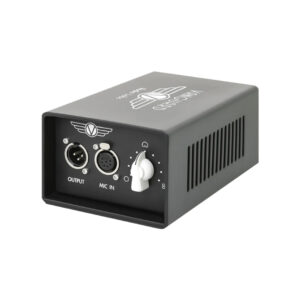

• PS-13 Gen2 Power Supply with Neutrik® connectors

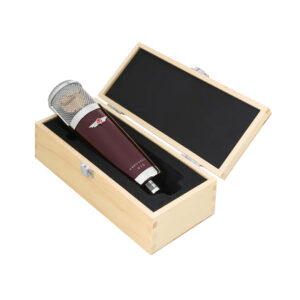

• Padded Pinewood Microphone Box

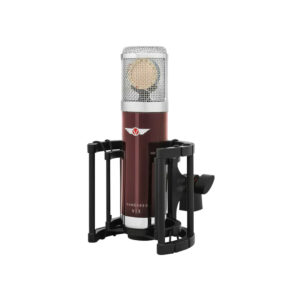

• VLSM Large Shockmount with aerospace-grade suspension rings
• Locking Aluminum Carrying Case
• Heavy-Gauge 7-pin Microphone Cable with REAN® Connectors
• Power Cable
