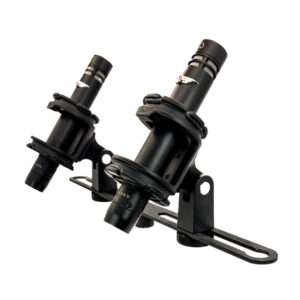

Vanguard Audio Labs V1S Gen2 Pencil Condenser System

Precision Matched Pair for Ultimate Recording Flexibility

The Vanguard Audio Labs V1S Gen2 is a matched stereo pair of multi-capsule FET pencil condenser microphones, offering an unparalleled range of tonal variations for any sound source. With eight custom small-diaphragm capsules in four pickup patterns—Cardioid, Hypercardioid, Wide Cardioid, and Omnidirectional—this microphone system provides superior flexibility for professional recording and live sound applications. The V1S Gen2 features premium cryogenically-treated FET electronics, audiophile-grade resistors, and a sleek matte black finish, making it an essential tool for any studio or stage.

Key Features

• Matched Stereo Pair: Two precision-matched microphones for accurate stereo recording.
• Eight Interchangeable Capsules: Includes two each of Cardioid, Hypercardioid, Wide Cardioid, and Omnidirectional capsules for ultimate recording versatility.
• Transformer-Balanced Circuitry: Ensures transparent and detailed audio with minimal noise and maximum headroom.
• Premium JFET Electronics: Features a dual-monolithic parallel JFET design with high-end audiophile-grade resistors for improved signal-to-noise ratio.
• Deep-Cycle Cryogenic Treatment: Enhances the lifespan and performance of critical signal path components.
• Hand-Assembled & Tested: Every unit undergoes rigorous quality control and precision biasing in California, USA.
• Heavy-Duty Shockmounts: Includes VSSM shockmounts designed for superior isolation and durability.
• All-Black, Non-Reflective Finish: Aesthetic design optimized for live sound and video applications.
• 5-Year Warranty: Backed by Vanguard Audio Labs’ commitment to quality and longevity.

Specifications

• Transducer Type: Condenser
• Capsule Size: 0.87″/22mm
• Diaphragm Thickness: 4µm gold-sputtered Mylar
• Electronics Type: Solid-state, transformer-balanced output
• Output Impedance: 200Ω
• Max SPL: ≥136dBA (0.5% THD @ 1000Hz)
• Frequency Response: 20Hz-20kHz
• Equivalent Noise Level: ≤13dBA
• S/N Ratio: ≥91dB (Ref. 1Pa A-weighted)
• Sensitivity: -39dB @ 1Pa
• Output Connector: Male XLR 3-pin, gold-plated
• Finish: Matte Black
• Weight (Microphone): 4.79oz / 136g
• Dimensions (Microphone): 142mmL, 22mmØ
• Weight (In Case): 5.6lbs / 2.54kg

Included Accessories

• Two Vanguard V1 Gen2 Microphones
• Eight 22mm Interchangeable Capsules:
  • Two Cardioid Capsules
  • Two Hypercardioid Capsules
  • Two Omnidirectional Capsules
  • Two Wide Cardioid Capsules
• Two VSSM Heavy-Duty Shockmounts: Custom-designed for superior isolation.
• Stereo Microphone Bar: Ideal for X/Y, ORTF, and other stereo mic’ing techniques.
• Locking Aluminum Storage Case: Custom-cut high-density foam ensures maximum protection.

Precision Engineering & Design

The V1S Gen2 system is engineered with a “no-compromise” philosophy, utilizing only high-quality components and meticulous craftsmanship. The capsules feature an anti-comb-filtering front design and precision-machined backplates, ensuring consistent, phase-coherent sound. The dual-monolithic JFET and transformer-balanced output deliver a clean and musical signal, making this matched stereo pair ideal for professional-grade recordings.

Designed for recording engineers, musicians, and producers, the Vanguard Audio Labs V1S Gen2 is the perfect choice for capturing stunning stereo imaging and immersive soundscapes.
