Vanguard Audio Labs V4 Gen2 FET Condenser

Introducing the V4 Gen2

The Vanguard Audio Labs V4 Gen2 is a large-diaphragm, multi-pattern FET condenser microphone, re-imagined to deliver exceptional versatility, reliability, and professional performance. With an acclaimed edge-terminated ultra-thin custom-voiced capsule, cryogenically-treated componentry, Neutrik® interconnects, and a high-quality shockmount, the V4 is designed to be your go-to workhorse microphone at an affordable price.

Gen2 Upgrades

The V4 Gen2 features significant upgrades, including audiophile-grade components such as US-made low-noise resistors, resulting in a lower signal-to-noise ratio and improved sound staging. Every mechanical component has been redesigned to enhance both fit and finish, making the V4 Gen2 not only a world-class performer but also a visually stunning microphone.

Quality & Construction

Designed and assembled in California, the V4 undergoes a rigorous quality control process to ensure top-notch performance. Each microphone kit is tested for both audio and visual performance before being hand-packed. Featuring heavy-duty stainless steel, brass, aluminum, and zinc construction, the V4 is built to withstand the demands of professional recording environments. Vanguard backs every microphone with a five-year warranty.

Performance

The V4 is crafted with the characteristics of classic FET microphones in mind while incorporating modern technology to meet the demands of today’s recording professionals. The ultra-thin 3µm edge-terminated capsule diaphragms are highly sensitive, capturing every nuance and detail of a performance. The V4 includes a -10/-20dB pad option for added versatility, and the signal and power paths are identical to a single channel of the V44S, providing a clean and full character that rivals much more expensive microphones.

Thoughtful Design

The V4 is precision-built to “no-compromise” standards, featuring a custom-voiced 34mm edge-terminated capsule mounted in an open-weave headbasket for a natural sound with low internal reflections. The transformerless solid-state circuit is loaded with premium-grade components, including an American-made audiophile-grade transistor that delivers significant improvements in audio quality, headroom, distortion, sound-stage, and noise floor. Neutrik® interconnects ensure the best possible signal preservation, and the microphone’s stainless steel body is finished in Vanguard’s signature Pinot Noir with polished nickel trim.

Features:

• Custom-voiced, edge-terminated 34mm dual-capsule assembly with 3µm gold-sputtered Mylar diaphragms
• Three selectable polar patterns: Cardioid, Figure-8, Omnidirectional
• Switchable -10/-20dB pad
• Transformerless solid-state circuitry with audiophile-grade components
• Ultra-low-noise JFET design with deep-cycle cryogenic treatment
• Neutrik® interconnects for superior signal quality
• Precision-machined stainless steel body with deep-gloss Pinot Noir finish and polished nickel trim
• Laser-engraved serial number
• 5-year warranty

• Transducer Type: Condenser
• Capsule Size: 1.34″ / 34mm (dual-capsule)
• Diaphragm Size: 1.04″ / 26.4mm
• Capsule Diaphragm Thickness: 3µm
• Electronics Type: Solid-state, electronically-balanced output
• Output Impedance: 200Ω
• Max SPL: Approximately 135dB (145dB with pad)
• Frequency Response: 20Hz-20kHz
• Equivalent Noise Level: ≤12dBA (A-weighted)
• S/N Ratio: ≥82dBA (A-weighted)
• Output Connector: Neutrik® male XLR 3-pin, gold-plated
• Attenuation/Pad Switch: -10dB / -20dB (switchable)
• Finish: Polished nickel trim / High-gloss Pinot Noir
• Weight (microphone): 0.83 lbs / 0.38 kg
• Weight (in case): 5.63 lbs / 2.56 kg
• Dimensions (microphone): 8.2″ long, 2.05″ diameter
• Voltage Requirement: Phantom Power (+48V ideal)

Included Accessories:

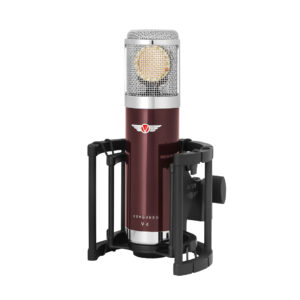

• VLSM Large Shockmount with open front for easy positioning
• Padded Pinewood Microphone Storage Box with desiccant packet

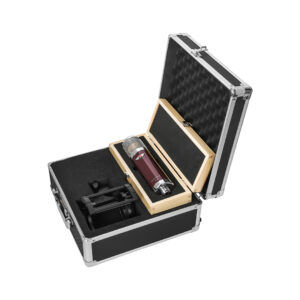

• Aluminum Carrying Case
