Vanguard Audio Labs V1S+LOLLI Gen2 Stereo Pencil Condenser Kit

The Vanguard Audio Labs V1S+LOLLI Gen2 Stereo Pencil Condenser Kit bundles the second-generation V1S matched pair of multi-capsule small-diaphragm condenser microphones with the V34C Gen2 “LOLLI” interchangeable large-diaphragm capsule head, forming a comprehensive, multi-format microphone system designed for professional recording and stereo capture. The V1S gen2 microphones are built around a dual-monolithic parallel JFET front end, a custom-wound humbucking dual-bobbin transformer-balanced output, US-made audiophile-grade low-noise resistors, and deep-cycle cryogenically treated critical components — all assembled and 100% quality-tested by hand in Hatfield, Pennsylvania. Eight interchangeable 22mm capsules — two each in cardioid, hypercardioid, wide cardioid, and omnidirectional patterns — provide a wide range of pickup configurations for acoustic instruments, drum overheads, piano, and stereo miking techniques including X/Y and ORTF. Designed in the USA by a team with more than 65 years of combined experience and backed by a five-year warranty, this kit delivers a complete small-diaphragm condenser system with large-diaphragm multi-pattern capability in a single package, suited to recording engineers, producers, and studios of every scale.

Key Features

• Dual-monolithic parallel JFET front end — gen2 upgrade — the second generation V1S replaces the gen1 front end with a dual-monolithic parallel JFET design for reduced noise and higher resolution; each JFET is hand-biased at the Hatfield, Pennsylvania facility and cryogenically treated as part of the critical signal path component set; the circuit follows an “In = Out” philosophy with only four components between capsule and output, including a custom-wound humbucking dual-bobbin transformer for balanced output and noise rejection
• Eight interchangeable 22mm small-diaphragm capsules — four patterns — two matched pairs each of cardioid, hypercardioid, wide cardioid, and omnidirectional; 16mm 4µm gold-sputtered Mylar diaphragm per capsule; precision-machined, custom-voiced backplates; capsule housing engineered to position the diaphragm as close to the front as possible to prevent comb filtering; swappable without tools for fast pattern changes between setups and sources
• Deep-cycle cryogenic treatment throughout the signal and power paths — critical electronic components including the JFET, transformer, capacitors, and resistors in the signal and power paths undergo deep-cycle cryogenic treatment to improve electronic stability, reduce noise contribution, and extend long-term operational reliability
• US-made audiophile-grade low-noise resistors — used throughout the gen2 lineup; domestic-sourced, precision-selected for the noise floor requirements of the gen2 circuit; a direct contributor to the improved signal-to-noise ratio over the gen1 design
• Transformer-balanced output — custom-wound humbucking dual-bobbin transformer — the output transformer is wound specifically for the V1S capsule system to match the musical and electrical properties of the capsule set; humbucking dual-bobbin construction rejects common-mode noise and interference; transformer-balanced output handles long cable runs with high noise rejection
• V34C Gen2 “LOLLI” interchangeable large-diaphragm capsule head included — the same V34C Gen2 LOLLI capsule head sold separately; compatible with the V1S via M21x0.5 threading, converting the pencil condenser body into a switchable-pattern large-diaphragm recording tool; 34mm edge-terminated, 3µm gold-sputtered Mylar dual-capsule assembly — the same proprietary capsule used in the Vanguard V44S and V13 microphones; switchable between cardioid and omnidirectional via top-mounted switch
• VSSM shockmounts — one per microphone — heavy-duty diecast zinc and high-impact ABS construction; aerospace-grade suspension rings for effective mechanical vibration and rumble isolation; windowed design allows access to mic switches without repositioning the microphone on the stand; included as a matched pair with the kit
• Stereo microphone bar included — sets up X/Y, ORTF, and other coincident and near-coincident stereo configurations; compatible with the VSSM shockmounts for stable stereo positioning
• Matte black finish — stealthy in video and live environments — non-reflective cosmos black matte finish chosen to minimize visual distraction in video recording and live performance contexts; precision-cast Vanguard Audio Labs badge; each microphone carries its own unique serial number laser-engraved on the lower rear; heavy-duty brass, steel, and zinc construction throughout

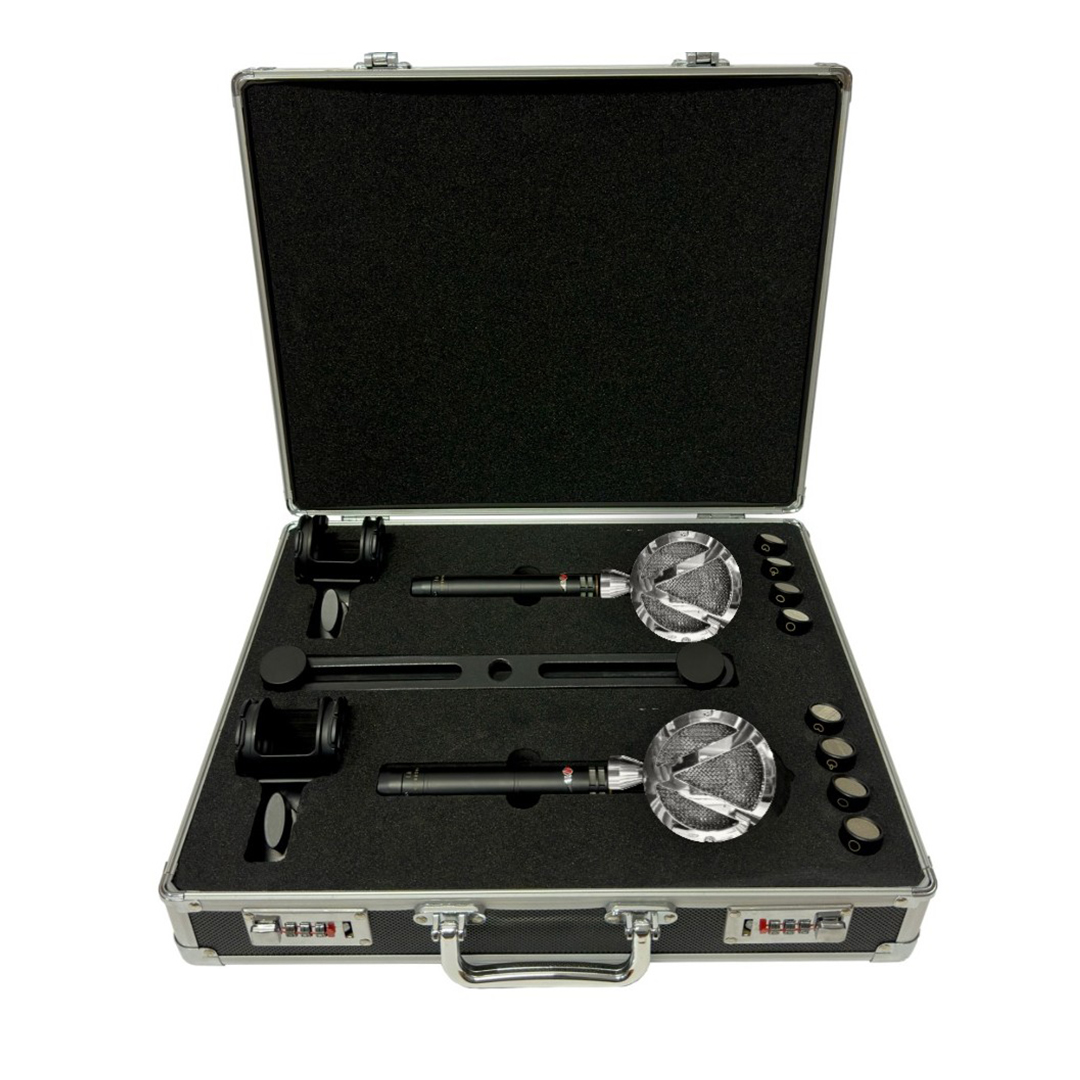

• Locking aluminum storage case with custom-cut foam — houses both V1S microphones, all eight capsules, the LOLLI capsule head, and accessories; custom-cut high-density foam padding; locking hardware for transport security
• Designed in the USA — assembled and QC’d in Hatfield, Pennsylvania — every V1S kit undergoes stringent audio and visual testing before hand-packing; designed by a team with more than 65 years of combined experience, vetted by award-winning recording engineers and producers; five-year warranty

Specifications

• Note: Specifications below apply to the V1S gen2 microphones. V34C Gen2 LOLLI capsule head specifications are listed on the LOLLI product page.
• Transducer Type: Condenser
• Capsule Housing Size: 0.87″ / 22mm
• Diaphragm Size: 0.63″ / 16mm
• Diaphragm Thickness: 4µm gold-sputtered Mylar
• Electronics Type: Solid-state; transformer-balanced output
• Output Impedance: 200Ω
• Max SPL: ≥136 dB (0.5% THD @ 1kHz)
• Frequency Response: 20Hz–20kHz
• Equivalent Noise Level: <13 dB(A)
• S/N Ratio: ≥81 dB (Ref. 1Pa, A-weighted)
• Sensitivity: –39 dB @ 1Pa
• Output Connector: XLR 3-pin male; gold-plated
• High-Pass Filter: None
• Pad: None
• Phantom Power: 48V
• Finish: Matte Black
• Weight (microphone): 4.79 oz (136 g)
• Weight (in case): 5.6 lbs (2.54 kg)
• Dimensions (microphone): 5.59″ L × 0.87″ Ø (142mm L × 22mm Ø)
• Dimensions (case): 15.83″ L × 13.5″ W × 3.94″ H (402mm × 343mm × 100mm)
• Assembly: Designed USA; assembled and 100% QC in Hatfield, Pennsylvania
• Warranty: 5 years

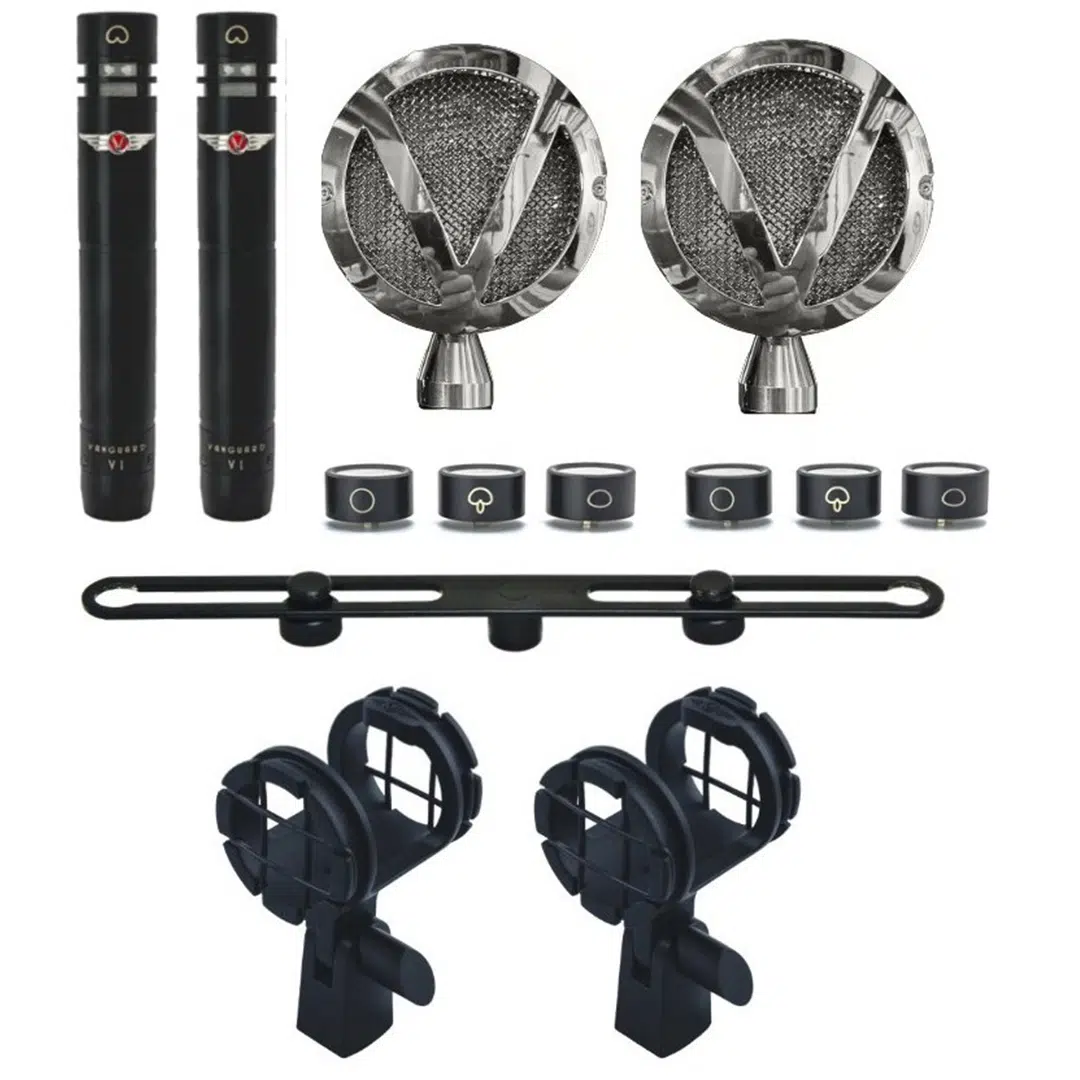

• Included: 2× V1S gen2 microphones; 8× 22mm capsules (2 each: cardioid, hypercardioid, omnidirectional, wide cardioid); 2× VSSM shockmounts; stereo microphone bar; V34C Gen2 LOLLI capsule head; locking aluminum storage case
