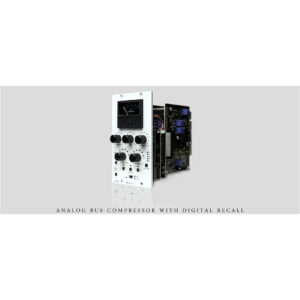

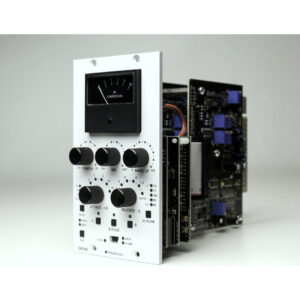

WesAudio _DIONE

The legendary sound of the stereo bus compressor has been a cornerstone of countless recordings for over 40 years. Often referred to as “mixbus glue,” this compression style has set the industry standard. We proudly present _DIONE — a fully analog, iconic VCA compressor, now enhanced with digital recall for seamless workflow integration.

Main Features

• 100% analog device with +24dBu of headroom, powered by VCA THAT 2181.
• Mix knob for parallel compression.
• THD (Total Harmonic Distortion) with two modes: Medium & High.
• Sidechain filters: 3 high-pass filters at 60Hz, 90Hz, and 150Hz, and 2 tilt filters with special curve designs.
• Four ratio settings: 1.5:1 and 2:1 for gentle mixbus processing, and 4:1 and 10:1 for a variety of applications.
• 500 Series and ng500 Series (e.g., _TITAN) compatible.
• Total Recall and plugin control compatible with most DAWs.
• Analog automation in DAW for seamless integration.

ANALOG SOUND, DIGITAL CONTROL

_DIONE is 100% analog device with +24dBu of headroom.

VCA THAT 2181

The first and most important feature of _DIONE is that it’s a 100% analog device with +24dBu of headroom. Despite its digital control capabilities, the signal path remains fully analog, delivering the authentic VCA compression sound you expect.

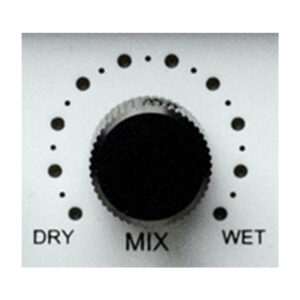

Mix Knob for Parallel Compression

With the MIX knob, achieving parallel compression with _DIONE has never been easier! You can fine-tune the balance between the dry and compressed signals effortlessly. Plus, _DIONE allows you to automate the MIX setting directly in your DAW for precise control.

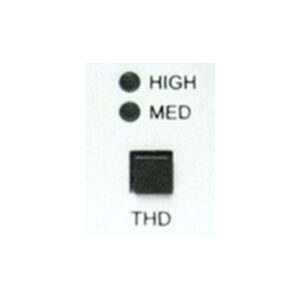

THD – Add Color to Your Mixes

THD (Total Harmonic Distortion) introduces harmonic saturation to your signal, enriching it with warm, analog color. This adds depth and character, giving your audio a fuller, more musical tone.

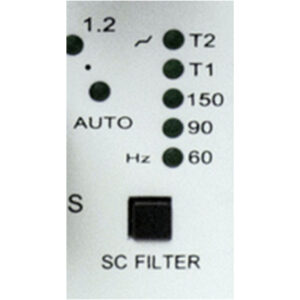

Sidechain Filters

_DIONE’s sidechain filter functionality allows you to modify the signal going into the compressor’s detector. It includes three high-pass filters at 60Hz, 90Hz, and 150Hz, along with two tilt filters featuring specially designed “curve” filters for enhanced control.

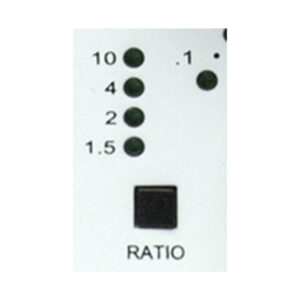

Four Ratio Settings

_DIONE offers selectable ratio settings of 1.5:1 and 2:1 for gentle mixbus processing, and 4:1 and 10:1 for a wide range of compression applications. These options provide flexibility to suit various mixing and mastering needs.

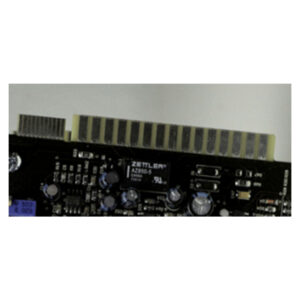

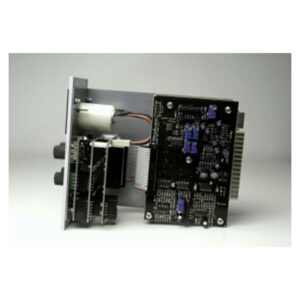

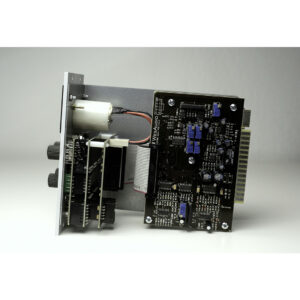

500 Series and ng500 Series Compatible

Regardless of its additional features, _DIONE is fully compatible with the 500 series standard. Digital capabilities can be activated through the front panel mini USB socket for seamless integration.

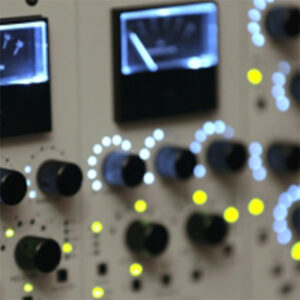

Hardware A/B

Even when using _DIONE purely as an analog signal processor, you can effortlessly switch between two parallel settings at the press of a button, offering seamless flexibility and control.

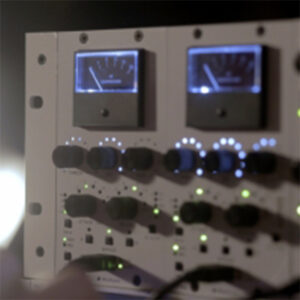

Total Recall and Plugin Control

With full plugin control via VST2, VST3, AU, AAX, and AAX DSP, _DIONE ensures compatibility with most major DAWs. This deep integration with your DAW will revolutionize your workflow, allowing seamless control and recall of settings for maximum efficiency.

Analog Automation

Just draw automation lines in your DAW, and your analog device will follow seamlessly. Additionally, you can use the three touch-sensitive encoders to record automation directly to your DAW for precise control.

Main Features Summary:

• 100% analog device with +24dBu of headroom, powered by VCA THAT 2181.
• Mix knob for parallel compression.
• THD (Total Harmonic Distortion) with two modes: Medium & High.
• Sidechain filters: 3 high-pass filters at 60Hz, 90Hz, and 150Hz, and 2 tilt filters with special curve designs.
• Four ratio settings: 1.5:1 and 2:1 for gentle mixbus processing, and 4:1 and 10:1 for a variety of applications.
• 500 Series and ng500 Series (e.g., _TITAN) compatible.
• Total Recall and plugin control compatible with most DAWs.
• Analog automation in DAW for seamless integration.

Other Features:

• Fully digitally controlled and isolated analog circuit.
• Digital recall available through the front panel mini USB socket or within the _TITAN chassis.
• Digital sidechain: Send any track from your DAW as a sidechain signal to the compressor by configuring the sidechain in the connected plugin.
• Three touch-sensitive encoders allow for automation recording of specific parameters (Threshold, Mix, Make Up) in your DAW.
• True bypass ensures signal integrity.
• Accurate analog GR meter with precise simulation in the plugin.
• Free software and firmware upgrades.

• Frequency response: 20Hz-20kHz (0.1dB)
• THD+N (WET): 0.008% (1kHz,0dBu)
• THD+N (DRY): 0.004% (1kHz,0dBu)
• Input impedance: 10kohm
• Output impedance: < 100ohm
• Max gain: 21dB
• Crosstalk: < -90dB
• Attack: 0.1, 0.3, 1, 3, 10, 30 (ms)
• Release: 0.1, 0.3, 0.6, 0.9, 1.2, Auto (ms)
• Ratio: 1.5, 2.4, 10
• SC Filter: 60, 90, 150, T1, T2
• THD (MID switch): 1%
• THD (HIGH switch): 4%
• Power consumption: 70mA/+16V and 50mA/-16V (per slot)
• Unit dimensions: 76x133x158 mm
• Box dimensions: 105x162x234 mm
• Unit weight: 0.6 kg
• Box weight: 0.8 kg
• Warranty: 2 years
