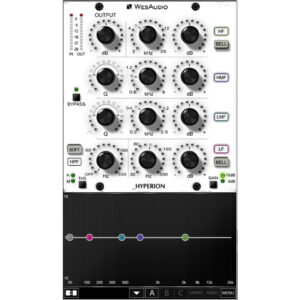

WesAudio _Hyperion

_Hyperion is a fully analog parametric EQ offering +24dBu of headroom, boasting innovative features not found in other processors on the market. Its advanced design utilizes 15 VCAs per channel, ensuring nearly noiseless parameter adjustments while maintaining a highly musical sound. As part of the NG500 series, the Hyperion integrates total recall functionality, accessible via the front panel USB socket or through the Titan chassis.

Main Features

• +24dBu headroom for superior dynamic range.
• Operates in Stereo, Dual Mono, or Mid-Side modes for flexible applications.
• 4-band EQ with switchable gain ranges, offering 5dB or 15dB of boost or cut per band.
• High-pass filter (HPF) with 12dB/Oct or 6dB/Oct slopes for precise low-end control.
• Each band has an independent bypass switch for quick, isolated adjustments.
• Noiseless parameter changes, thanks to a highly efficient VCA design.
• Features proprietary THD control for adjustable harmonic distortion.
• Instant recall with flexible DAW or live plug-in control.
• 12 touch-sensitive encoders enable real-time automation recording.
• True bypass option to preserve signal integrity.
• In/Out metering with clip detection for accurate monitoring.
• A/B compare function for quick comparisons between settings.

ANALOG SOUND, DIGITAL CONTROL

_HYPERION is a fully analog device with +24 dBu of headroom.

Innovative Hardware Circuit

_Hyperion is a fully analog device with +24 dBu of headroom. Its innovative design incorporates 18 VCAs per channel, ensuring precise control and minimal noise for superior audio performance.

4-BAND EQ

A 4-band EQ with selectable gain ranges, offering 5dB or 15dB of boost or cut per band:

• High band: 2kHz to 25kHz, selectable between bell or shelf modes.
• High-Mid band: 600Hz to 8kHz with full Q control for precise adjustments.
• Low-Mid band: 200Hz to 2.5kHz, also featuring full Q control.
• Low band: 30Hz to 350Hz, with options for bell or shelf filtering.

Stereo/Dual Mono/Mid-Side Operation Modes

_HYPERION can operate in three distinct modes, including Mid-Side (MS), making it an ideal solution for a wide range of applications.

High Pass Filter

HPF with selectable slopes of 12dB/Oct or 6dB/Oct.

Each Band Features its Own Bypass Switch

Each band on the _Hyperion can be bypassed independently, making it easier than ever to experiment with new sounds and compare adjustments quickly.

THD – Add Color to Your Mixes

Total Harmonic Distortion (THD), allows you to introduce analog warmth and saturation to your signal, adding a beautiful richness and musical character that enhances the overall sound quality.

Instant Recall with Flexible DAW/Live Plug-In Control

Stereo plugin: Handles all modes of operation – Stereo, Dual Mono, and Mid-Side.
Mono plugin: Two separate instances can connect to the same hardware, allowing independent channel management.
IN/OUT metering: Includes clip detection for precise monitoring.
Flexible parametric EQ GUI: Designed for intuitive control and visual feedback.
Plugin formats: Available in AAX, AAX DSP, VST3, VST2, and AU for broad compatibility.

Main Features Summary:

• +24dBu headroom for high-quality audio processing.
• Supports Stereo, Dual Mono, and Mid-Side operation modes for flexible application.
• 4-Band EQ with switchable gain ranges of 5dB or 15dB boost/cut per band.
• HPF with selectable slopes of 12dB/Oct or 6dB/Oct.
• Each band has its own Bypass switch for independent control.
• Noiseless parameter changes ensure smooth transitions.
• Proprietary THD implementation for analog warmth and harmonic control.
• Flexible DAW/Live plug-in control with instant recall capability.
• 12 touch-sensitive encoders for real-time automation recording.
• True bypass function for signal integrity.
• In and OUT metering with clip detection.
• A/B compare feature for quick comparisons between settings.

Other Features:

• High band: 2kHz to 25kHz, selectable between bell or shelf modes.
• High-Mid band: 600Hz to 8kHz with full Q control for precise adjustments.
• Low-Mid band: 200Hz to 2.5kHz, also featuring full Q control.
• Low band: 30Hz to 350Hz, with options for bell or shelf filtering.

• Frequency response: 10Hz-150kHz (-2dB)
• THD+N all bands gain “0”: 0.03% (1kHz,0dBu)
• THD+N +15dB band boost: <0.15% (1kHz,0dBu)
• Input impedance: 10kohm
• Output impedance: < 100ohm
• Max signal level: +24dBu
• Crosstalk: < -100dB
• THD (MID switch): 1%
• THD (HIGH switch): 2.5%
• Power consumption: 150mA per rail
• Unit dimensions: 76x133x158 mm
• Box dimensions: 105x162x234 mm
• Unit weight: 0.7 kg
• Box weight: 0.9 kg
• Warranty: 2 years
