WesAudio _Mimas

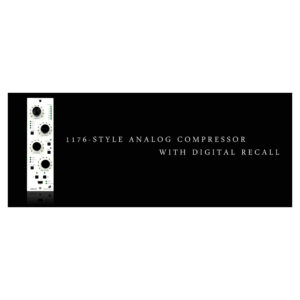

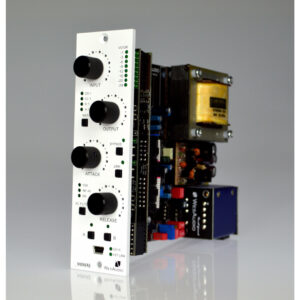

The WesAudio _Mimas is a revolutionary 1176-style analog compressor with digital recall, combining the legendary FET design with the latest features, including digital automation and control. Designed for professionals, this 500-series module provides a seamless blend of classic analog sound with the modern convenience of total recall.

Key Features

• Carnhill Transformers – The foundation of its sound with fully balanced (IN/OUT) analog design offering +24dBu of headroom.

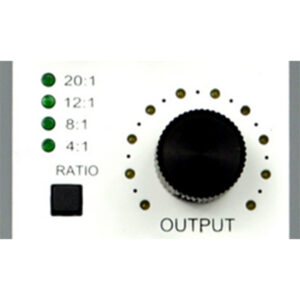

• Four Ratio Settings – Select from 4:1, 8:1, 12:1, 20:1, or the famous “All Buttons In” mode for aggressive compression.

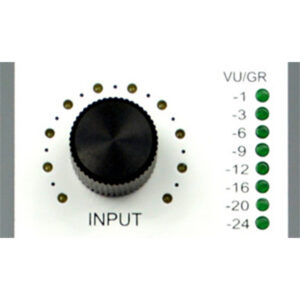

• Saturation Mode – One knob allows you to add color and character to your tracks without using compression.

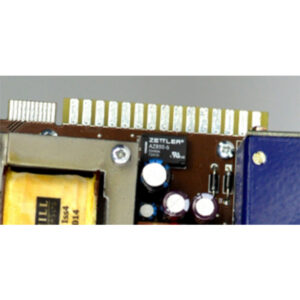

• 500 Series and ng500 Series Compatible – Works seamlessly with the _TITAN frame, allowing full control via USB/Ethernet.

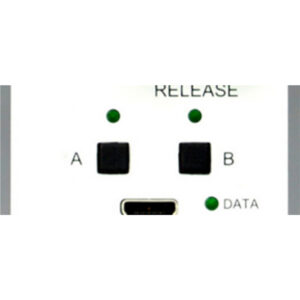

• Hardware A/B – Quickly switch between two parallel settings with a simple button press.
• Total Recall and Plugin Control – Complete integration with major DAWs (VST2/VST3/AU/AAX/AAX DSP) for total recall of all parameters.
• Analog Automation – Use automation within your DAW to control the analog compressor for different sections of your song.

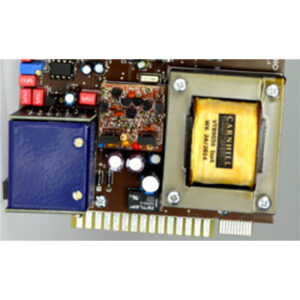

• Interstage Carnhill Transformers – Adding to the unique sound of _Mimas.

Analog Sound, Digital Control

The _Mimas provides the unmistakable sound of analog compression while offering full digital control. This digitally controlled analog circuit ensures precision and repeatability, making it ideal for modern workflows.

Other Features

• True Bypass
• Selectable VU (in/out) / GR meter (switch accessible via plugin)
• Free software and firmware upgrades
• 4 touch-sensitive encoders for real-time DAW automation
• Digital sidechain support – send any track from your DAW as a sidechain signal to the compressor
• Dedicated stereo plugin to manage two devices simultaneously

• Attack Time: 20us – 800us
• Release Time: 50ms – 1100ms
• Compression Ratio: 4:1, 8:1, 12:1, 20:1, All Buttons In Mode
• SC High Pass Filter: 60, 90, 150Hz
• Output Impedance: 600Ω
• Frequency Response: 20Hz to 20kHz (+/- 1dB)
• Signal to Noise Ratio (SNR): >83dB
• Power Consumption: 3W (100mA/+16V and 60mA/-16V)
• Unit Dimensions: 38x133x145 mm
• Unit Weight: 0.95 kg
• Box Dimensions: 105x162x234 mm
• Box Weight: 1.2 kg
• Warranty: 2 years
