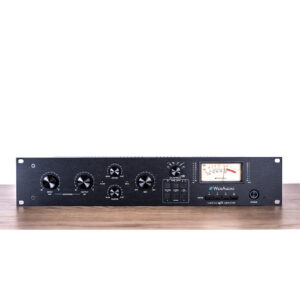

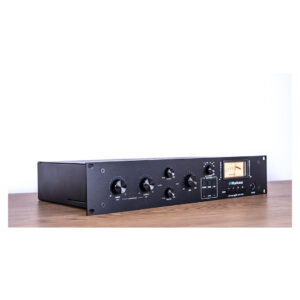

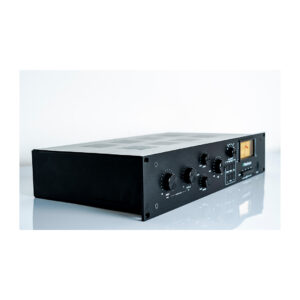

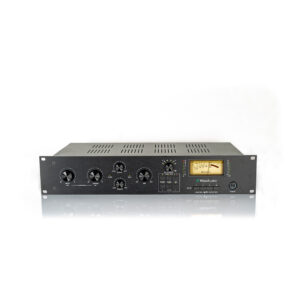

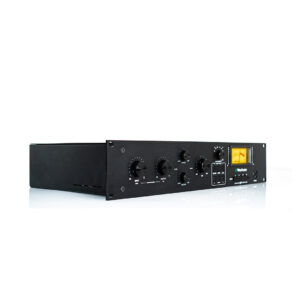

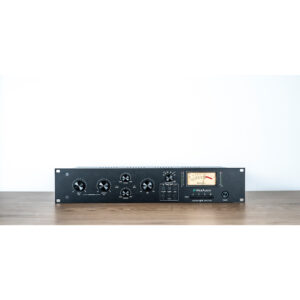

WesAudio ng76

The WesAudio ng76 is a next-generation FET compressor with digital recall and automation, designed to bring classic 1176-style compression into the modern studio workflow. This fully analog processor offers lightning-fast compression with seamless DAW integration, providing the best of both analog sound and digital control.

Key Features

• 100% Analog FET Compressor – Fully analog processing unit with +24dBu of headroom, delivering the distinct compression sound known from countless hit records.

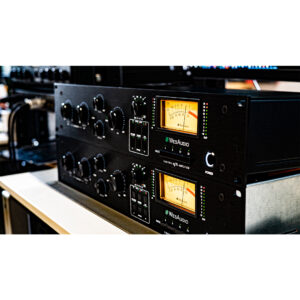

• True Stereo Operation – Link two mono channels for true stereo compression with the included dedicated software and cables.
• MIX Knob – Allows for parallel compression and blending of saturation, offering precise control over your signal.
• Carnhill Transformers – Both input and output stages feature Carnhill transformers for vintage warmth and sonic richness.

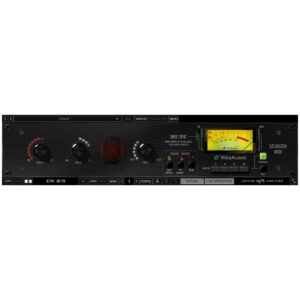

• Saturation Mode – Add harmonic content by engaging the FET circuit for saturation and clipping effects.
• Selectable Input Stage – Choose between Vintage (transformer-balanced) or Modern (electronically balanced) input modes for two unique tonal characteristics.
• Sidechain EQ Sections – Independent high-pass and high-shelf filters provide additional control over the compressed signal.
• Hardware A/B – Easily compare two independent settings with the push of a button.

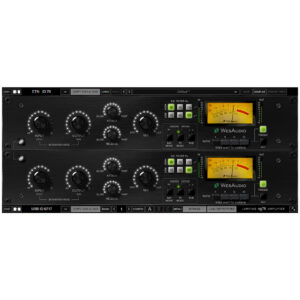

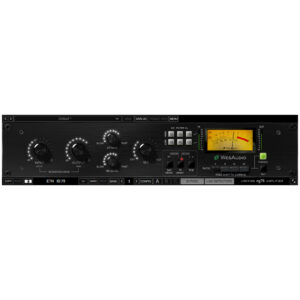

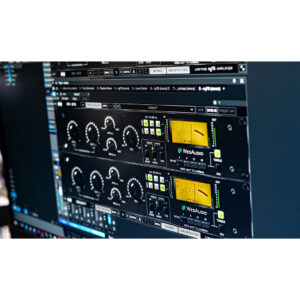

• Total Recall and Plugin Control – Full plugin control via VST2, VST3, AU, AAX, and AAX DSP, ensuring compatibility with all major DAWs.
• Analog Automation – Control the ng76’s analog settings dynamically through your DAW’s automation features.

Analog Sound, Digital Control

The ng76 delivers 100% analog compression with digital control for ultimate flexibility. With its +24dBu headroom, this FET compressor offers the classic punchy sound while allowing seamless integration into your DAW for automation and recall.

Other Features

• Classic FET compressor controls: INPUT, OUTPUT, ATTACK, RELEASE
• Four ratio settings: 4:1, 8:1, 12:1, 20:1, including ALL BUTTON MODE
• Selectable VU Gain Reduction Meter for classic monitoring
• Precise Input and Output metering
• THD (Total Harmonic Distortion) with LOW and HIGH settings for additional harmonic content

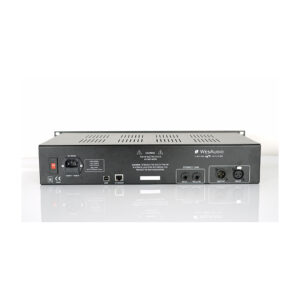

• USB and Ethernet connectivity for DAW integration
• True Bypass
• Balanced output and input

• Attack Time: 20us – 800us
• Release Time: 50ms – 1100ms
• Compression Ratio: 4:1, 8:1, 12:1, 20:1, All Button Mode
• SC High Pass Filter: 60Hz, 90Hz, 150Hz
• SC High Shelf Filter: 2kHz, 5kHz, 10kHz
• Output Impedance: 50Ω
• Frequency Response: 20Hz – 20kHz (+/- 1dB)
• Signal to Noise Ratio (SNR): >83dB
• Maximum Signal Level: +24dBu
• THD+N Min: 0.2%
• Noise Floor: -95dBu
• Power Consumption: 8W
• Unit Dimensions: 88x483x235 mm
• Unit Weight: 4.8 kg
• Box Dimensions: 274x550x382 mm
• Box Weight: 6.7 kg
• Case Rack: 2U
• Warranty: 2 years
