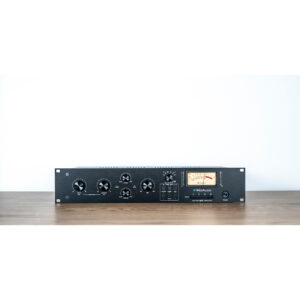

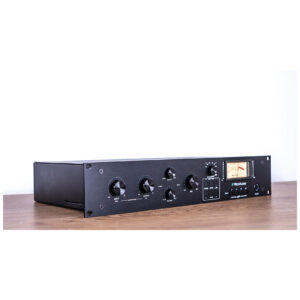

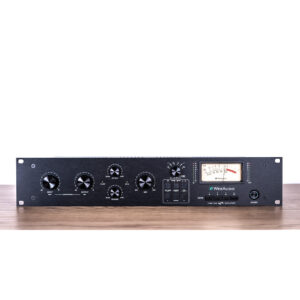

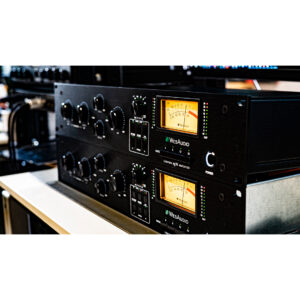

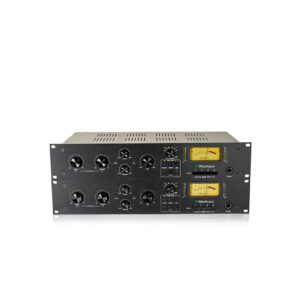

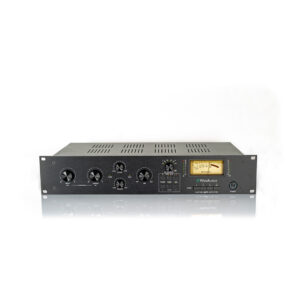

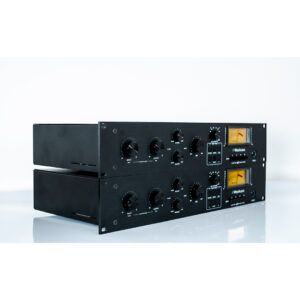

WesAudio ng76 Pair

The WesAudio ng76 Pair offers the ultimate in stereo FET compression with modern enhancements for professional audio engineers. As part of the ng500 series, this pair of fully analog FET compressors delivers legendary 1176-style compression, along with cutting-edge digital recall and DAW integration. Whether used for stereo compression or as two independent mono channels, the ng76 Pair provides lightning-fast compression, Carnhill transformer warmth, and flexible control for dynamic processing in any recording or mixing environment.

Main Features

• 100% analog FET compressor with +24dBu of headroom.
• Classic lightning-fast compression style based on the WesAudio Beta76 design.
• Full Total Recall and plugin control, compatible with most DAWs.
• MIX knob for parallel compression.
• Carnhill transformers for both input and output stages, adding analog warmth.
• Saturation mode, based on the FET circuit, to add sonic richness and harmonic content.
• Supports all ratio combinations, including ALL BUTTON MODE for more aggressive compression.
• Modern and Vintage modes to accommodate two 1176 revisions (F & G).
• Two independent sidechain EQ circuits for versatile signal control.
• THD control with LOW and HIGH settings for analog harmonic distortion.

ANALOG SOUND, DIGITAL CONTROL

The WesAudio ng76 Pair is a 100% analog unit, providing true analog processing with +24dBu of headroom for maximum signal clarity. Even with its digital control features, the analog signal path ensures the warmth and character that professionals rely on from classic FET compressors.

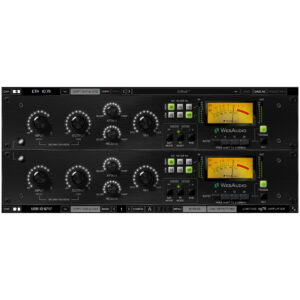

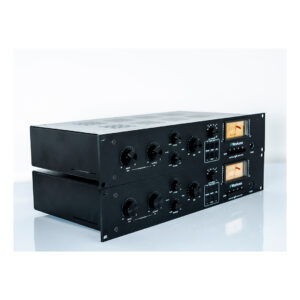

True Stereo Operation

With the ng76 Pair, you can link two mono compressors for true stereo compression via dedicated software. Link the compression detectors using included special cables to ensure fully synchronized stereo processing. Alternatively, use the units in dual mono mode with all parameters linked across both channels for independent signal control.

Parallel Compression with the MIX Knob

The ng76 Pair features a MIX knob, making parallel compression simple and effective. Blend the dry and compressed signals to achieve the perfect sonic balance. Automate the MIX setting within your DAW for dynamic changes across song sections.

THD – Total Harmonic Distortion

THD (Total Harmonic Distortion) lets you add vintage analog saturation to your signal. With LOW and HIGH settings, you can precisely control the level of harmonic distortion, adding warmth, depth, and character to your mixes.

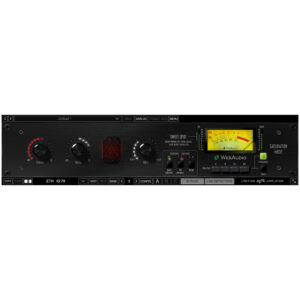

Saturation Mode

The ng76 Pair includes a saturation mode based on the FET circuit, which allows static compression for unique sonic effects. Drive the signal harder to generate rich harmonic content and transform the compressor into a saturation box or clipper.

Selectable Input Stage

Switch between Modern and Vintage modes to replicate two different revisions of the 1176 compressor:

• Vintage Mode: Transformer-balanced input for a more traditional, warm analog sound.
• Modern Mode: Electronically balanced input for a cleaner, transparent sound.

Sidechain EQ Sections

The ng76 Pair features two independent sidechain EQ sections with high-pass filters at 60Hz, 90Hz, and 150Hz. Additionally, it includes high shelf filters at 2kHz, 5kHz, and 10kHz to tame high frequencies and sculpt mid-high range content for precise control over your mix.

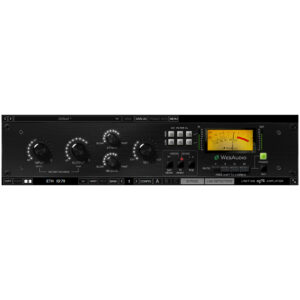

Total Recall and Plugin Control

Along with its analog compression, the ng76 Pair offers TOTAL RECALL and full plugin control, making it compatible with VST2, VST3, AU, AAX, and AAX DSP formats. Seamless DAW integration means you can instantly recall settings and control all parameters directly from your DAW, optimizing your workflow and production process.

Main Features Summary:

• 100% analog FET compressor with +24dBu of headroom.
• Classic lightning-fast compression style based on the WesAudio Beta76 design.
• Full Total Recall and plugin control, compatible with most DAWs.
• MIX knob for parallel compression.
• Carnhill transformers for both input and output stages.
• Saturation mode for static compression based on the FET circuit.
• Four ratio settings: 4:1, 8:1, 12:1, 20:1, including ALL BUTTON MODE.
• Modern and Vintage modes for two 1176 revisions (F & G).
• Two sidechain EQ sections with high-pass filters and high-shelf filters.
• THD with LOW and HIGH settings for harmonic distortion.

• Attack time: 20 us – 800 us
• Release time: 50 ms – 1100 ms
• Compression ratio: 4:1, 8:1, 12:1, 20:1, All Button Mode
• SC High Pass filter: 60Hz, 90Hz, 150Hz
• SC High Shelf filter: 2KHz, 5KHz, 10kHz
• Output impedance: 50 ohm
• Frequency response: 20Hz to 20kHz (+/- 1dB)
• Signal to noise ratio (SNR): SNR >83dB
• Max signal level: +24dBu
• THD+N (MIN): 0.2%
• Power consumption: 8W
