WesAudio _Phoebe

Experience the most iconic style of microphone preamplifiers now seamlessly integrated into a modern digital workflow. Featuring a dual-amp vintage design with cutting-edge features, we proudly introduce _PHOEBE—an NG500 fully analog, Class A microphone, line, and instrument preamplifier with digital recall.

The audio signal is processed purely through analog components, ensuring warm, pristine sound with the ease of digital recall.

Main Features

• 100% analog microphone/line preamp with +28dBu of headroom.
• Class A fully analog design, inspired by famous British dual amp topology.
• Microphone gain up to 75dB.
• Carnhill Transformers for input and output.
• Output signal metering with clip detection on the front panel.
• Phantom power and phase invert control.
• Switchable impedance input: 1200/300Ohm.
• All settings fully manageable via the WesAudio GCon DAW plug-in.
• 15dB OUTPUT PAD: passive output attenuation circuit in 1 dB steps (after the output transformer).

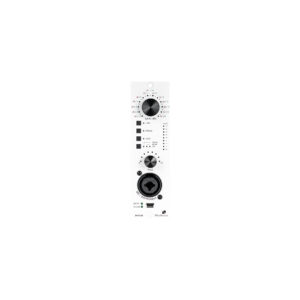

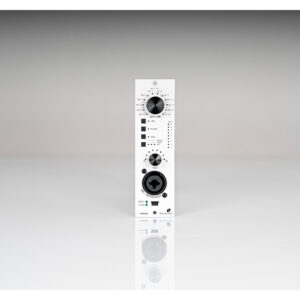

• Front panel XLR/TS socket supports HiZ instrument input (TS), line input (XLR), and microphone input (XLR).
• Recallable signal source: choose between back XLR socket or front panel XLR/TS socket.

ANALOG SOUND, DIGITAL CONTROL

Class A microphone/line/instrument preamplifier with digital recall, offering +28 dBu of analog headroom, with a fully transformer-balanced unit inspired by the renowned British dual amp topology.

Input and Output Transformers

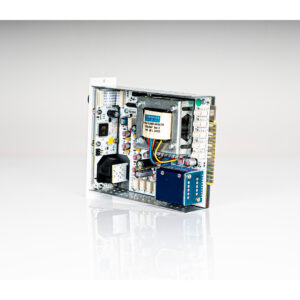

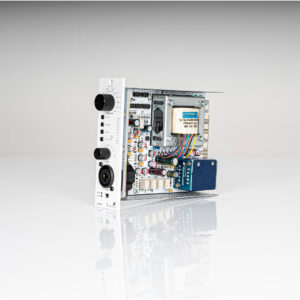

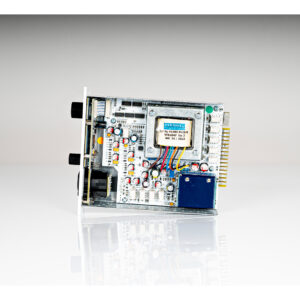

_PHOEBE features Carnhill transformers for both input and output, ensuring high-quality signal processing with vintage warmth and clarity.

Crank Up the Gain!

Microphone gain up to 75dB—ideal for low-level microphones requiring significant amplification.

Recallable Signal Source

Switch between two connected sources (back XLR socket or front panel XLR/TS socket) via the DAW plug-in for instant recall and flexibility.

Output Passive Attenuation up to 15dB!

A passive output attenuation circuit in 1 dB steps, located after the output transformer, provides precise level control for professional audio processing.

Switchable Input Impedance

Switch between 1200 ohms and 300 ohms impedance to ensure optimal integration with vintage microphones, enhancing performance and sound quality.

Precise Signal Metering

Integrated with the DAW plug-in, output signal metering and CLIP detection provide accurate monitoring and control.

Full Remote Control

Place your preamplifier wherever you want, and manage all settings effortlessly from your DAW or plugin interface, including full automation control.

Main Features Summary

• 100% analog microphone/line preamp with +28dBu of headroom.
• Class A fully analog design, inspired by famous British dual amp topology.
• Microphone gain up to 75dB.
• Carnhill Transformers for input and output.
• Output signal metering with clip detection on the front panel.
• Phantom power and phase invert control.
• Switchable impedance input: 1200/300Ohm.
• All settings fully manageable via the WesAudio GCon DAW plug-in.
• 15dB OUTPUT PAD: passive output attenuation circuit in 1 dB steps (after the output transformer).
• Front panel XLR/TS socket supports HiZ instrument input (TS), line input (XLR), and microphone input (XLR).
• Recallable signal source: choose between back XLR socket or front panel XLR/TS socket.
• 500 series and ng500 (e.g. _TITAN) series compatible.
• Total Recall and plugin control compatible with most DAWs.
• Analog automation fully integrated with your DAW for precise control over all analog parameters.

Other Features

• Fully digitally controlled with an isolated analog circuit.
• Digital recall available through the front panel mini USB socket or via _TITAN chassis integration.
• Accurate analog output signal metering with clip detection, along with a precise simulation implemented directly in the plug-in.
• Free software and firmware upgrades.

• Frequency response: +/- 0.5dB 20Hz-20kHz; -3dB at 50kHz
• Distortion: 0.005% at 1kHz at +20dBu output
• Line input impedance: 5.5k ohm bridging
• Microphone input impedance: 300/1200 ohm
• Noise: Unity gain (better than -100dBu) Max gain +75dB (better than -70dBu)
• EIN: Better than -120dB
• Max power consumption: 170mA(+16V); 100mA(-16V)
• Unit dimensions: 38x133x145mm
• Box dimensions: 105x162x234mm
• Unit weight: 1 kg
• Box weight: 1.2 kg
• Warranty: 2 years
