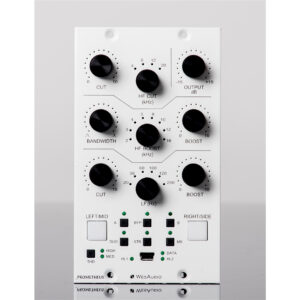

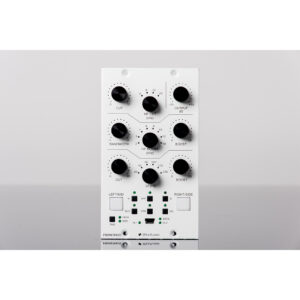

WesAudio _Prometheus

_PROMETHEUS is a fully analog passive EQ with +24dBu of headroom, offering a classic Pultec-style warmth enhanced by modern innovations. Its contemporary design enables instant recall of your timeless analog sound through a highly flexible plugin. Like all ng500 products, _PROMETHEUS integrates seamlessly with your DAW environment via the front panel USB socket or through the _TITAN chassis.

Main Features

• +24dBu headroom for high dynamic range.
• Operates in Stereo, Dual Mono, and Mid/Side modes for flexible audio applications.
• Passive equalizer design based on Pultec-style inductors.
• Analog inductor for classic tone-shaping.
• Proprietary THD implementation for harmonic distortion control.
• Flexible DAW/Live plug-in control with instant recall functionality.
• 6 touch-sensitive encoders for recording automation.
• True bypass for signal integrity.
• In and Out metering with clip detection for accurate monitoring.
• A/B compare feature for quick preset comparisons.

Passive Design, Analog Inductor

_PROMETHEUS features a passive equalizer design based on analog inductors, delivering the rich, musical tone of classic Pultec EQs.

Innovative Design with Fully Analog Circuit

_PROMETHEUS is a fully analog equalizer with +24 dBu of headroom, ensuring your audio maintains a high dynamic range and clarity throughout the signal chain.

Stereo, Dual Mono, and Mid-Side Operation Modes

_PROMETHEUS operates in three distinct modes: Stereo, Dual Mono, and Mid-Side (MS), offering maximum versatility for any audio processing task.

Output Control

Post-EQ output control provides enhanced flexibility, allowing precise adjustments after EQ processing for better signal balance and shaping.

Hardware A/B

Effortlessly switch between two parallel settings at the press of a button, allowing you to compare different EQ configurations instantly.

THD – Add Color to Your Mixes

Total Harmonic Distortion (THD) enhances your signal by introducing subtle analog saturation, adding warmth and musical richness to your audio.

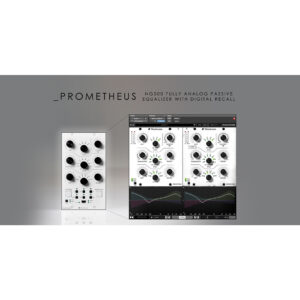

Flexible DAW/Live Plug-in Control for Instant Recall

_PROMETHEUS integrates seamlessly with your DAW via the included plug-in, allowing full control and instant recall of all settings. It offers:

• Stereo plugin that manages all modes of operation – Stereo, Dual Mono, and Mid-Side.
• Mono plugin where two separate instances can connect to the same hardware, managing each channel independently.
• IN/OUT metering with clip detection for precise monitoring.
• Plugin available in AAX, AAX DSP, VST3, VST2, and AU formats.

Main Features Summary

• +24dBu headroom for high dynamic range.
• Operates in Stereo, Dual Mono, and Mid/Side modes for flexible audio applications.
• Passive equalizer design based on Pultec-style inductors.
• Analog inductor for classic tone-shaping.
• Proprietary THD implementation for harmonic distortion control.
• Flexible DAW/Live plug-in control with instant recall functionality.
• 6 touch-sensitive encoders for recording automation.
• True bypass for signal integrity.
• In and Out metering with clip detection for accurate monitoring.
• A/B compare feature for quick preset comparisons.

Other Features

• Low frequency boost/cut: 20Hz, 30Hz, 60Hz, 100Hz, 120Hz, 250Hz.
• High frequency boost: 2kHz, 3kHz, 4kHz, 5kHz, 8kHz, 10kHz, 12kHz, 16kHz.
• High frequency cut: 4kHz, 8kHz, 12kHz, 20kHz.

• Frequency response: 10Hz-150kHz (-2dB)
• THD+N: < 0.01% (1kHz, 0dBu)
• Input impedance: 10kohm
• Output impedance: < 100ohm
• Max signal level: +24dBu
• Crosstalk: < -100dB
• THD (MID switch): 1%
• THD (HIGH switch): 2.5%
• Power consumption: 70mA per rail
• Unit dimensions: 76x133x158 mm
• Box dimensions: 105x162x234 mm
• Unit weight: 0.7 kg
• Box weight: 0.9 kg
• Warranty: 2 years
