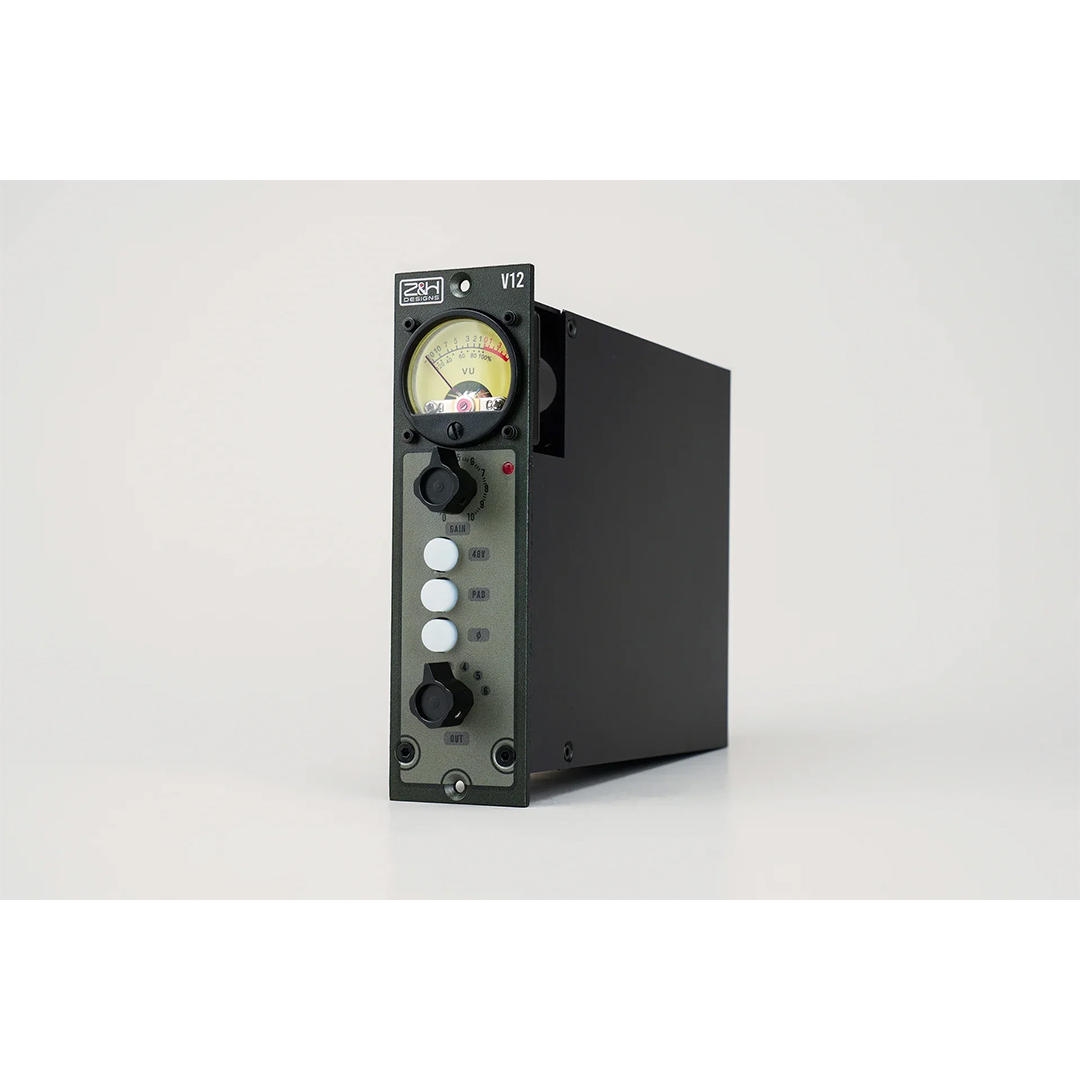

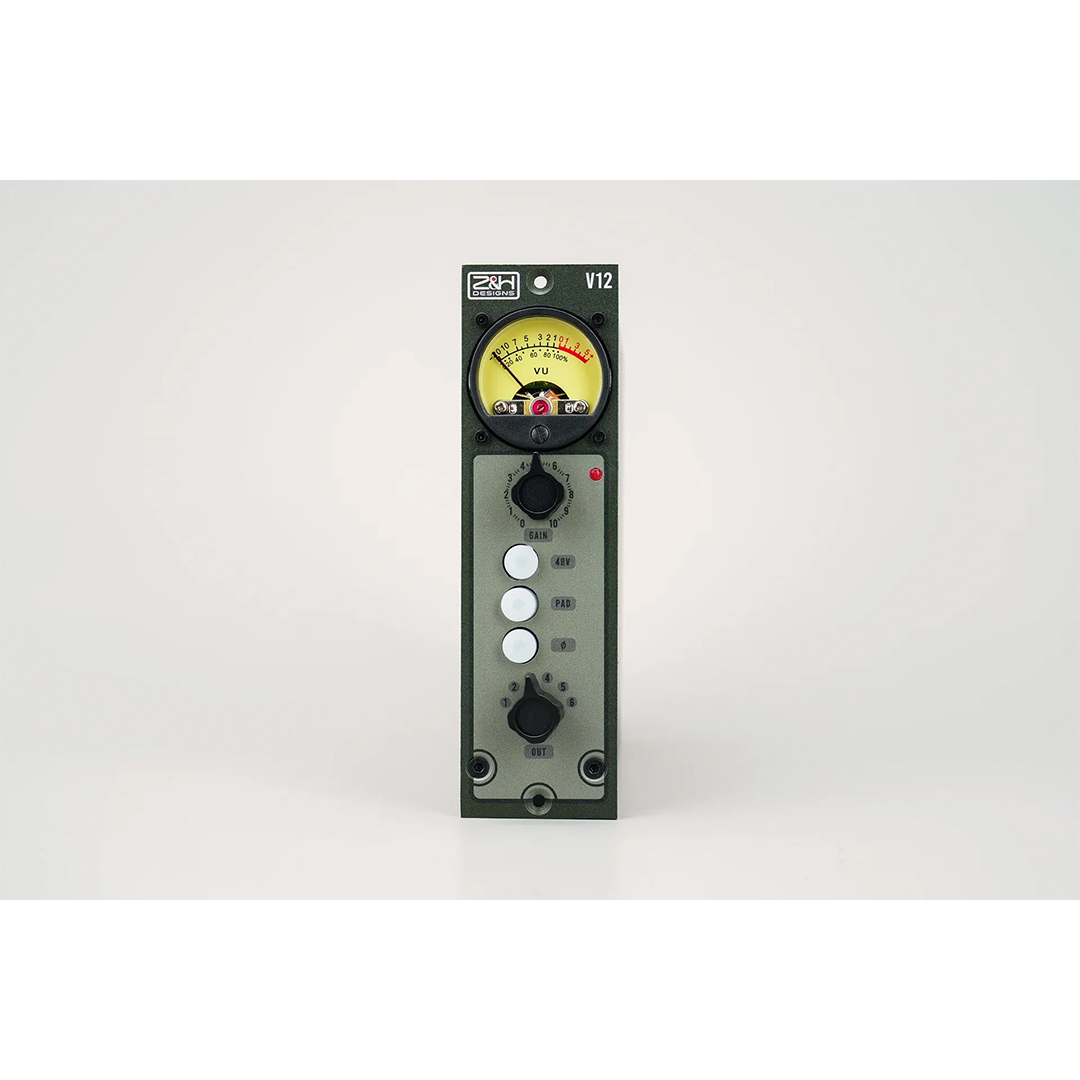

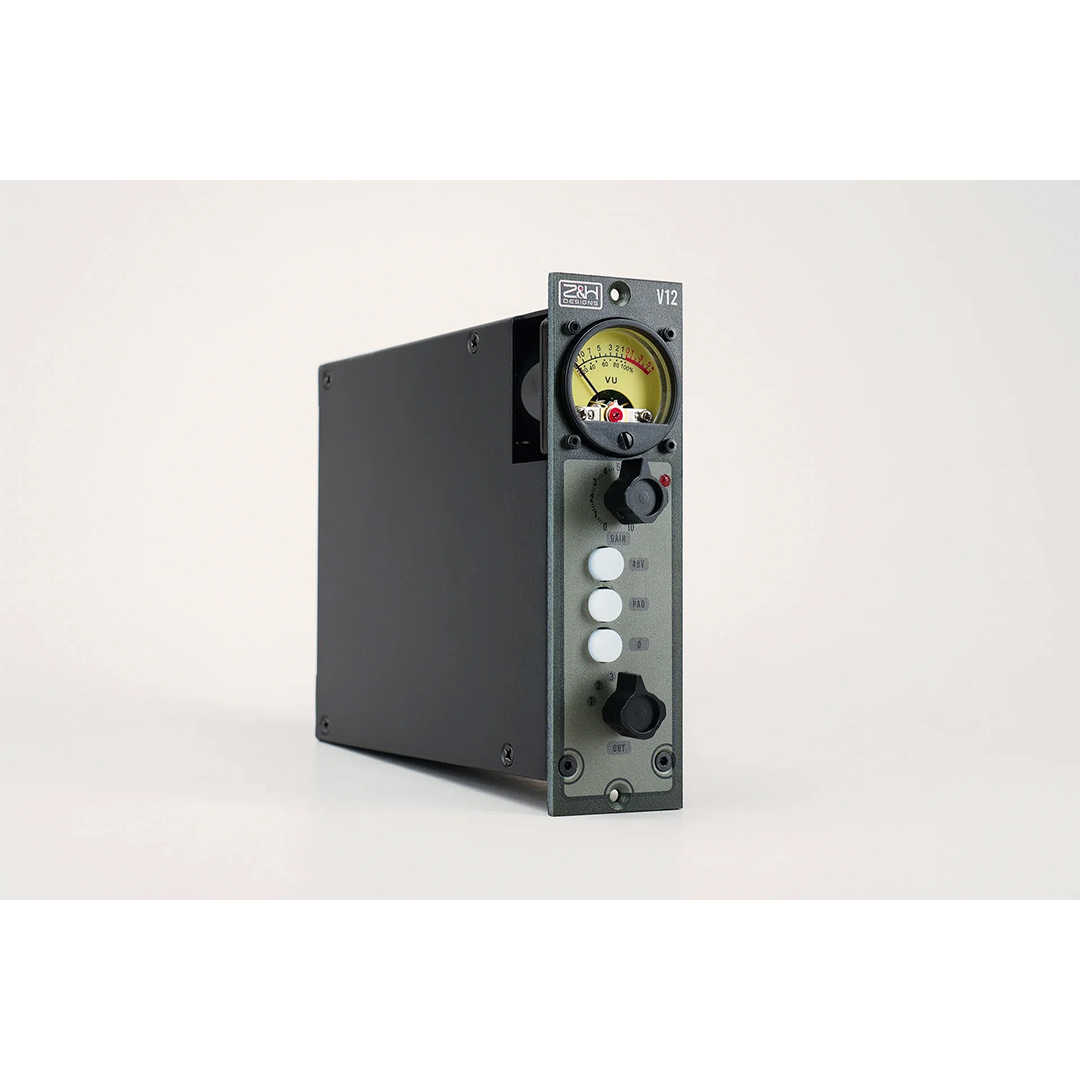

Z&H Designs V12 500 Series Preamp

The Z&H Designs V12 500 Series Preamp is a modern interpretation of classic 1970s American microphone preamp design, built around Z&H’s own hand-crafted discrete op-amp and transformer architecture. Designed to deliver fast transients, forward presence, and a dense, punchy midrange, the V12 brings vintage character with modern precision. Its expressive response and controlled power make it an ideal choice for drums, guitars, and rock-oriented recording applications where impact and attitude matter.

Key Features

• Classic 1970s American-style microphone preamp design.

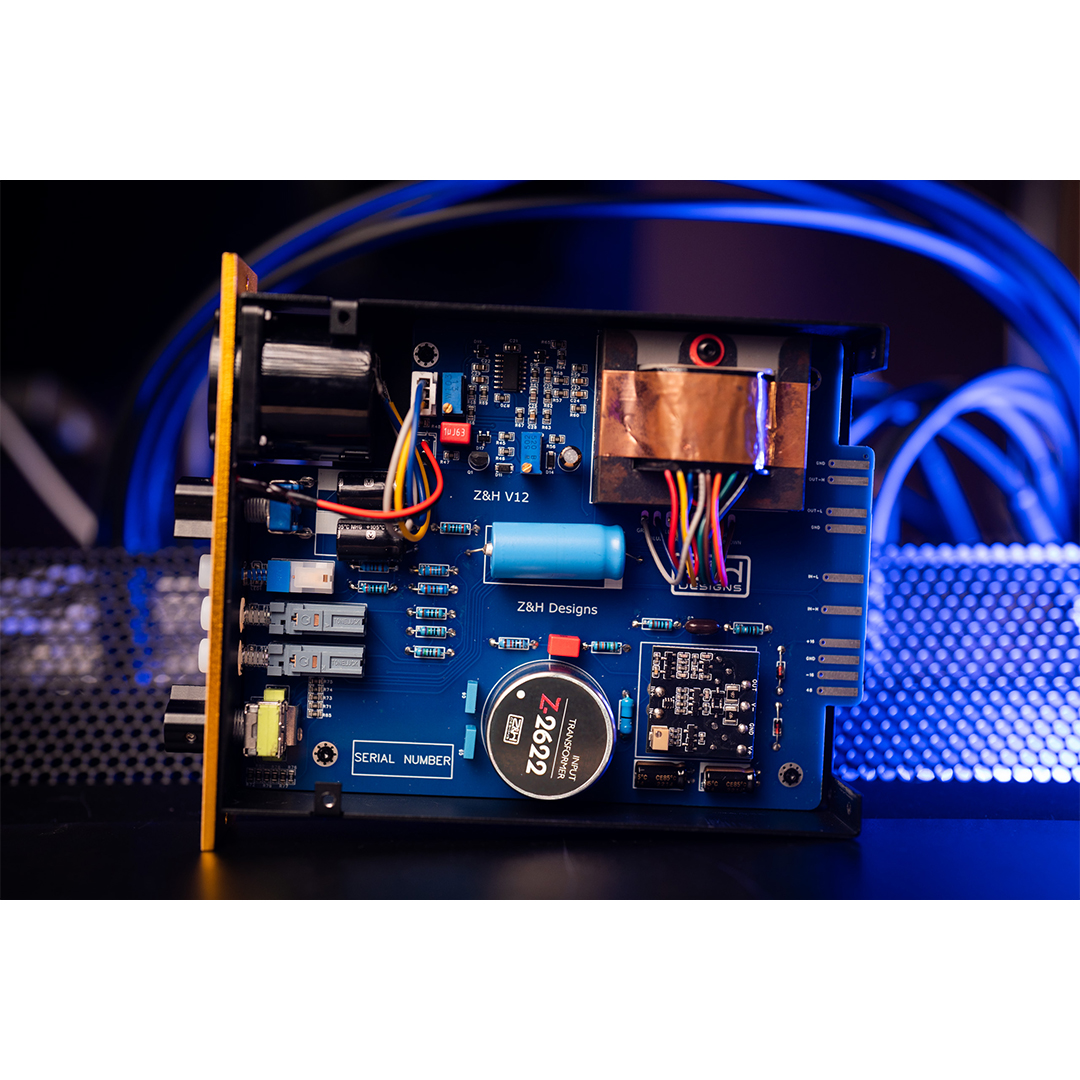

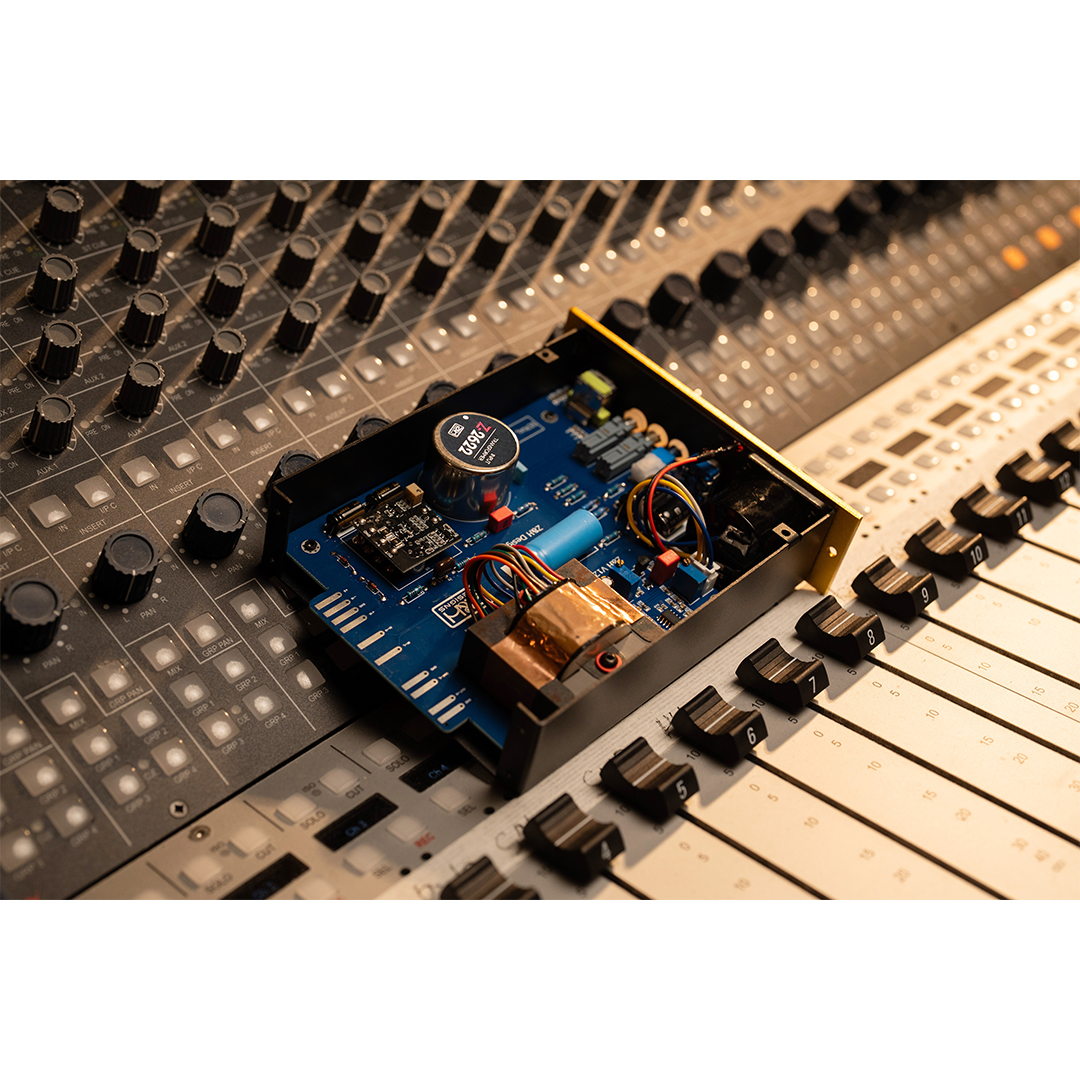

• Z&H hand-built 2520 discrete op-amp and 2503 output transformer.
• Linear stepped gain control for accurate and repeatable settings.
• 6-step output trim for level management and tonal shaping.

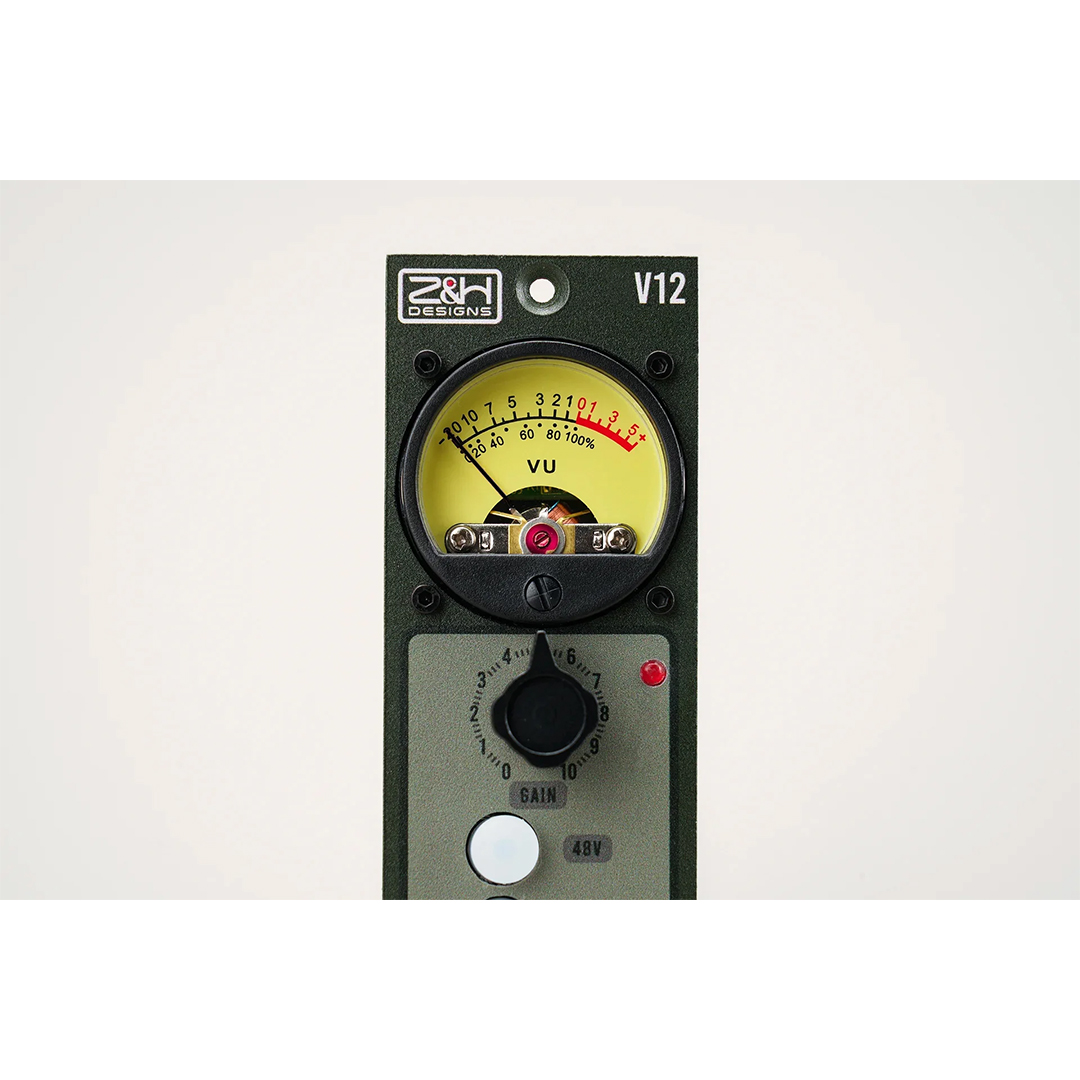

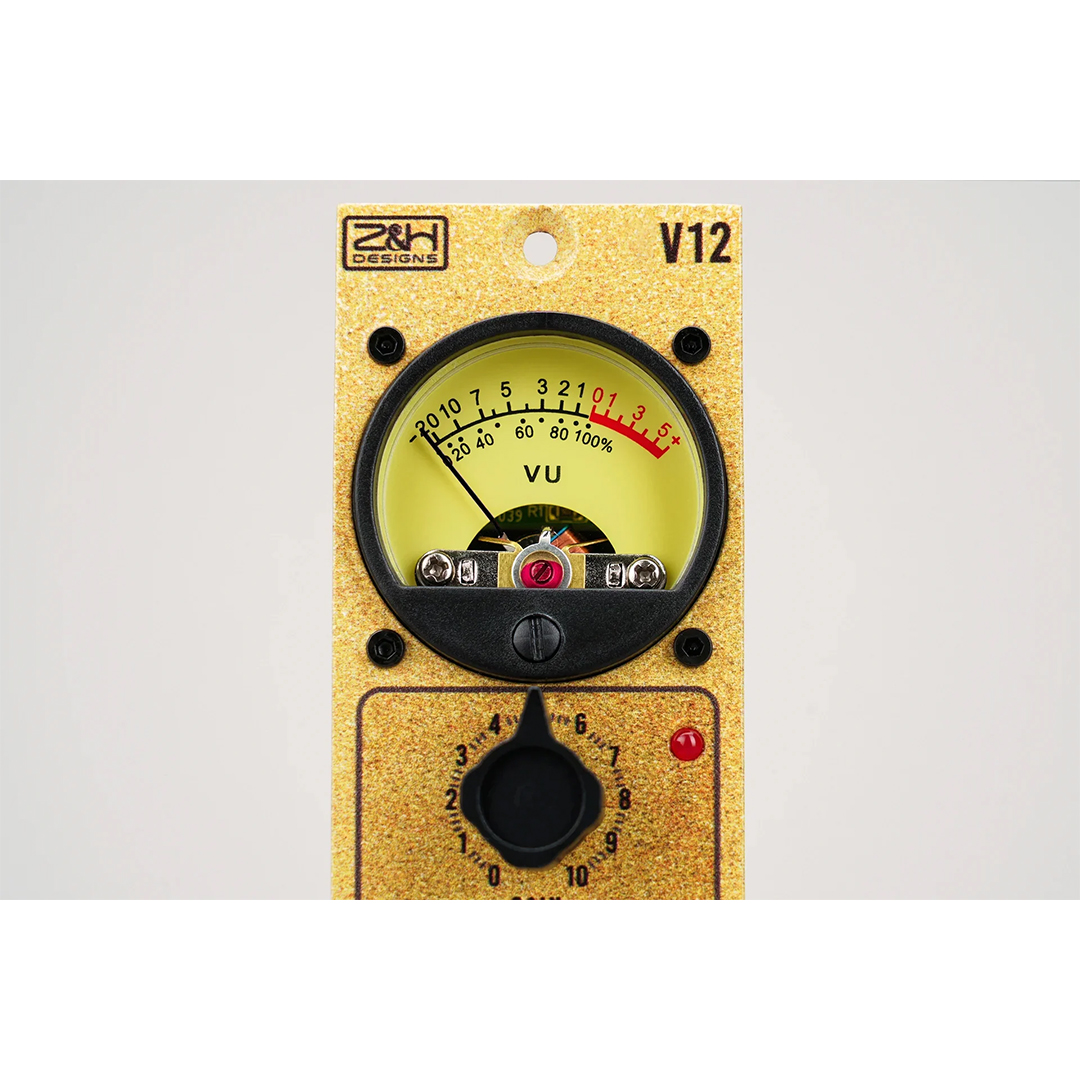

• Vintage-style VU meter for intuitive visual feedback.
• Designed for punchy, forward sound with strong midrange presence.

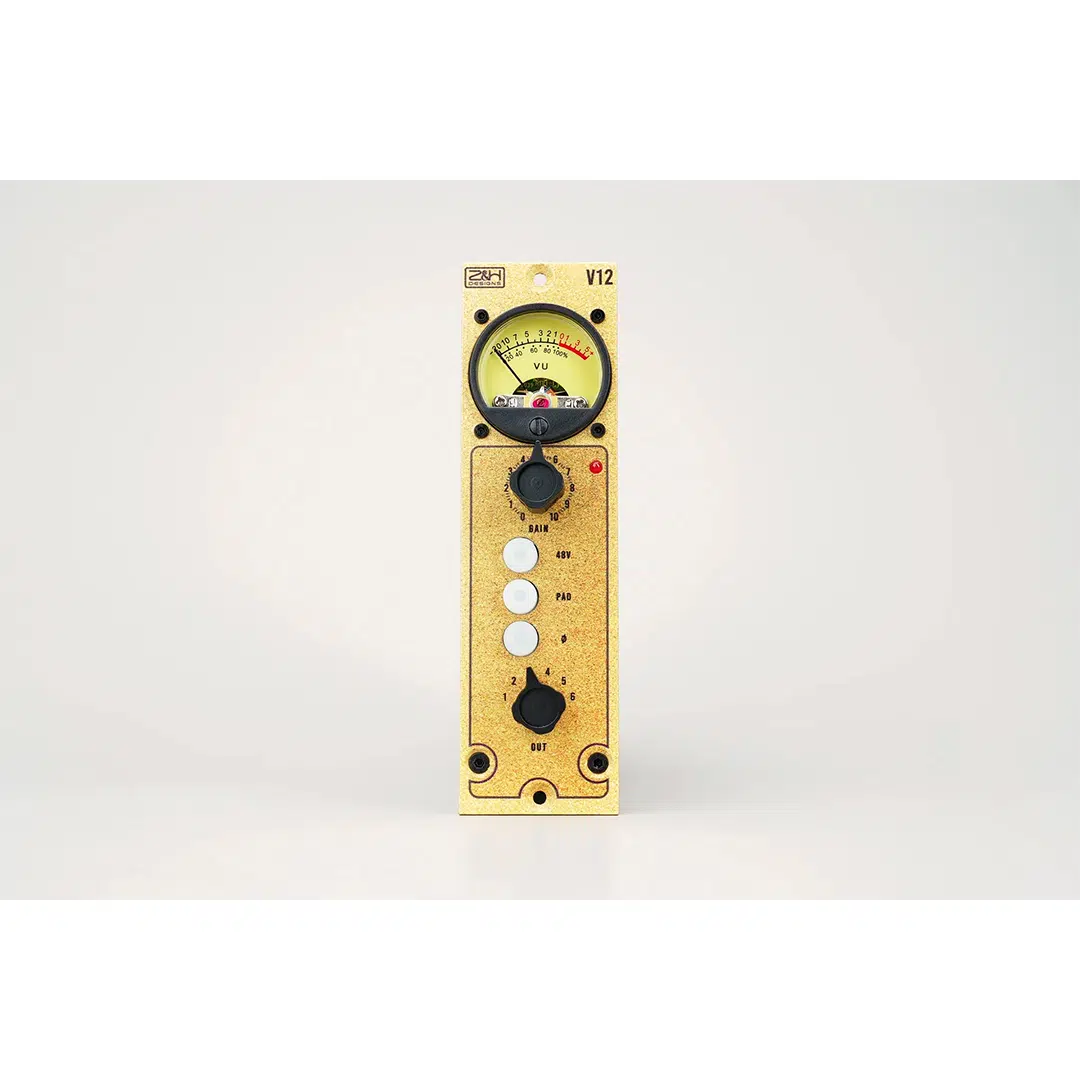

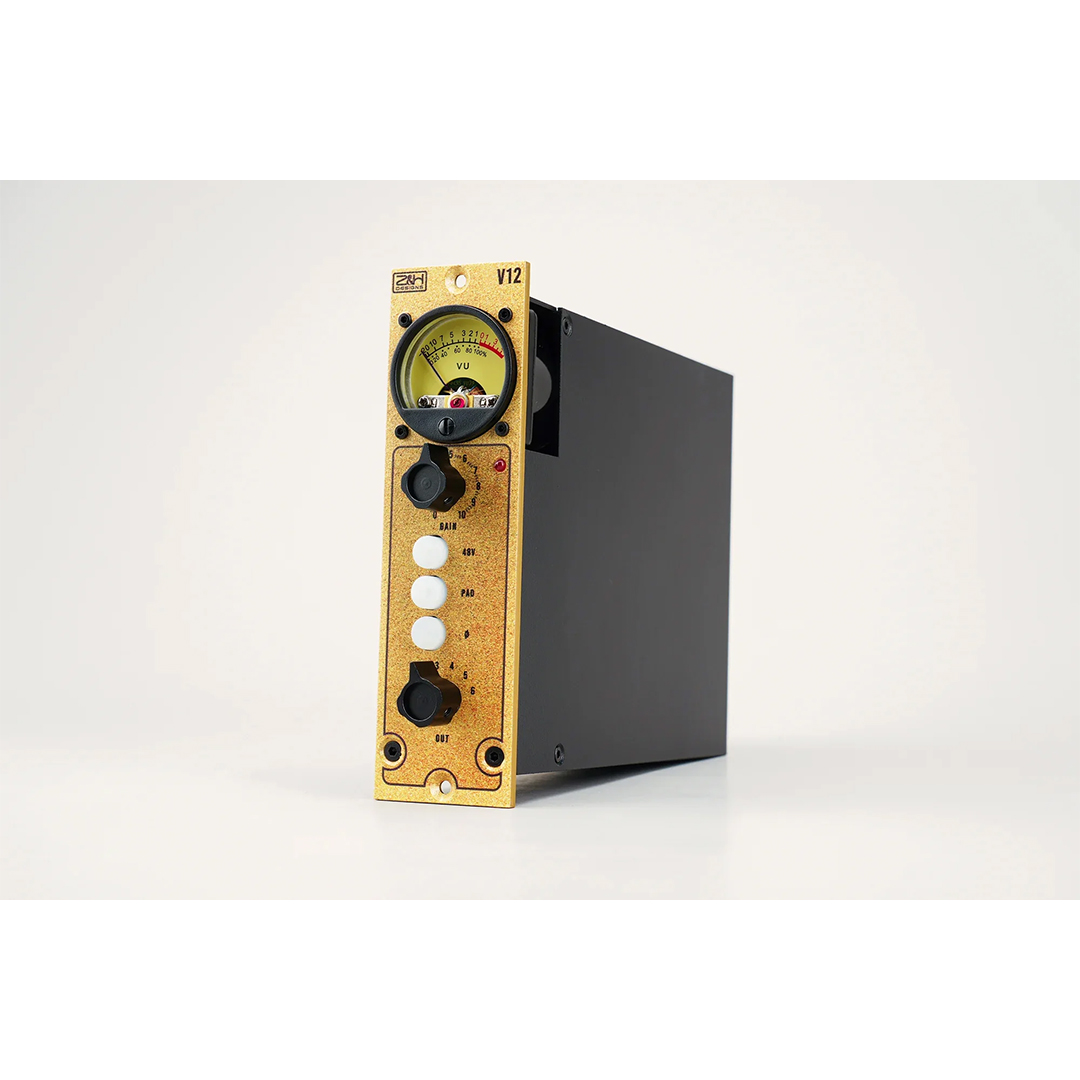

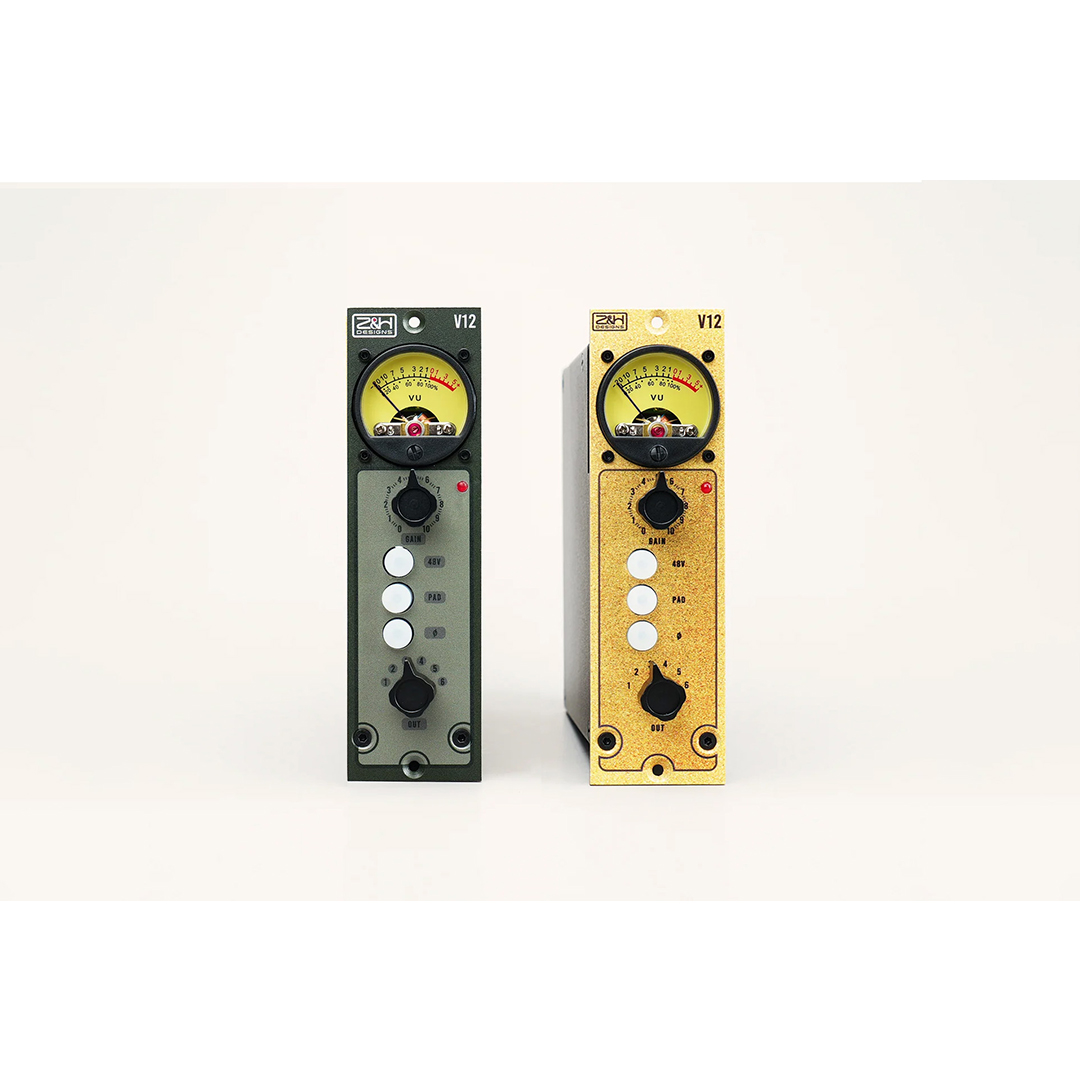

• Special edition versions available.

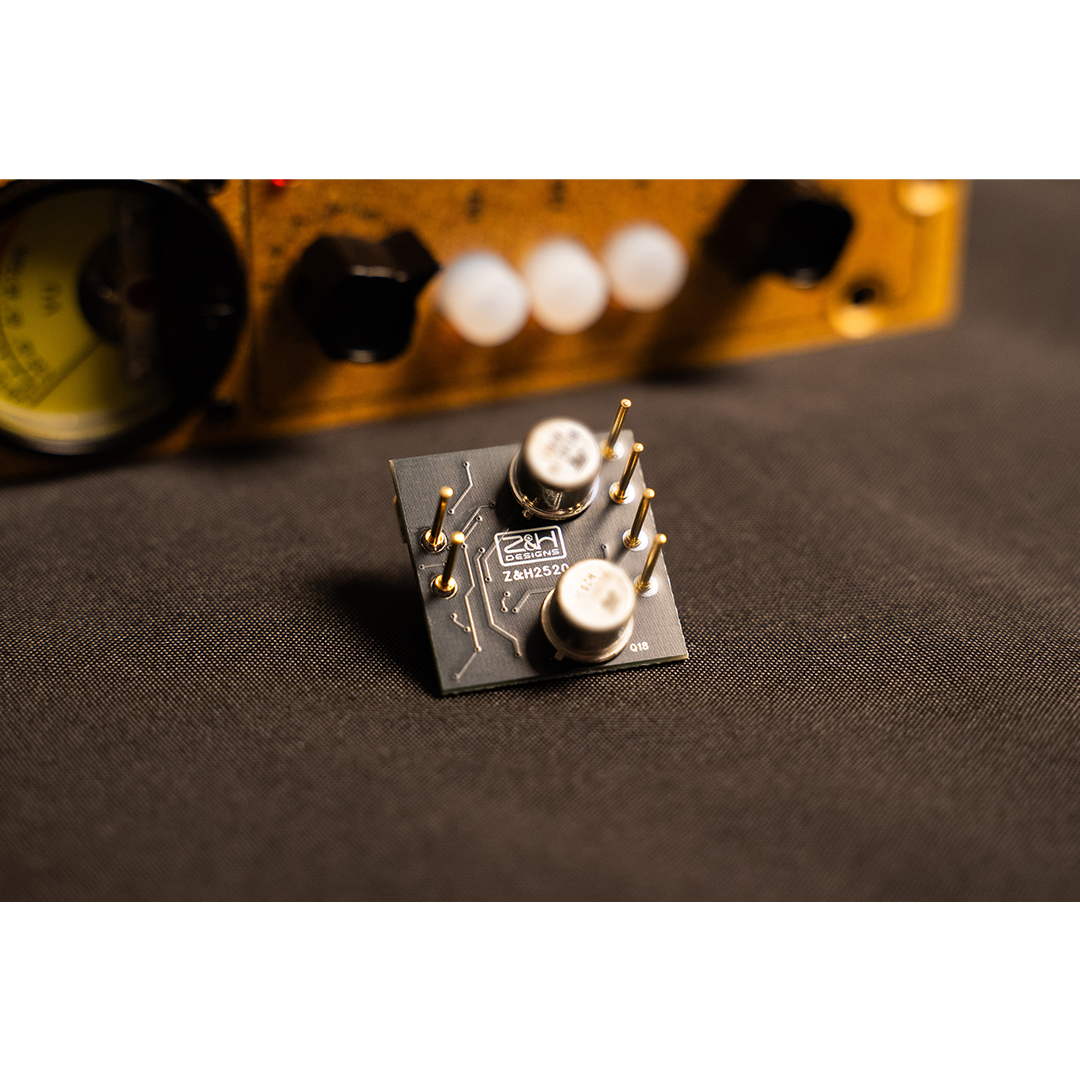

The New-Generation 2520 DOA

• Rebuilt from the ground up in 2025 after extensive analysis of original vintage units.
• Ultra-matched transistors improve noise performance, symmetry, and stability.
• Metal-can output stage delivers stronger drive and cleaner dynamics.
• Designed to outperform common DIY interpretations while honoring the original sound.

Sonic Character

• Sharper transient attack with clean release on drums and percussive sources.
• Dense, solid midrange ideal for vocals and electric guitars.
• Tight, controlled low end with natural decay.
• Smooth, extended high frequencies without grain or harshness.
• Voiced for the “Hit” side of the Z&H sonic philosophy—bold, punchy, and character-forward.

Precision Gain Control

• 21-step gain control delivering up to 69 dB of linear amplification.
• Stepped output attenuator in 4 dB increments for precise level control.
• Peak LED indicator set at +18 dBu for clear headroom reference.
• Maximum output level of +31 dBu ensures ample margin before converter overload.

Build & Quality

• Hand-assembled using boutique-grade components.
• Each unit tested and verified by experienced engineers prior to shipment.
• Built for reliability, consistency, and long-term professional use.

Specifications

• Format: 500 Series microphone preamp
• Gain Range: +31 dB to +69 dB (+11 dB to +44 dB with pad)
• Maximum Input Level: 0 dBu (+20 dBu with pad)
• Maximum Output Level: +31 dBu
• Peak LED Threshold: +18 dBu output
• Output Impedance: <75 Ω, transformer balanced
• Frequency Response: ±0.5 dB, 20 Hz – 40 kHz
