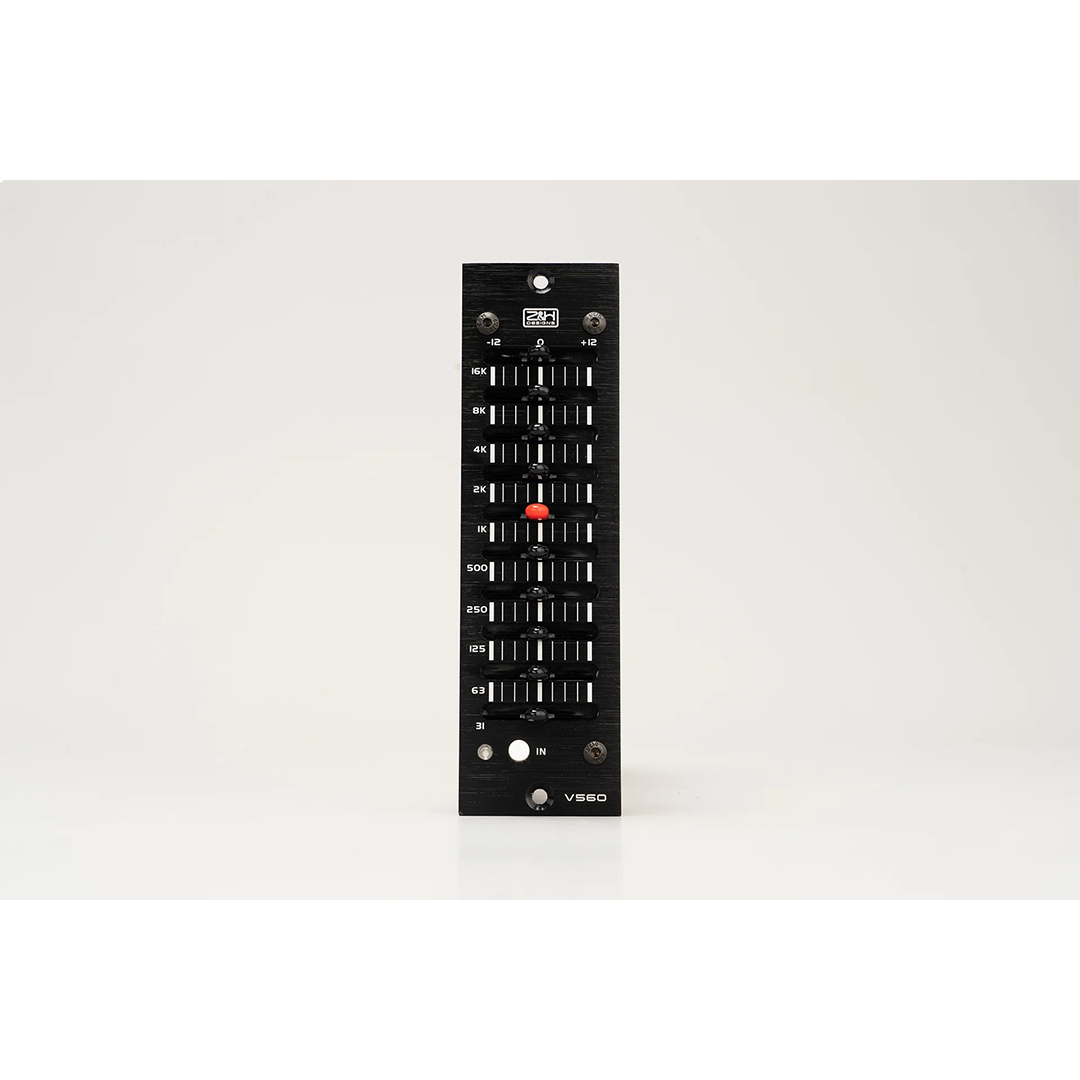

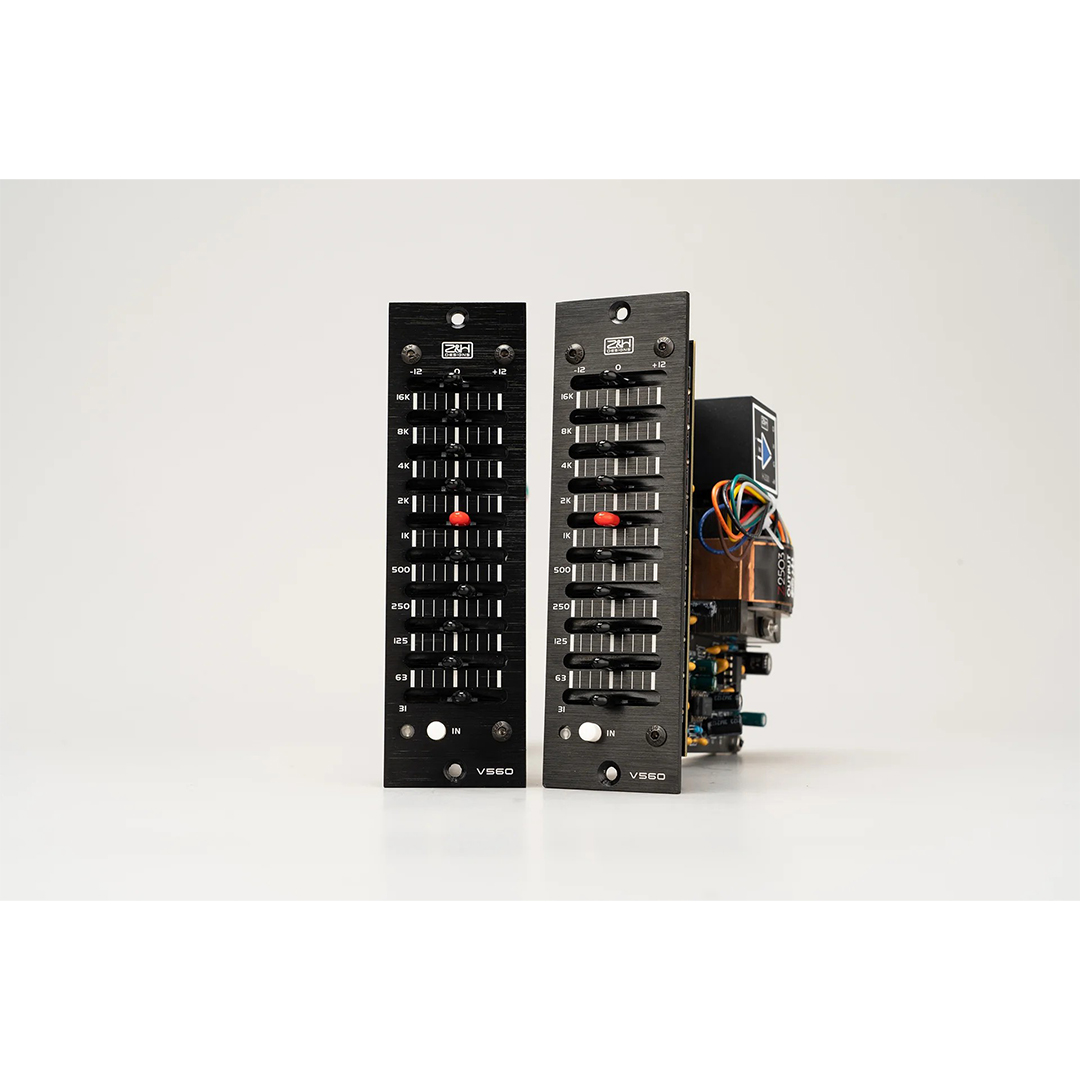

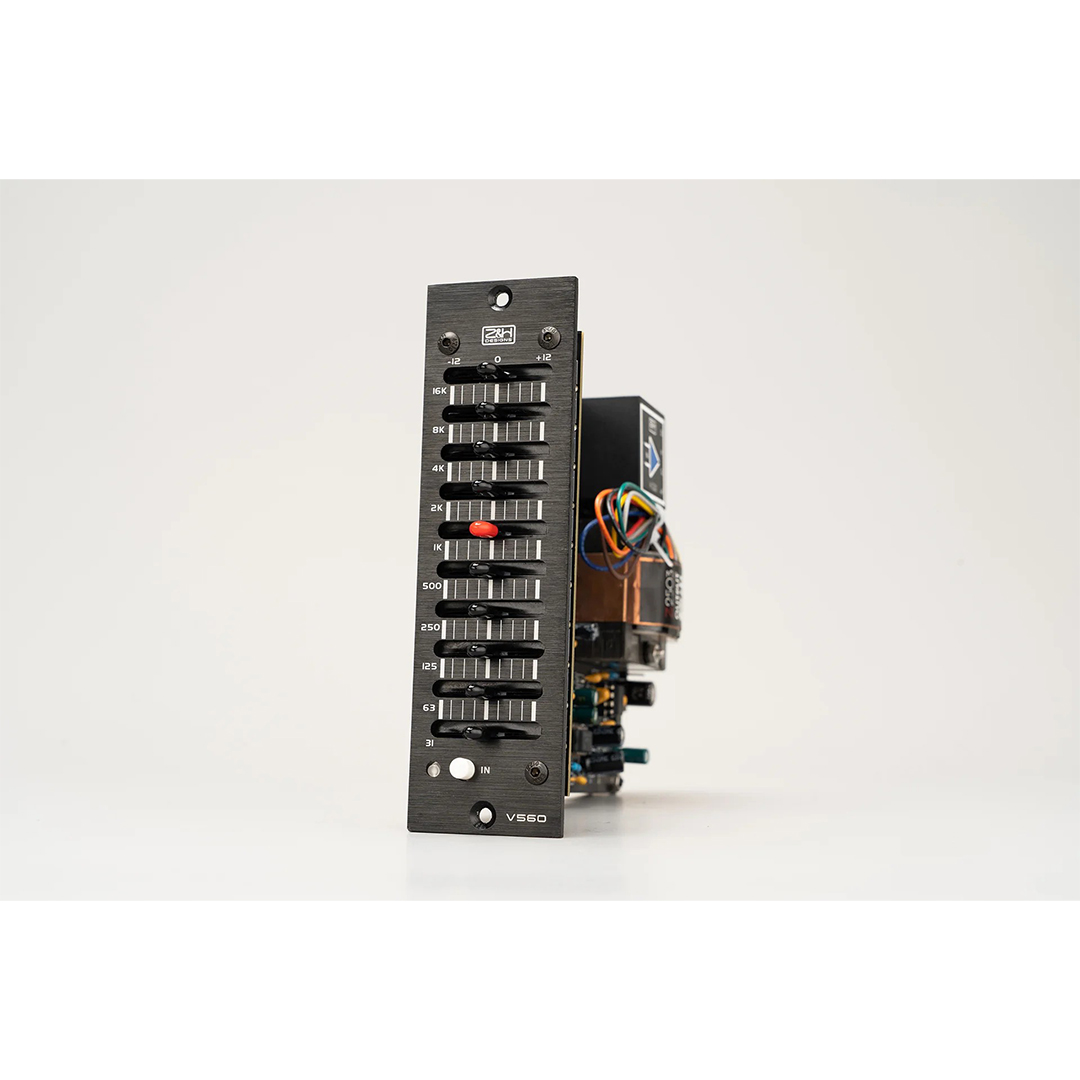

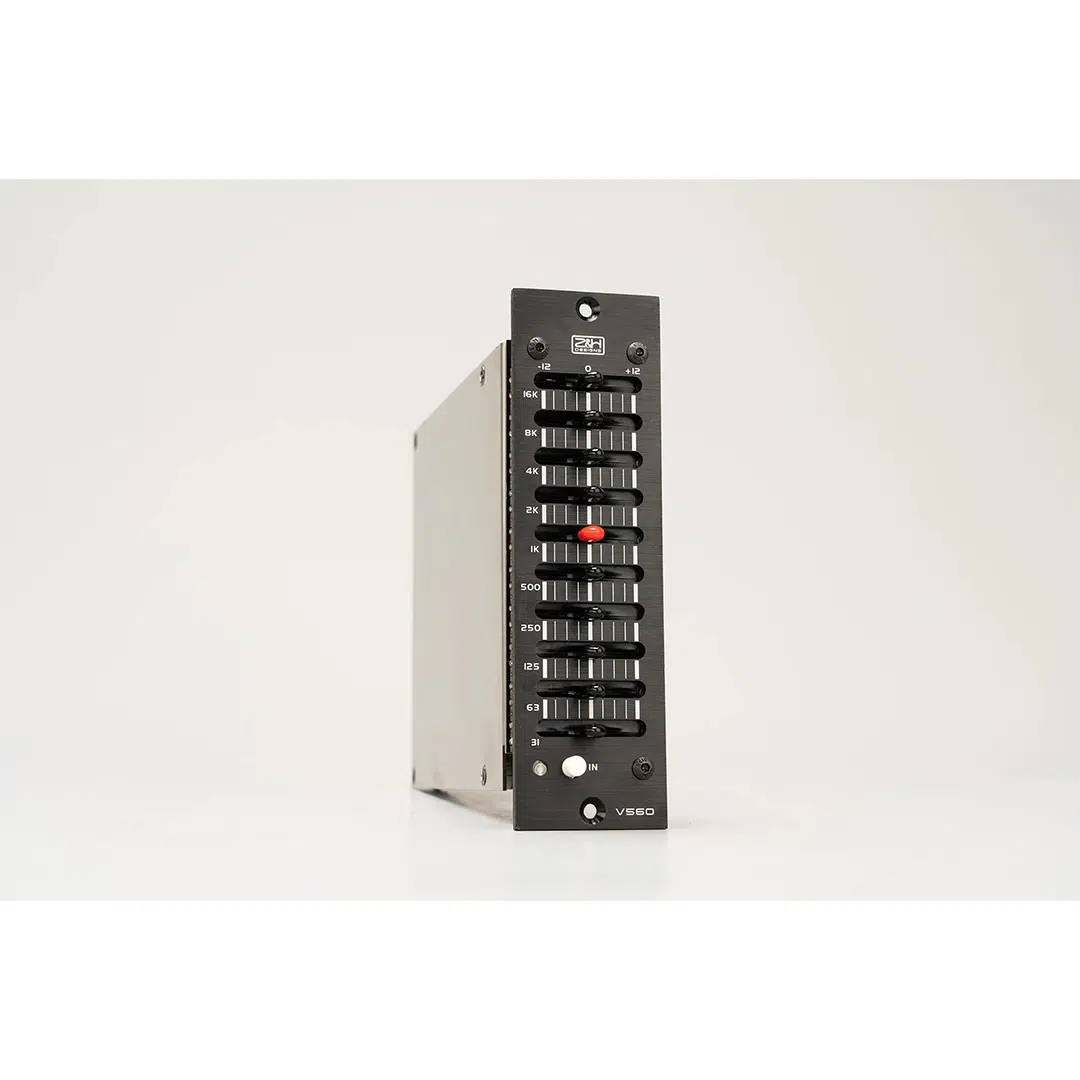

Z&H Designs V560 Graphic EQ

The Z&H Designs V560 Graphic EQ is a faithful, all-discrete recreation of a classic 10-band graphic equalizer from the 1960s–70s, designed to deliver bold tone shaping with unmistakable analog energy. Built around a replica discrete circuit and original Z&H components, the V560 brings tracks forward with minimal gain, adding excitement, punch, and harmonic richness. It excels as a creative tool for drums, guitars, and sound carving—equally effective for subtle enhancement or unapologetic attitude.

Key Features

• Classic 10-band graphic EQ inspired by vintage 1960s–70s designs.
• All-discrete analog circuitry for authentic tone and response.
• Musically chosen frequency centers with intuitive gain sliders.
• ±12 dB boost/cut on each band.
• Strong, forward character ideal for adding presence and impact.
• Excellent for aggressive tone shaping and creative sound carving.

A Modern-Day Classic

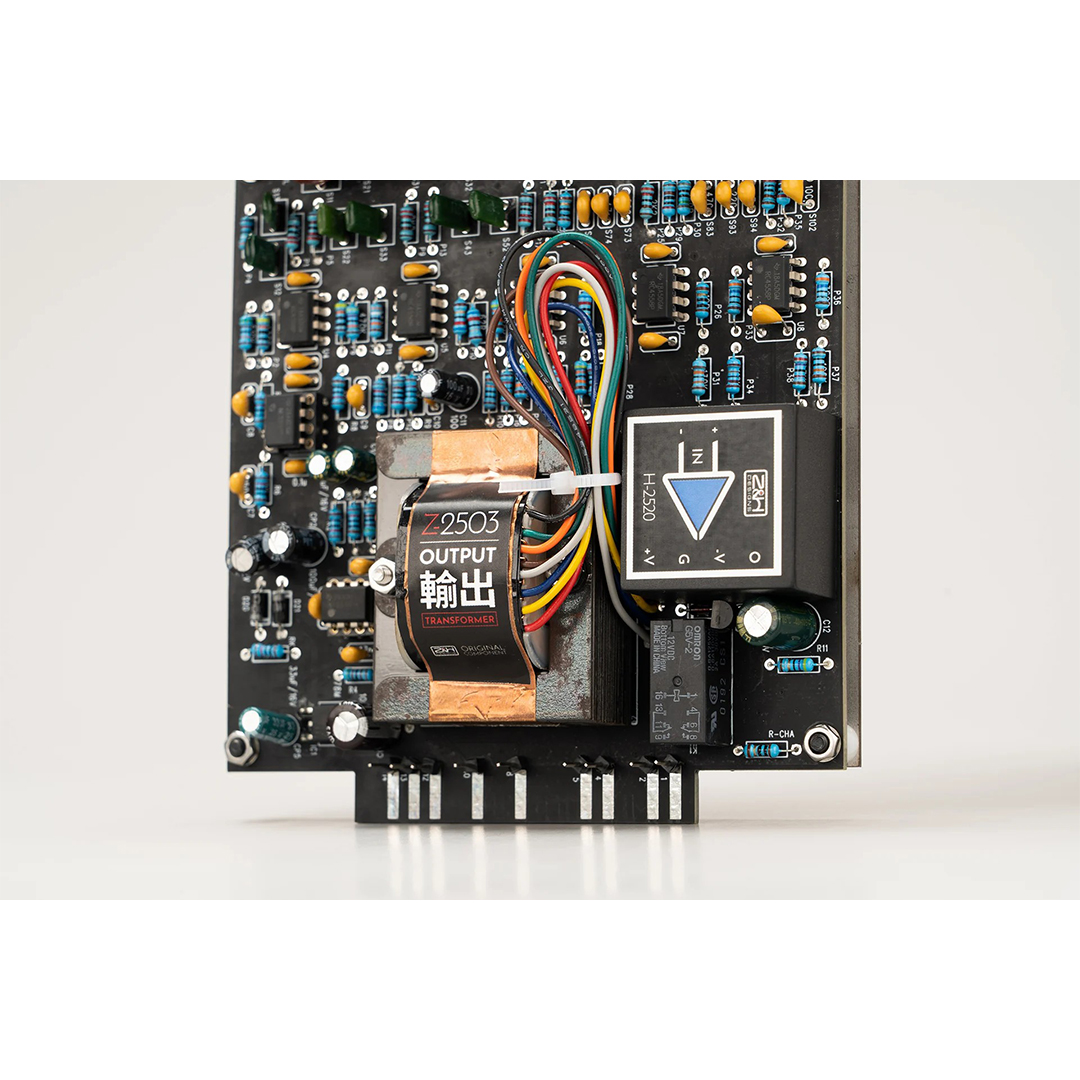

• Developed with original Z&H components, including the Z-2503 output transformer and H-2520 op amp.

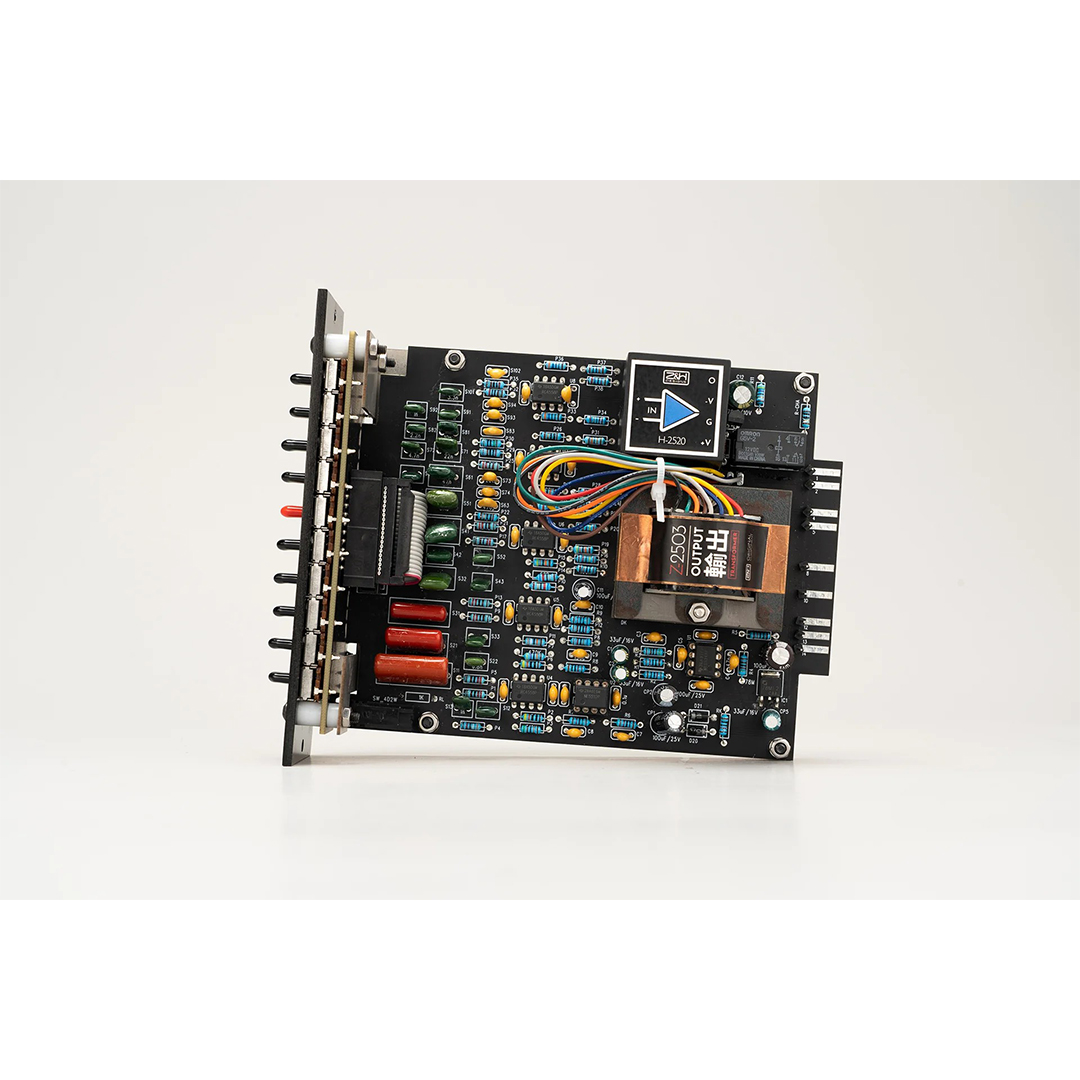

• Discrete circuit board engineered to synchronize component behavior for authentic vintage response.
• Result closely mirrors classic units while offering improved overall resolution.
• Designed to deliver classic harmonic texture with modern reliability.

Simple Controls, Powerful Results

• Graphic EQ workflow emphasizes musical decisions over technical complexity.
• Wide underlying Q enables precise carving at higher gain settings.
• Small boosts deliver immediate, intuitive tonal improvements.
• Capable of imparting classic harmonic distortion even with minimal EQ moves.

Sonic Character

• Punchy, energetic response that brings sources to the front.
• Excellent on drums and guitars for classic “golden record” tones.
• Stacks well for multi-channel drum recording and creative inspiration.
• Voiced for the “Hit” side of the Z&H sonic philosophy.

Build & Quality

• Boutique-grade construction with carefully selected components.
• Hand-assembled and individually tested before shipment.
• Built for long-term reliability in professional studio environments.

Specifications

• Frequency Range: 22 Hz – 20 kHz
• SNR: −93.094 dBV
• Band Frequencies (±12 dB each)
• 31 Hz
• 63 Hz
• 125 Hz
• 250 Hz
• 500 Hz
• 1 kHz
• 2 kHz
• 4 kHz
• 8 kHz
• 16 kHz
• Harmonic Distortion
• 0.032% across 20 Hz – 20 kHz
• Physical
• Shipping Dimensions (H × W × D): 9.5 × 27.5 × 6.5 cm
• Shipping Weight: 0.75 kg (1.6 lb)
