When Stephen Curry wanted to showcase his award-winning bourbon, Gentleman’s Cut, he partnered with the MINA Group and Westin St. Francis in San Francisco to create The Eighth Rule—a hidden, 40-seat bar tucked behind an unmarked door beneath the historic hotel. Providence Sound and Vision was already collaborating with the hotel’s renovation team when they brought us a unique request:
“The client desires a high-fidelity sound system capable of delivering audiophile-level performance. This system should create an inviting atmosphere for conversations over cocktails and transition to nightclub-level volumes for parties hosted by Stephen.”
Mapping the Space with Meyer Sound
For this system, Providence’s Jeff Ehrenberg turned to Meyer Sound—located just across the Bay Bridge in Berkeley. After recently completing a Meyer installation at The Regent Santa Monica, Jeff knew these compact yet powerful speakers would deliver impressive performance and clean aesthetics.

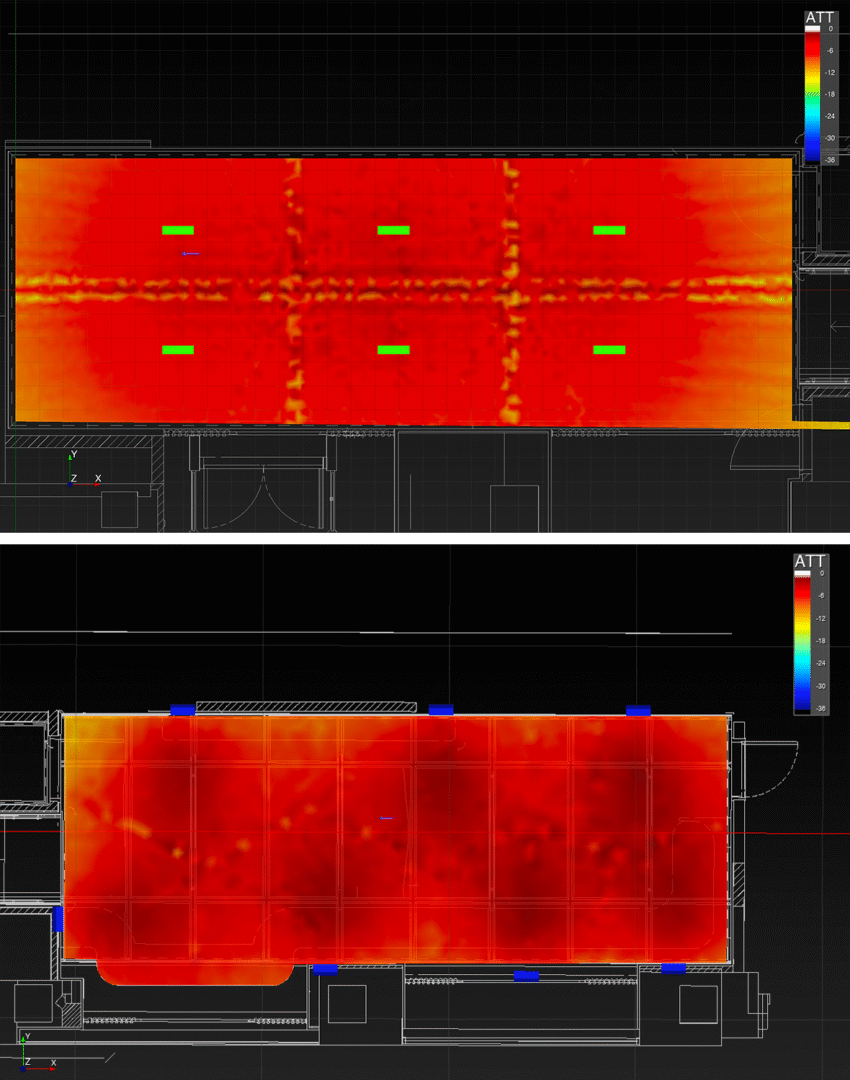

Our first step, alongside the Meyer engineering team, was to model the space in 3D using Meyer’s proprietary MAPP 3D software. This virtual layout allowed us to predict performance, optimize speaker placement, and ensure even coverage throughout the room—all while maintaining the ability to hit nightclub-level SPLs when needed.
System Components and Configuration
The final system included:

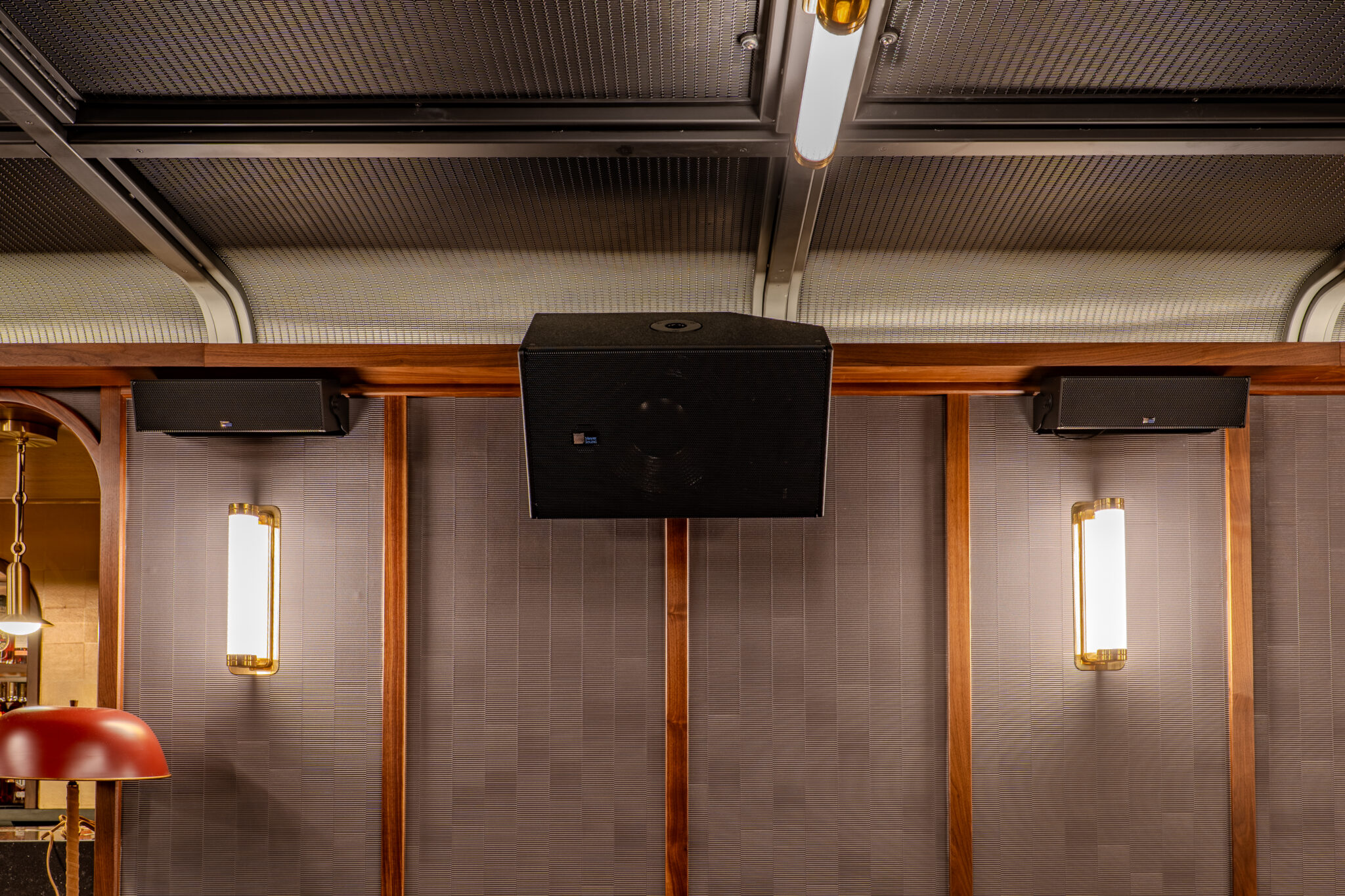

(14) Meyer Sound UP-4slim ultra-compact full-range install speakers

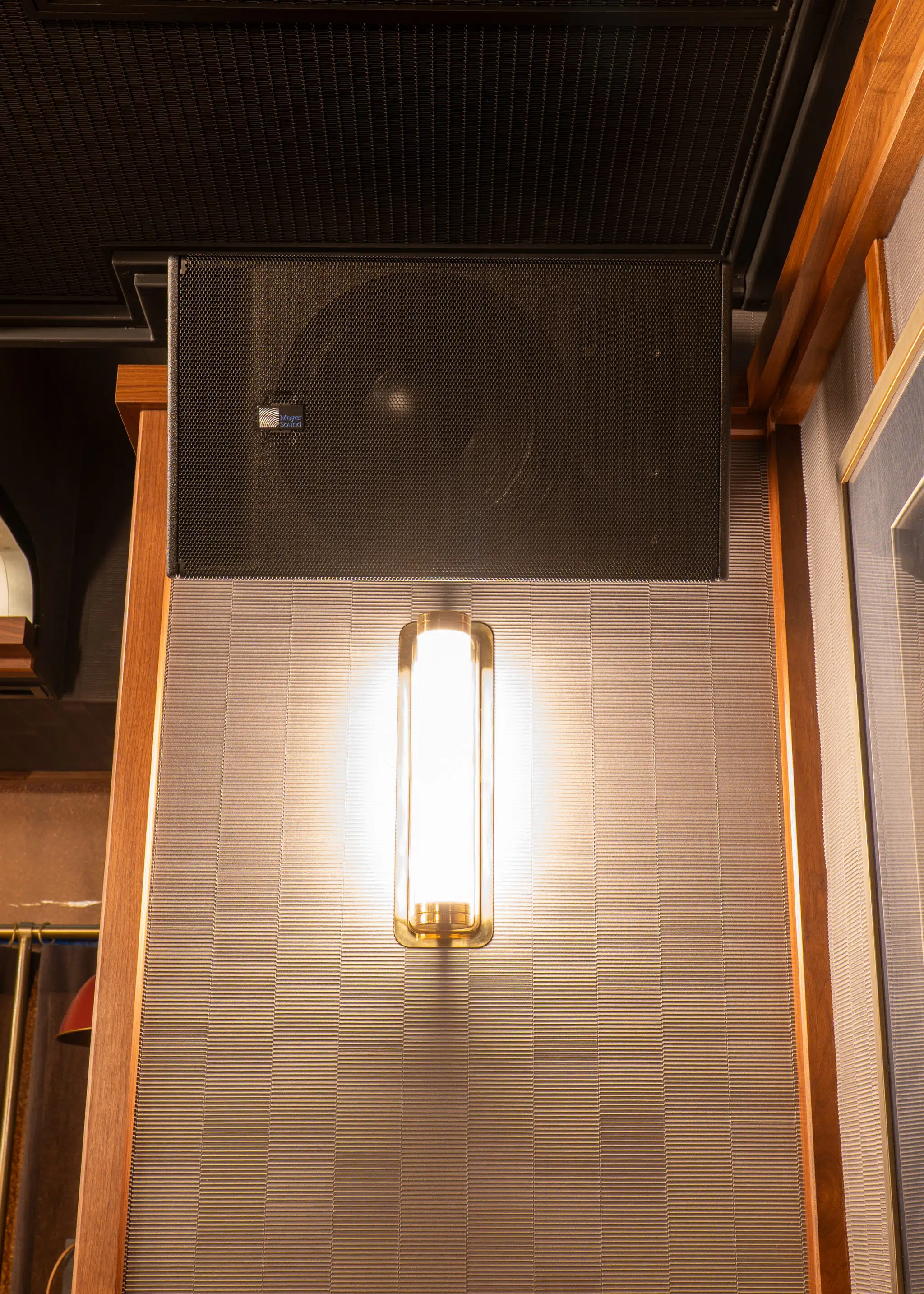

(3) Meyer Sound USW-112P 12” subwoofers
(2) Meyer Sound MPS-488X power supplies
Galileo GALAXY 408 system processor for precision tuning

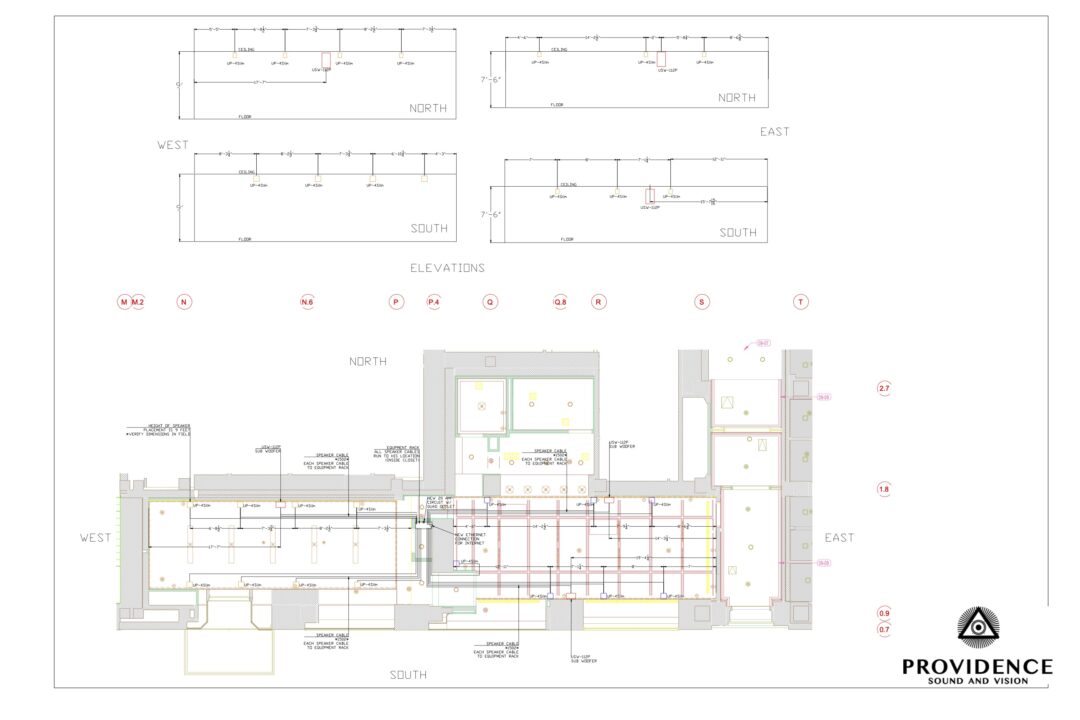

Once speaker placement was finalized, our civil engineering team created detailed shop drawings to guide speaker mounting and cable runs. The UP-4slim and USW-112P are part of Meyer’s IntelligentDC platform. These active speakers are powered remotely by the MPS-488X units.
The signal path flows from the GALAXY processor to the MPS-488X, which merges line-level audio and DC power into a five-pin cable. We selected Belden 1502P for this installation—not only for its premium sound quality, but also because the plenum rating makes it code-compliant for in-wall installation without conduit.
Once we knew where the speakers would be placed, we worked with our team’s Civil Engineer to create shop drawings (or plans) for precise speaker mounting locations and cable paths. The UP-4slim and USW-112P subwoofer are part of Meyer’s IntelligentDC platform. These are active speakers powered remotely by the MPS-488X power supply.
The signal path travels out of the GALAXY into the MPS-488X, where line level audio and DC power merge into a five-pin cable that carries both audio and DC power to the Meyer speakers. The cable we chose for this application was the Belden 1502P. Not only is Belden a premium cable that is sure to deliver optimal sound quality, but the “P” stands for Plenum, which is code-compliant for running through walls and crawl spaces without having to run through conduit.
Installing The Speaker System
The interior design and finishes at The Eighth Rule are very high-end; it would be very difficult to run cables cleanly without access to the open construction site. Fortunately, when we started the project, the drywall had been removed and the walls and ceiling were wide open, allowing us to run cables behind the walls easily.

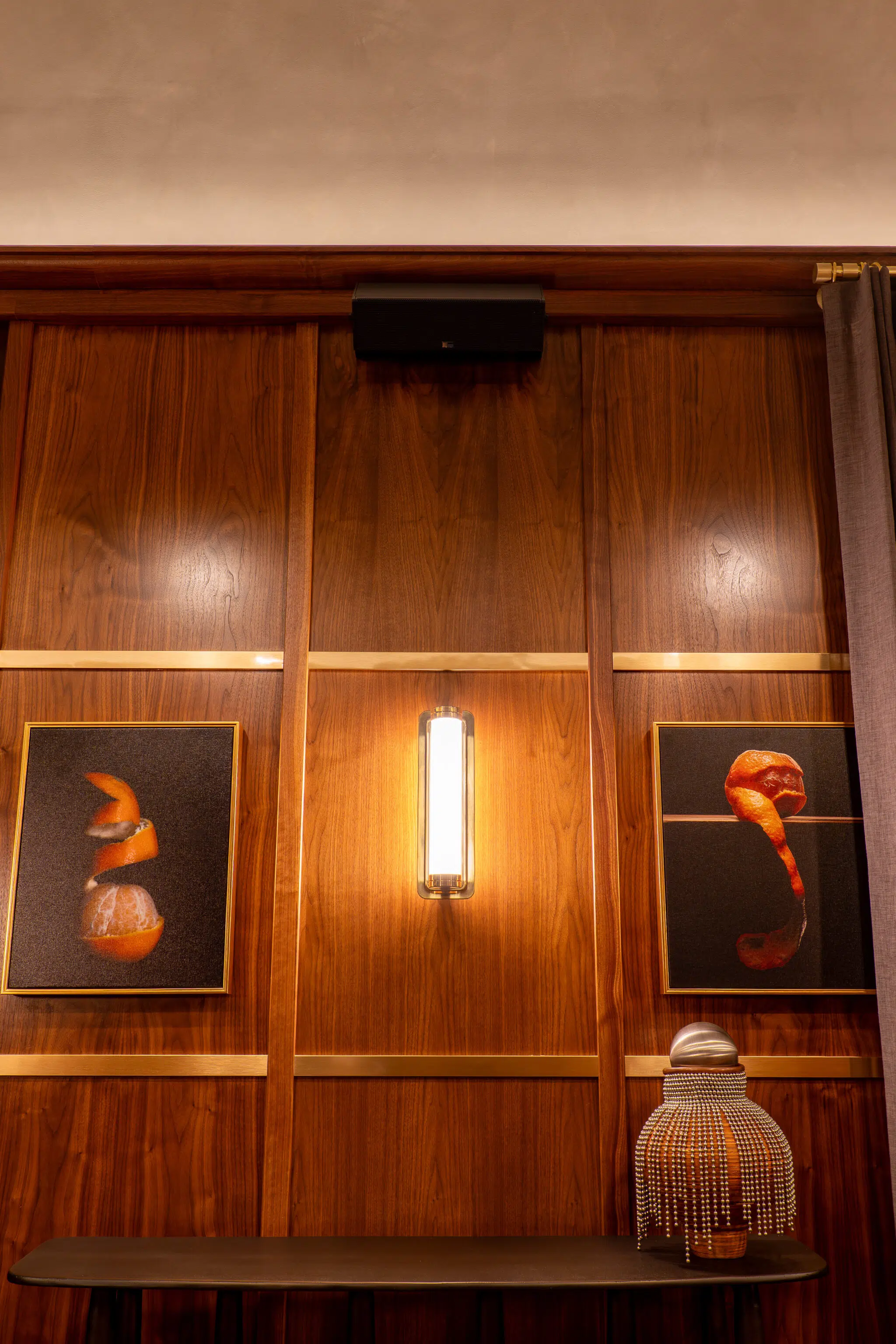

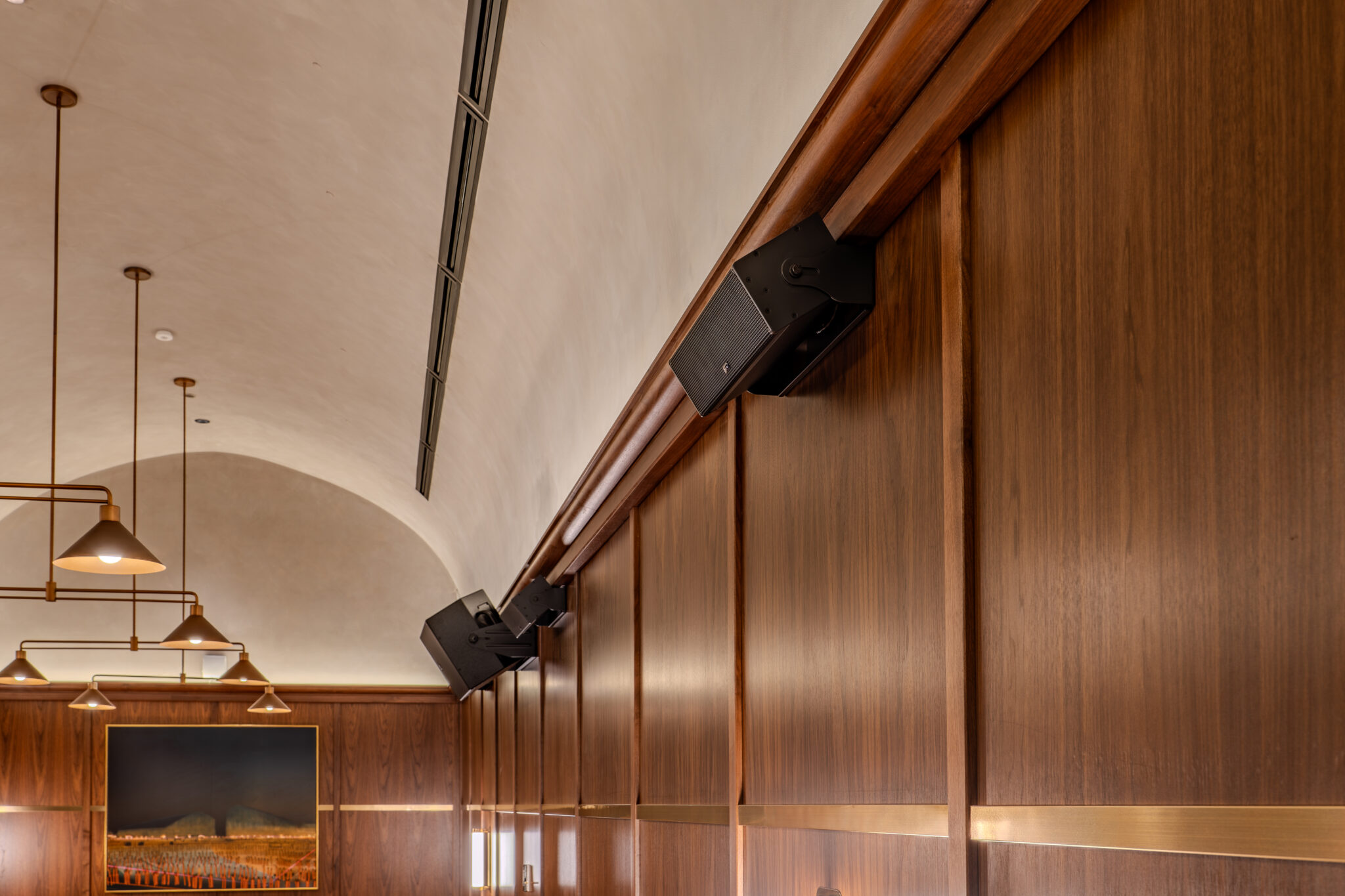

While the walls were open, we ran all our cables and then waited almost a year for construction and interior design to be completed. Once done, our team returned to mount the speakers, terminate the connections, and test signal. Once we had the system up and running, Meyer Sound Engineer Tom Dalske drove over the bridge and did a wonderful job tuning the system, ensuring that the upper and lower levels of the bar were even, time-aligned, and in-phase.

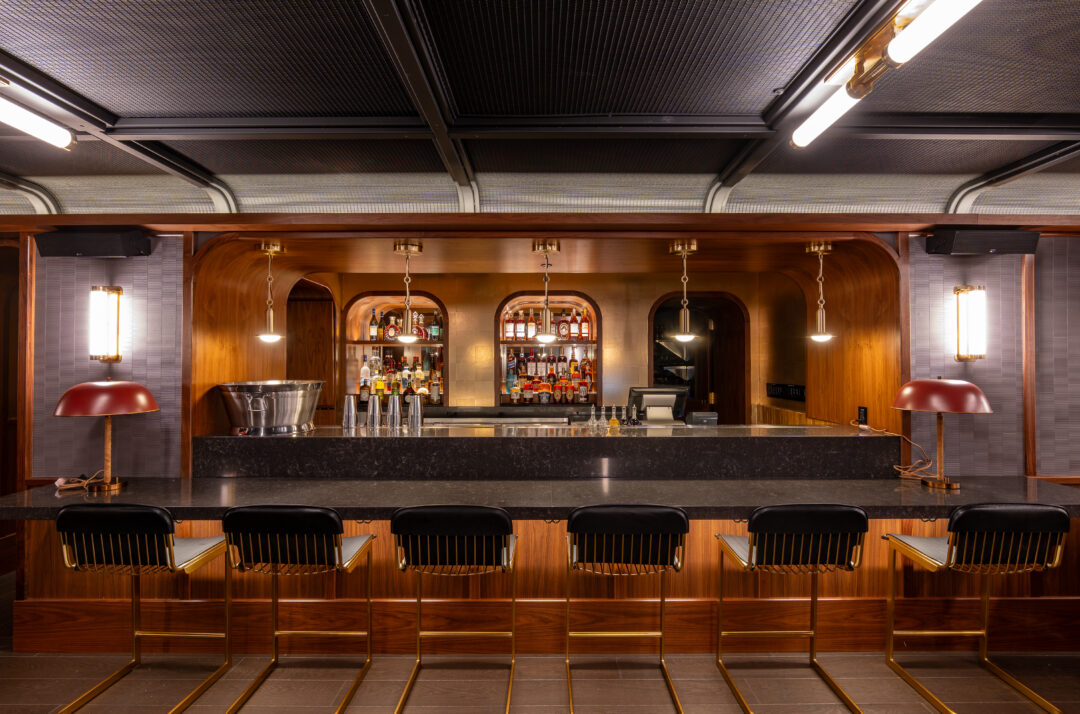

A Space That Sounds As Good As It Looks
The result: a clear, articulate, musical sound system that allows music to be enjoyed while sipping a cocktail and connecting with friends and family. Then, when the Golden State Warriors win their next championship and want to celebrate, the system can bump at club levels without the ear-fatiguing distortion found in typical sound systems.

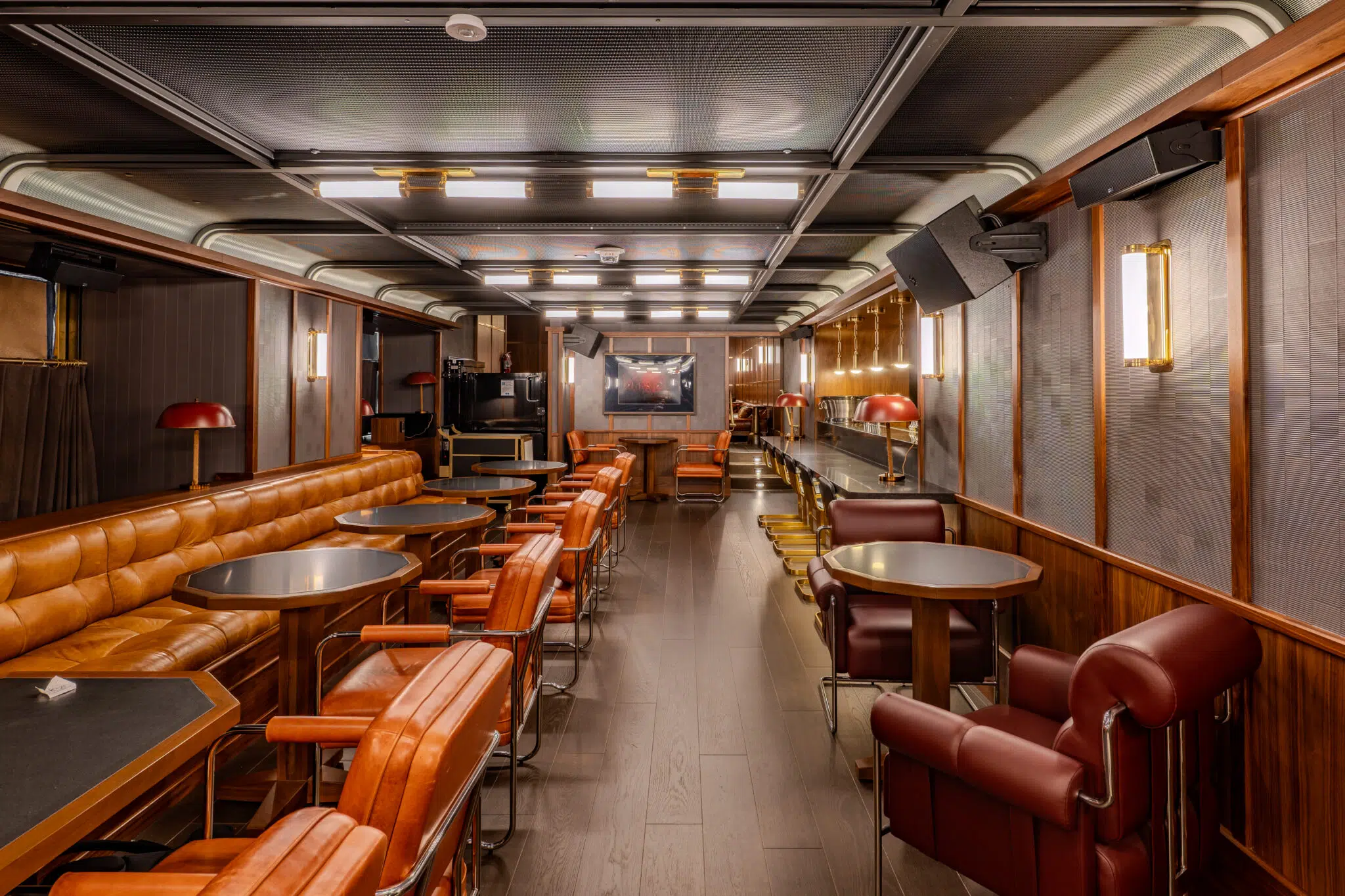

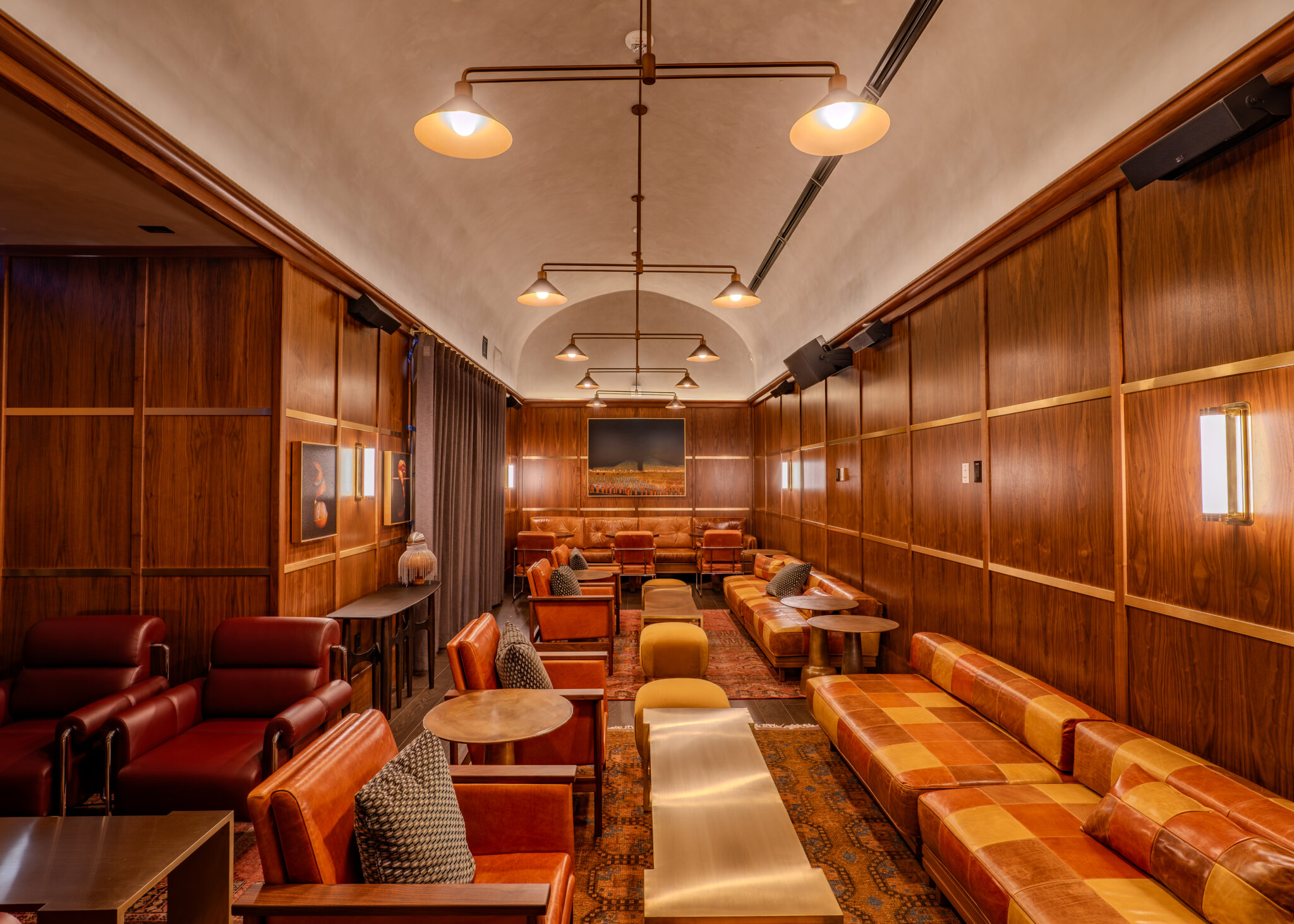

Although we usually recommend a design for acoustic treatment to accompany a premium sound system, the blend of wood, custom finishes, curves in the walls and ceilings, curtains, and heavy leather upholstered seating does a wonderful job of breaking up the waveforms and reflections that are usually a problem for most restaurants and bars.
Grab A Drink And Enjoy The Music
If you live in the Bay Area or visit San Francisco, be sure to grab a cocktail at The Eighth Rule and enjoy what might be the best sounding bar in The City. The Eighth Rule is reservation only which can be made on their website.
