Coil Audio PS6 — Rack Tray & Power Supply

The Coil Audio PS6 Rack Tray and Power Supply is the dedicated housing and power solution for the CA Series modular preamplifier lineup. The system accommodates up to six CA Series modules in a 7U rack tray, paired with a separate 2U power supply unit designed to meet the exacting demands of tube amplifier circuits. A soft-start and standby feature allows filament and B+ voltages to be switched on and off independently—protecting tubes at power-up and extending their operating life over time.

Key Features

  • Houses and powers up to six Coil Audio CA Series preamp modules
  • Separate 7U rack tray and 2U power supply unit
  • Soft-start/standby feature allows independent switching of filament and B+ voltages
  • Designed to complement and power the CA-286, CA-70, and other CA Series modules

Specifications

  • Rack Tray: 7U
  • Power Supply Unit: 2U
  • Module Capacity: Up to 6 CA Series amplifiers
  • Standby: Independent filament and B+ voltage switching

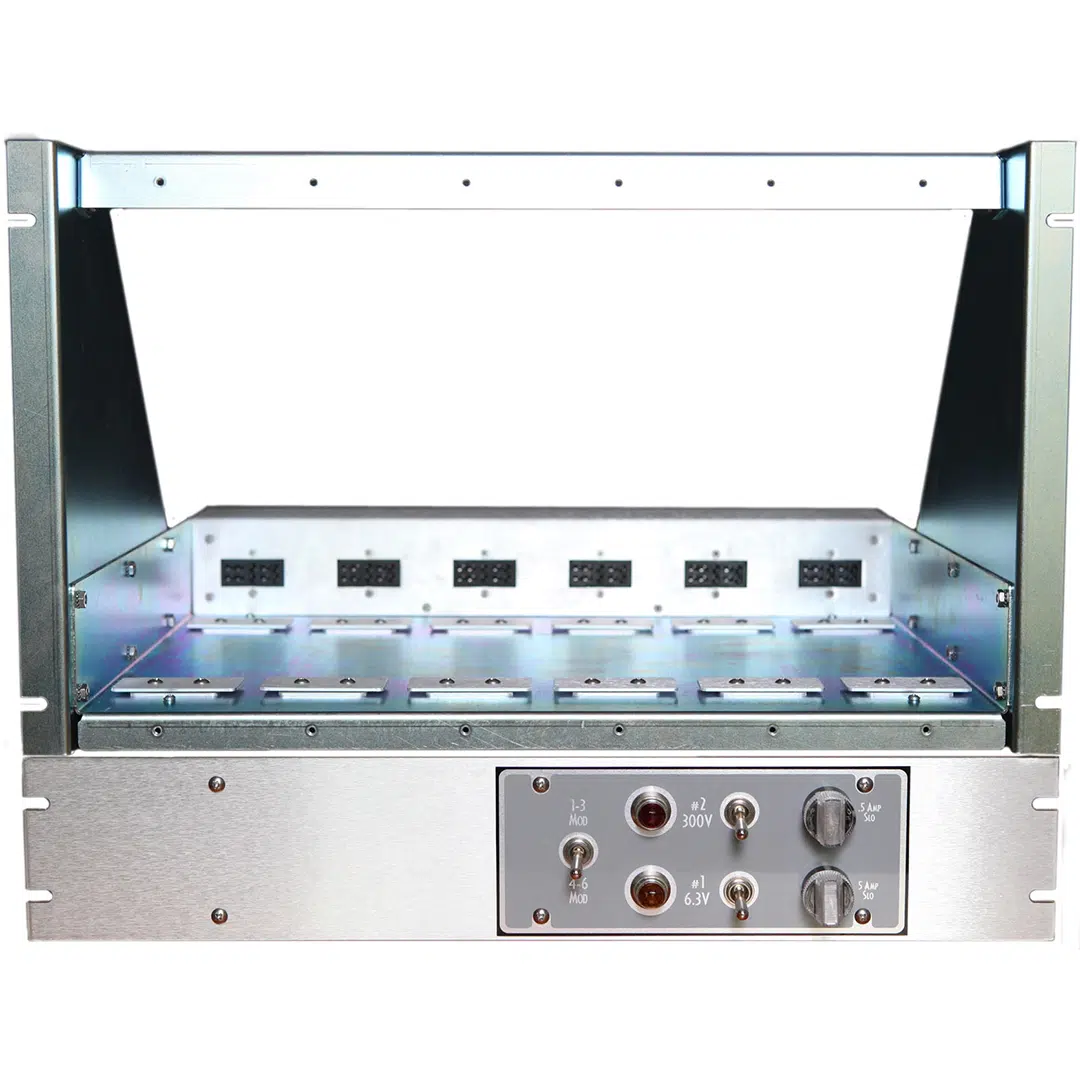

PS6 Rack Tray
Specifications

  • 7u rack mount chassis.
  • Provides housing, audio I/O and power for up to 6 modules.
  • Rugged military-grade Cinch Jones connectors.
  • Internal point to point wiring.
  • Neutrik XLR connections.
  • Up to six CA Series Amplifiers mount into our PS6 Rack.
  • Hand built and tested in the USA.

PS6 Power Supply
Specifications

  • Standard 19 inch 2u rack-mount chassis.
  • Filament supply 6.3v @ 4amps, regulated b+ 275v supply @ .5amps.
  • Switched filament power regulation for 1-3 or 4-6 modules.
  • Fault light indicating fuse holders.
  • Internal point to point wiring.
  • 5 foot umbilical power cord with a military Cinch Jones plug.
  • Hand built and tested in the USA.
