HEDD Audio TYPE 05 A-CORE EDITION X

The HEDD Audio TYPE 05 A-CORE EDITION X is a limited production of 100 pairs worldwide, created to mark HEDD’s 10th anniversary and 40 years of loudspeaker innovation by founder Klaus Heinz. Built on the same pure analog signal path and driver configuration as the TYPE 05 A-CORE — 5-inch custom honeycomb woofer, hand-built Air Motion Transformer tweeter, 43 Hz to 50 kHz frequency response, 2 × 100 W ICEpower amplification — EDITION X upgrades the signal chain with a custom black ENIG-finished PCB and adds 18k gold-plated, Italian-made hardware throughout, including the backplate, screws, and tweeter grille. Each unit carries a unique engraved serial number and is handmade in Berlin with the same premium components and individual testing standard applied across the HEDD lineup.

Key Features

• Limited to 100 Pairs Worldwide: EDITION X is a one-time production run of 100 pairs, each individually numbered and engraved — a permanent marker of its place in HEDD’s history and the legacy of Klaus Heinz’s four decades of loudspeaker design.
• HEDD Air Motion Transformer Tweeter: Handmade in Berlin, the full-range AMT driver delivers high-frequency extension to 50 kHz and exceptional transient response for precise, natural upper-midrange and high-frequency reproduction — now framed by a custom 18k gold-plated grille.
• Custom Black ENIG-Finished PCB: Electroless Nickel Immersion Gold finish on the analog filter board ensures superior signal path purity, long-term corrosion resistance, and enhanced stability compared to standard PCB finishes.
• 18k Gold-Plated Italian Hardware: Backplate, mounting screws, and tweeter grille are finished in 18k gold and sourced from Italian manufacturing, distinguishing EDITION X visually and materially from the standard A-CORE line.
• Pure Analog Signal Path: No analog-to-digital conversion in the signal chain means zero converter latency and no dependence on software or firmware — EDITION X powers on and is ready to work.

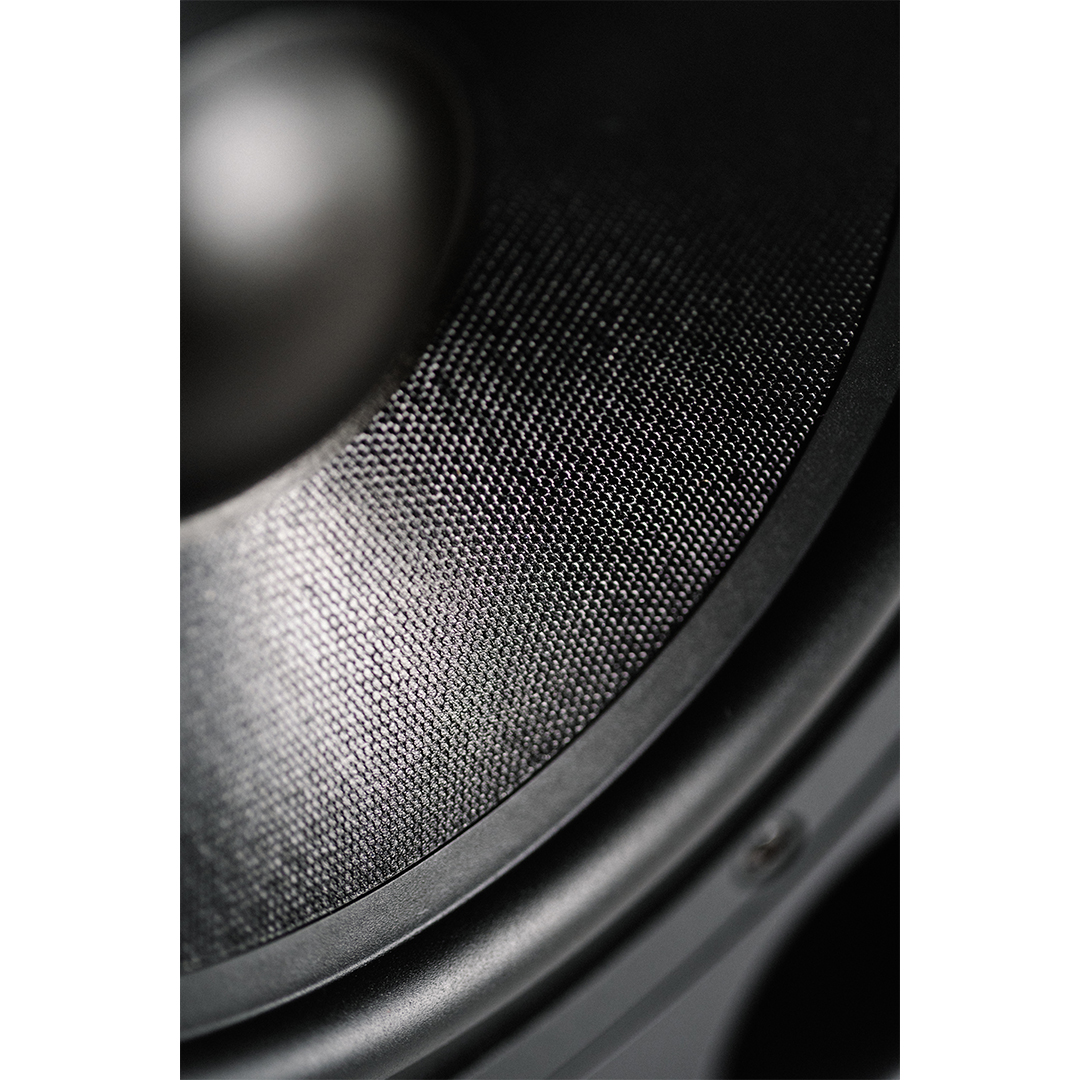

• 5-Inch Custom Honeycomb Woofer: A rigid compound honeycomb cone provides controlled, detailed low-frequency reproduction down to 43 Hz in a compact nearfield cabinet.

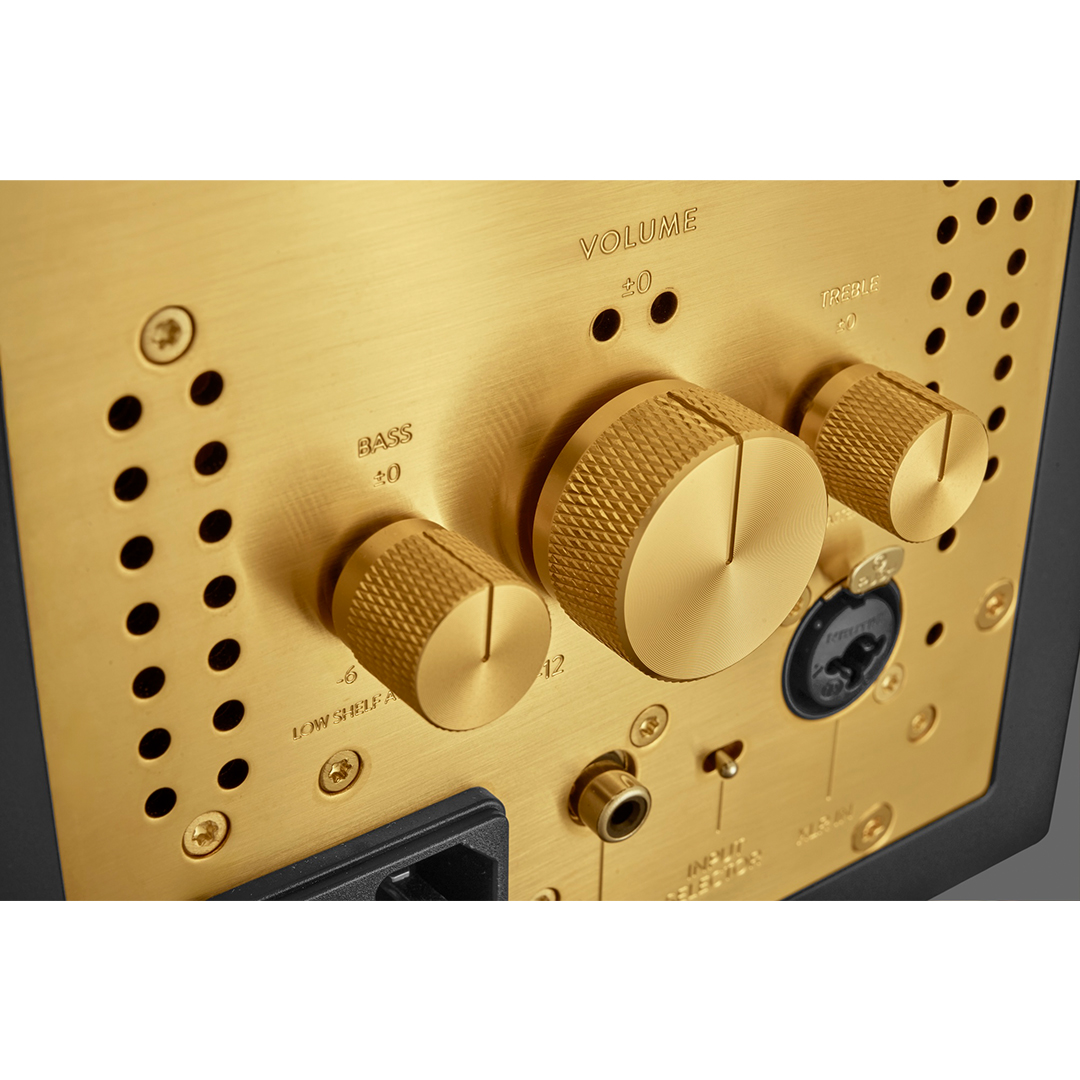

• High and Low Shelving EQ: Front-panel shelving filters (±6 dB, continuous) allow quick, intuitive adjustment to compensate for room acoustics or listening preference without software.
• Flexible Input Options: Balanced XLR and TRS inputs alongside unbalanced RCA accept a wide range of sources and interface outputs without adapters.
• Front-Panel Standby Switch: A physical standby control on the front panel keeps workflow simple and eliminates the need to reach behind the cabinet.
• Mounting Ready: Compatible with standard mounting hardware for ceiling-level Atmos and compact multi-channel installations.
• Handmade in Berlin: Each EDITION X unit is individually tested before shipping and backed by a 5-year warranty after registration.

Specifications

• Type: 2-way active nearfield monitor, pure analog signal path
• Edition: Limited to 100 pairs worldwide, individually serialized
• Drivers: 5″ custom honeycomb compound woofer + HEDD AMT tweeter
• Amplification: 2 × 100 W ICEpower Class D
• Crossover: 2,500 Hz
• Frequency Range: 43 Hz – 50 kHz
• Maximum SPL: 112 dB SPL per pair at 1 m
• Inputs: XLR (balanced), TRS (balanced), RCA (unbalanced)
• Cabinet: Heavy-duty MDF, black satin finish, front-panel LED indicators

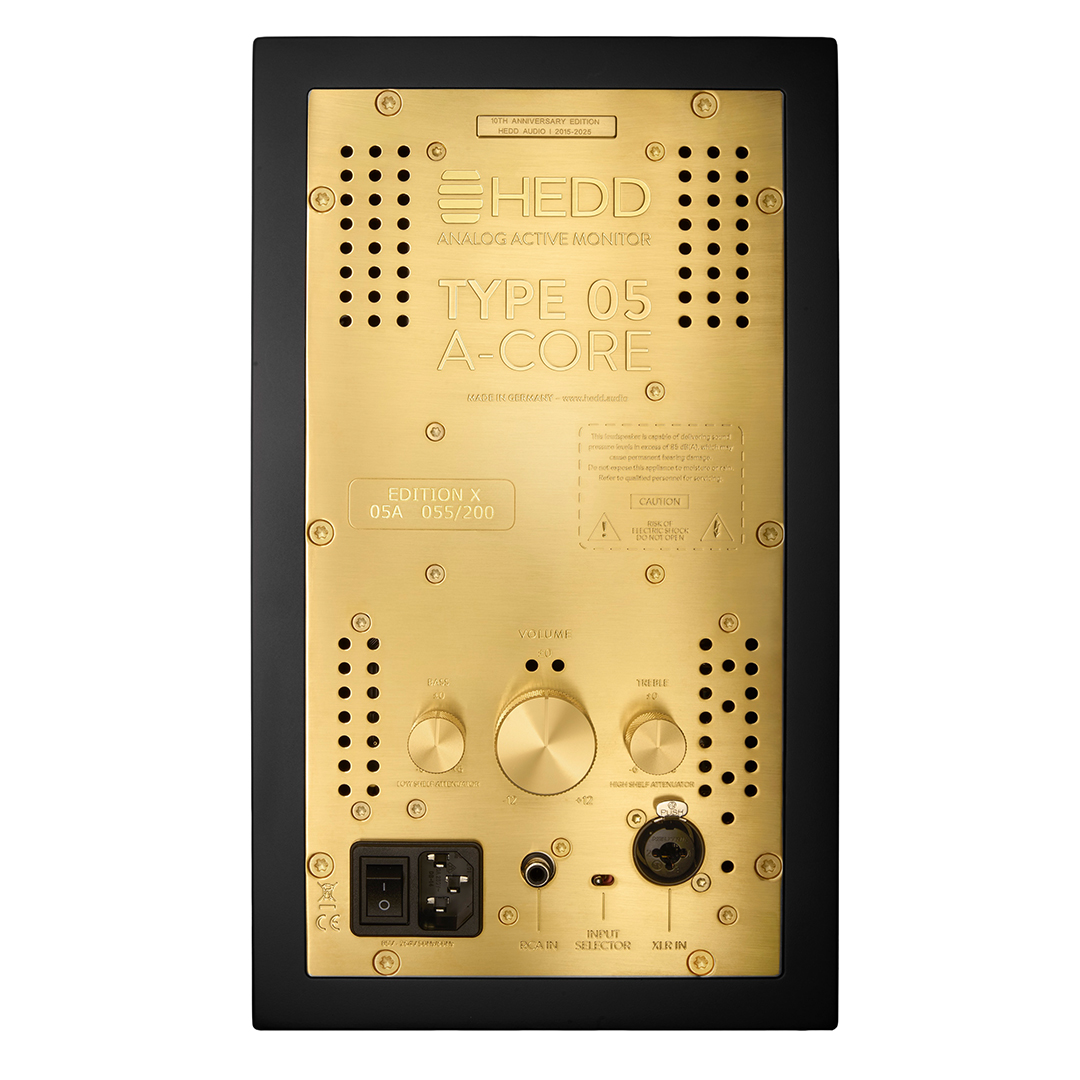

• Hardware: 18k gold-plated Italian-made backplate, screws, and tweeter grille; custom black ENIG-finished PCB
• Dimensions: 12.1″ H × 7.1″ W × 9.6″ D
• Weight: 13.7 lbs per unit
• Warranty: 5 years after registration
