HEDD Audio TYPE 07 A-CORE

The HEDD Audio TYPE 07 A-CORE is a 2-way active nearfield monitor that brings a pure analog signal path to small and medium studio environments without the latency or software dependency of DSP-based systems. A 7-inch custom honeycomb woofer crosses over to HEDD’s Air Motion Transformer tweeter at 2,200 Hz, extending frequency response from 38 Hz to 50 kHz through a tuned analog filter board voiced for natural, uncolored reproduction. The larger woofer and 116 dB SPL ceiling give the TYPE 07 A-CORE more low-end authority and headroom than its compact sibling, making it equally suited to recording sessions, home studio mixing, and ceiling-level Atmos configurations. Balanced XLR and TRS inputs alongside unbalanced RCA, front-panel shelving EQ, and a physical standby switch keep the workflow straightforward from the moment it’s connected.

Key Features

• Pure Analog Signal Path: No analog-to-digital conversion in the signal chain means zero converter latency and no dependence on software or firmware — the TYPE 07 A-CORE powers on and is ready to work.
• HEDD Air Motion Transformer Tweeter: Handmade in Berlin, the AMT driver delivers high-frequency extension to 50 kHz and exceptional transient response for precise, open upper-midrange and high-frequency reproduction.

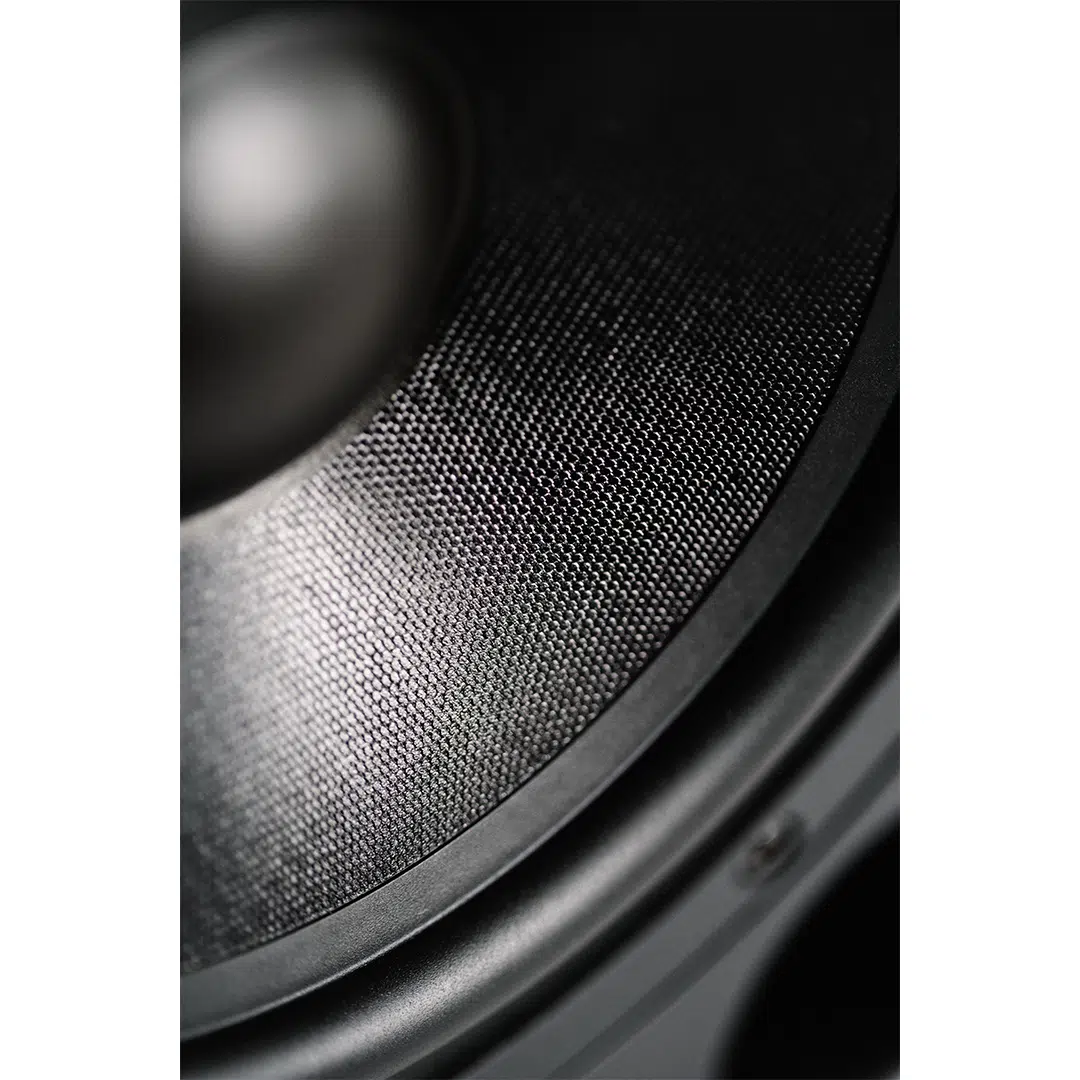

• 7-Inch Custom Honeycomb Woofer: A rigid compound honeycomb cone provides controlled, detailed low-frequency reproduction down to 38 Hz, with the added driver surface area and SPL headroom suited to small and medium room monitoring.
• Tuned Analog Filter Board: A sophisticated analog crossover and filter board, voiced for natural frequency distribution, keeps the signal path entirely analog from input to driver.

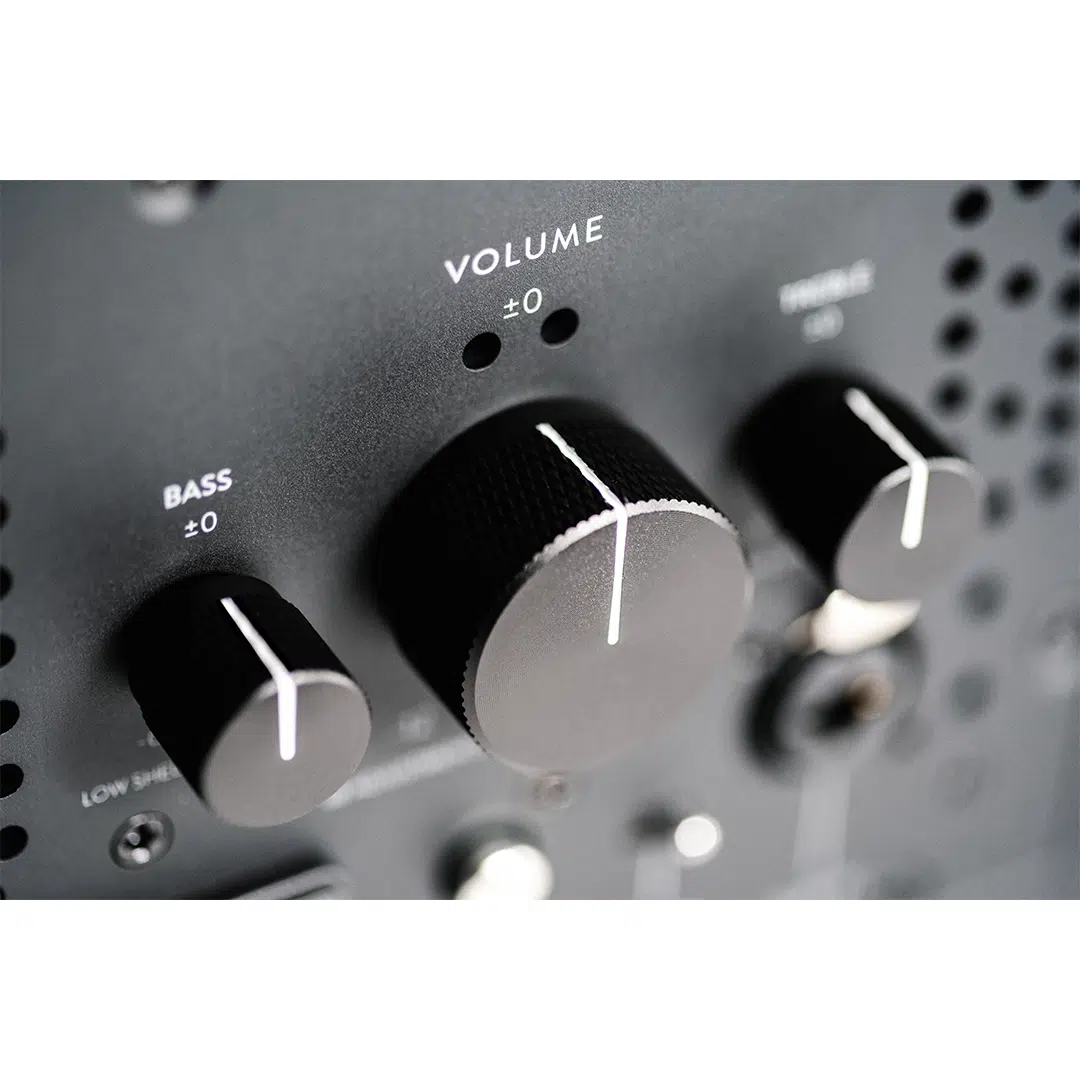

• High and Low Shelving EQ: Front-panel shelving filters (±6 dB, continuous) allow quick, intuitive adjustment to compensate for room acoustics or listening preference without software.
• Flexible Input Options: Balanced XLR and TRS inputs alongside unbalanced RCA accept a wide range of sources and interface outputs without adapters.
• Front-Panel Standby Switch: A physical standby control on the front panel keeps workflow simple and eliminates the need to reach behind the cabinet.
• Mounting Ready: Compatible with standard mounting hardware for ceiling-level Atmos and compact multi-channel installations.
• Assembled in Berlin: Each TYPE 07 A-CORE is built with premium components, individually tested before shipping, and backed by a 5-year warranty after registration.

Specifications

• Type: 2-way active nearfield monitor, pure analog signal path
• Drivers: 7″ custom honeycomb compound woofer + HEDD AMT tweeter
• Amplification: 2 × 100 W ICEpower Class D
• Crossover: 2,200 Hz
• Frequency Range: 38 Hz – 50 kHz
• Maximum SPL: 116 dB SPL per pair at 1 m

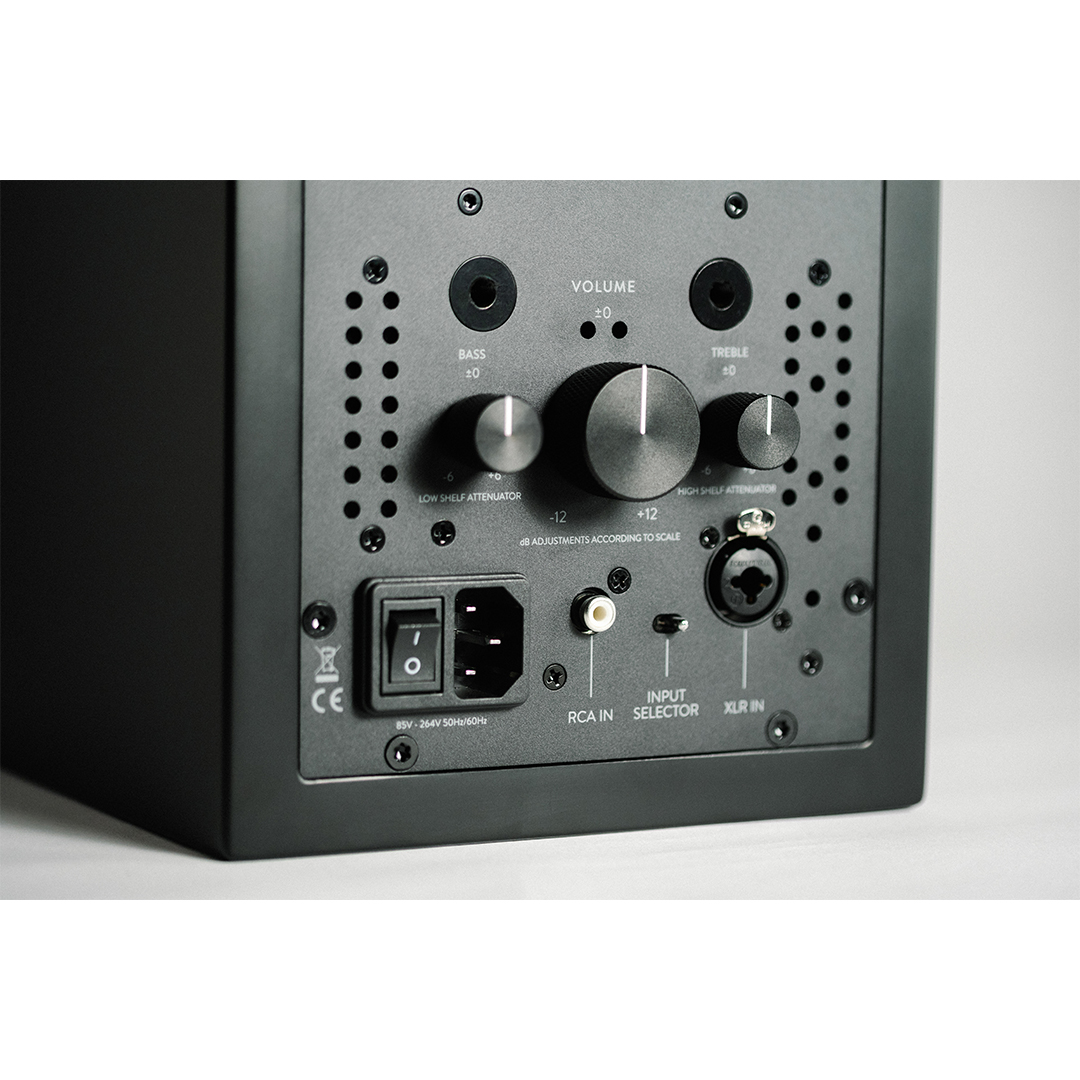

• Inputs: XLR (balanced), TRS (balanced), RCA (unbalanced)
• Cabinet: Heavy-duty MDF, black satin finish, front-panel LED indicators
• Dimensions: 14.6″ H × 8.7″ W × 11.8″ D
• Weight: 21.4 lbs per unit
• Warranty: 5 years after registration
