HEDD Audio TYPE 07 MK2

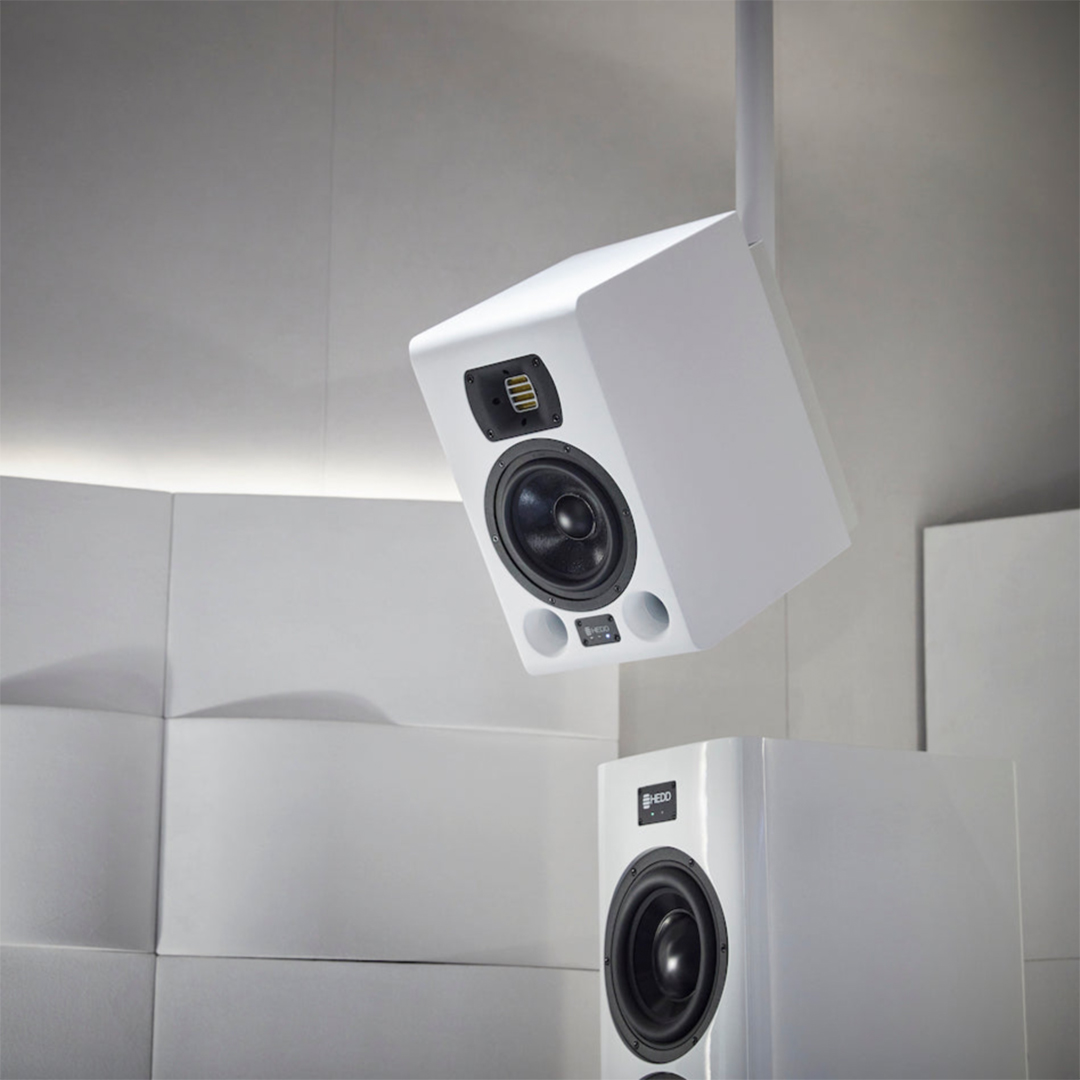

The HEDD Audio TYPE 07 MK2 is a 2-way active nearfield monitor that combines HEDD’s hand-built Air Motion Transformer tweeter with a 7-inch honeycomb woofer and a full 96 kHz / 32-bit SHARC DSP platform for flexible, precise monitoring in home studios and professional environments alike. Frequency response extends from 38 Hz to 40 kHz — and to 30 Hz in LFE mode — with Closed or Ported switching, HEDD Lineariser zero-phase filtering, and the complete suite of room and system correction tools managed through CTRL software. At 116 dB SPL per pair, the TYPE 07 MK2 carries the output and DSP control of the larger MK2 monitors in a compact footprint suited to nearfield listening positions and ceiling-level Atmos installations. Analog XLR and AES/EBU digital inputs with daisy-chain pass-through, plus full linear-phase integration with HEDD BASS 08 subwoofers, make it a capable foundation for both stereo and multi-channel systems.

Key Features

• HEDD Air Motion Transformer Tweeter: Handmade in Berlin, the AMT driver delivers high-frequency extension to 40 kHz and exceptional transient response for precise, open upper-midrange and high-frequency reproduction.
• 7-Inch Honeycomb Woofer: A rigid honeycomb cone woofer with a 1.5-inch voice coil handles low-frequency reproduction down to 38 Hz, crossing over to the AMT at 2,300 Hz.
• Closed or Ported (CoP): A POM plug switches the TYPE 07 MK2 between closed and ported cabinet modes — closed for increased bass precision and transient resolution, ported for extended low-end response.
• HEDD Lineariser: A zero-phase filter applied through the onboard DSP that tightens stereo image and depth without introducing phase distortion or time-smearing.
• 32-Bit SHARC DSP with CTRL Software: The 96 kHz / 32-bit DSP platform powers the Lineariser, desktop filter, hi/low shelving filters, bass-extension mode, and LFE setup — all manageable in real time from HEDD’s free CTRL software at the listening position.
• Desktop Filter: Reduces the acoustic influence of nearby studio furniture on the listening position for a cleaner, more accurate nearfield image.
• Bass-Extension Mode: Increases low-end output by up to 20%, extending useful frequency response down to 30 Hz in LFE mode when room conditions allow.
• Analog and Digital Inputs: Accepts balanced analog XLR (22 kΩ input impedance) and AES/EBU digital with daisy-chain pass-through via XLR.
• Satellite–Subwoofer Integration: Full linear-phase integration with HEDD BASS 08 subwoofers for complete, phase-aligned multi-channel and Atmos systems.
• Aluminum Pot Controls: Premium aluminum rotary controls for input sensitivity and DSP parameter adjustment.
• Assembled in Berlin: Each TYPE 07 MK2 is built with premium components, individually tested before shipping, and backed by a 5-year warranty after registration. Ongoing firmware and feature support is available through the HEDD Access tool.

Specifications

• Type: 2-way active nearfield studio monitor
• Drivers: 7″ woofer (1.5″ voice coil) + HEDD AMT tweeter
• Amplification: 2 × 100 W ICEpower (85–264 V)
• DSP: Custom 96 kHz / 32-bit AD/DA, 32-bit SHARC processor
• Onboard Features: HEDD Lineariser, CoP, GDC, LFE, desktop filter, hi/low shelf filters
• Crossover: 2,300 Hz
• Frequency Range: 38 Hz – 40 kHz (LFE mode: 30 Hz – 40 kHz)
• Maximum SPL: 116 dB SPL per pair at 1 m
• Inputs: Analog XLR (22 kΩ), Digital AES/EBU via XLR
• Output: Digital AES pass-through via XLR
• Dimensions: 14.6″ H × 8.7″ W × 11.8″ D
• Weight: 21.8 lbs per unit
• Warranty: 5 years after registration
