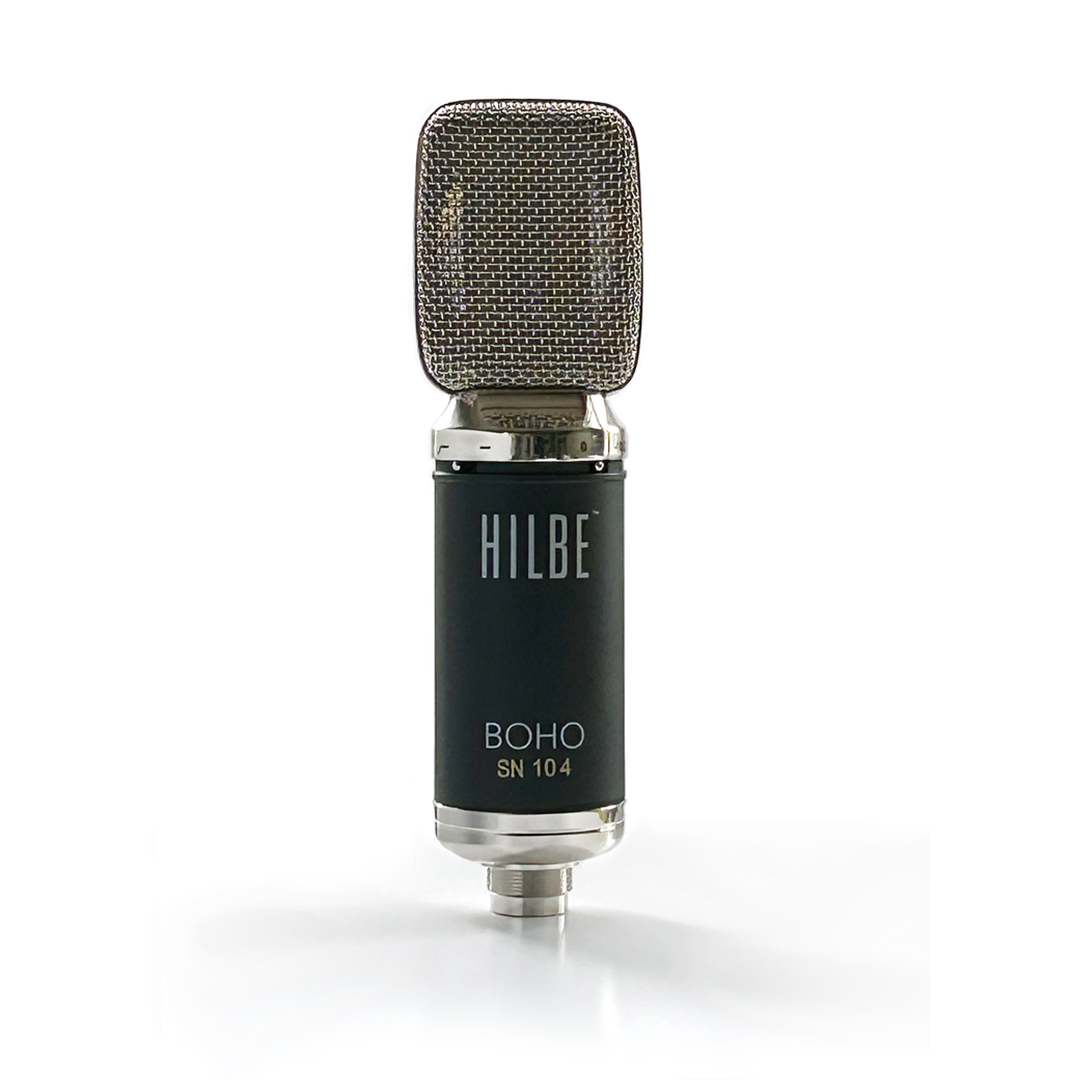

Hilbe BOHO Active Ribbon Recording Microphone

The Hilbe BOHO is an active ribbon recording microphone that delivers vivid, natural sound with a wide low-frequency range and fast transient response. Its double-sided 0.02 mm pure aluminum foil ribbon and the Hilbe series MELCOR B-400-01 transformer give it the classic ribbon character in a versatile package. The figure-8 pattern and 130 dB maximum input SPL make it well suited to acoustic instruments, including strings, brass, pianos, drums, and percussion. Onboard high-pass filter and attenuation switches add control at the source, and the active design runs from 48V phantom power.

Key Features

• Classic ribbon recording microphone with an active design
• Double-sided 0.02 mm pure aluminum foil ribbon
• Vivid, natural sound with wide low-frequency range and fast transient response
• Hilbe series MELCOR B-400-01 transformer
• Versatile for a wide range of professional applications, ideal for acoustic instruments including strings, brass, pianos, drums, and percussion
• Onboard high-pass filter switch and 0 dB / -10 dB attenuation switch
• Powered by 48V phantom power

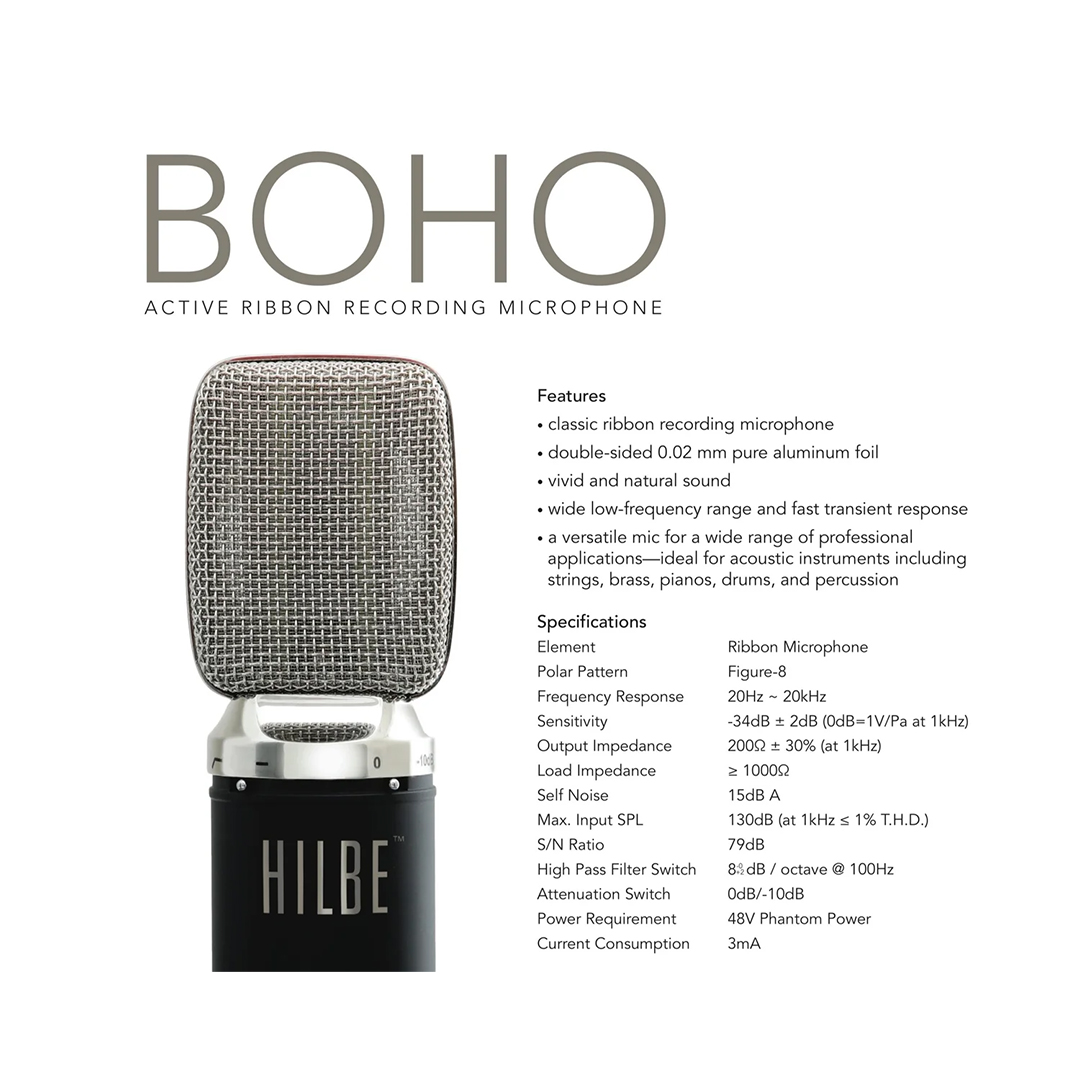

Specifications

• Element: Ribbon
• Polar Pattern: Figure-8
• Frequency Response: 20 Hz – 20 kHz
• Sensitivity: -34 dB ±2 dB (0 dB = 1 V/Pa at 1 kHz)
• Output Impedance: 200 Ω ±30% (at 1 kHz)
• Load Impedance: ≥1000 Ω
• Self Noise: 15 dB A
• Max. Input SPL: 130 dB (at 1 kHz, ≤1% THD)
• S/N Ratio: 79 dB
• High-Pass Filter Switch: 8 dB/octave @ 100 Hz
• Attenuation Switch: 0 dB / -10 dB
• Power Requirement: 48V phantom power
• Current Consumption: 3 mA
