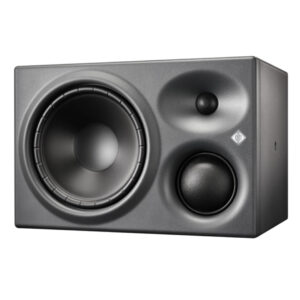

Neumann KH 310 A G

EXPANDED MIDRANGE PRECISION – DRY BASS SOUND
The KH 310 is designed with a midrange driver ideal for precise work with speech, vocals, guitars, and other midrange-emphasized instruments. Its closed design enables a fast transient response, while low harmonic distortion guarantees a neutral reference sound to meet the highest standards.

The KH 310 is a three-way, tri-amplified monitor featuring thermally protected Class AB amplifiers (210 W and two times 90 W). The Mathematically Modeled Dispersion™ (MMD™) waveguide delivers sound waves with superior accuracy. Drivers are modeled using Neumann’s in-house developed software, reducing non-linear distortion. The controlled dispersion characteristics optimize reproduction in various room configurations with adaptable acoustical control settings.

Key Features

  • Midrange Precision: Designed for precise work with speech, vocals, and instruments with midrange emphasis.
  • Tri-Amplified Design: Three-way monitor with thermally protected Class AB amplifiers.
  • MMD™ Waveguide: Delivers sound waves with superior accuracy and controlled dispersion characteristics.
  • Closed Design: Fast transient response with low harmonic distortion.
  • Adaptable Acoustical Control: Optimizes reproduction in different room configurations.
  • Free field frequency response ±6 dB: 30 Hz … 22 kHz
  • Free field frequency response ±3 dB: 34 Hz … 21 kHz
  • Free field frequency linearity deviation between 100 Hz and 10 kHz: ± 1.1 dB
  • Self-generated noise at 10 cm: <20 dB(A) SPL
  • Sine wave output with a THD < 0.5 % at 1 m in half space: 95 dB SPL (>85 Hz)
  • Max. SPL calc. in half space at 3% THD at 1m: 116.3 dB SPL
  • Max. SPL in full space at 3% THD at 1m: 110.3 dB SPL
  • Bass capability: Max. SPL in half space at 3% THD at 1m: 106.8 dB SPL
  • Max. short term SPL with IEC-weighted noise at 1 m: 108 dB(C) SPL
  • Reproduction accuracy between 100 Hz and 10 kHz: ±0.87; ±0.39; ±0.23 dB
  • Max. short term SPL with music material at 2.3 m (pair / full range): 100 dB(C) SPL
  • Max. short term SPL with music material at 2.3 m (pair with subwoofer): 107 dB(C) SPL
  • Max. long term SPL with pink noise at 2.3 m (single / pair full range): 93 / 99 dB(C) SPL
  • Max. long term SPL with pink noise at 2.3 m (single / pair with subwoofer): 94 / 100 dB(C) SPL
  • Display Brightness: White: 100%/60%/30%/off; Red: 100%/60%/30%
  • Output power midrange amplifier: 90 W (THD+N with limiter deactivated: 10%), 70 W (THD+N with limiter deactivated: 0.1%)
  • Midrange: 75 mm (3″) with magnetic shielding
  • Bass Extension (Hz, -6 dB): 30
  • Maximum output level (dB SPL): 116.3
  • Max. Listening Distance: up to 6 m
  • Analog input(s): XLR: analog electronically balanced
  • Analog input impedance: >13k Ohms
  • Max. input level: +24 dBu
  • Common mode rejection ratio (CMRR): >56 dB @ 15kHz
  • Input gain control (sensitivity): 0 dB … -15 dB
  • Output level control: 94; 100; 108; 114 dB SPL
  • Equalization: Bass: 0; -2.5; -5; -7.5 dB
  • Equalization: Low-Mid: 0; -1.5; -3; -4.5 dB
  • Equalization: Treble: +1; 0; -1; -2 dB
  • Controller design: Analog; active
  • Crossover frequency: 650 Hz and 2.0 kHz
  • Crossover slope: 24 dB/oct; 4th order
  • Protection circuitry: Independent thermo limiters for woofer, midrange dome and tweeter. Woofer soft clip and excursion limiters. Amplifier overheat.
  • Infrasonic filter: frequency; slope: 15 Hz; 6 dB/oct.
  • Display: On; Normal Operation: Neumann logo “White”
  • Display: Limit / Clip / Errors / Protection / Boot Mute / Shut Down Mute: Neumann logo “Red”
  • Output power woofer amplifier: 210 W (THD+N with limiter deactivated: 10%), 150 W (THD+N with limiter deactivated: 0.1%)
  • Output power tweeter amplifier: 90 W (THD+N with limiter deactivated: 10%), 70 W (THD+N with limiter deactivated: 0.1%)
  • Mains Power Supply: input voltage; frequency: 100-240V; 50/60 Hz
  • Power consumption (230 V / 100 V): Idle: 24 W, Full output: 300 W
  • Cabinet material: Polyurethane front, wooden sleeve, aluminum electronics panel
  • Cabinet surface finish; color: metallic anthracite (RAL 7021) / black (RAL 9005)
  • Operating conditions: +10° C to +40° C (+50° F to +104° F); <90% RH, non-condensing
  • Transport/storage conditions: -25° C to +70° C (-13° F to 158° F); <90% RH; non-condensing
  • Woofer: 210 mm (8 1/4″) magnetically shielded
  • Tweeter: 25 mm (1″) with protecting black metal grille
  • Mounting points: 2 x M8 on side panels; thread depth from outside of cabinet 25 mm (1”); Rear panel screws for attaching LH 41 base plate
  • Product dimensions: (height x width x depth): 253 x 383 x 292 mm (10″ x 15 1/8″ x 11 1/2″)
  • External net volume: 28.3 liters
  • Packed dimensions: (height x width x depth), mm (inches): 360 x 380 x 590 mm (14 1/8″ x 15″ x 23 1/4″)
