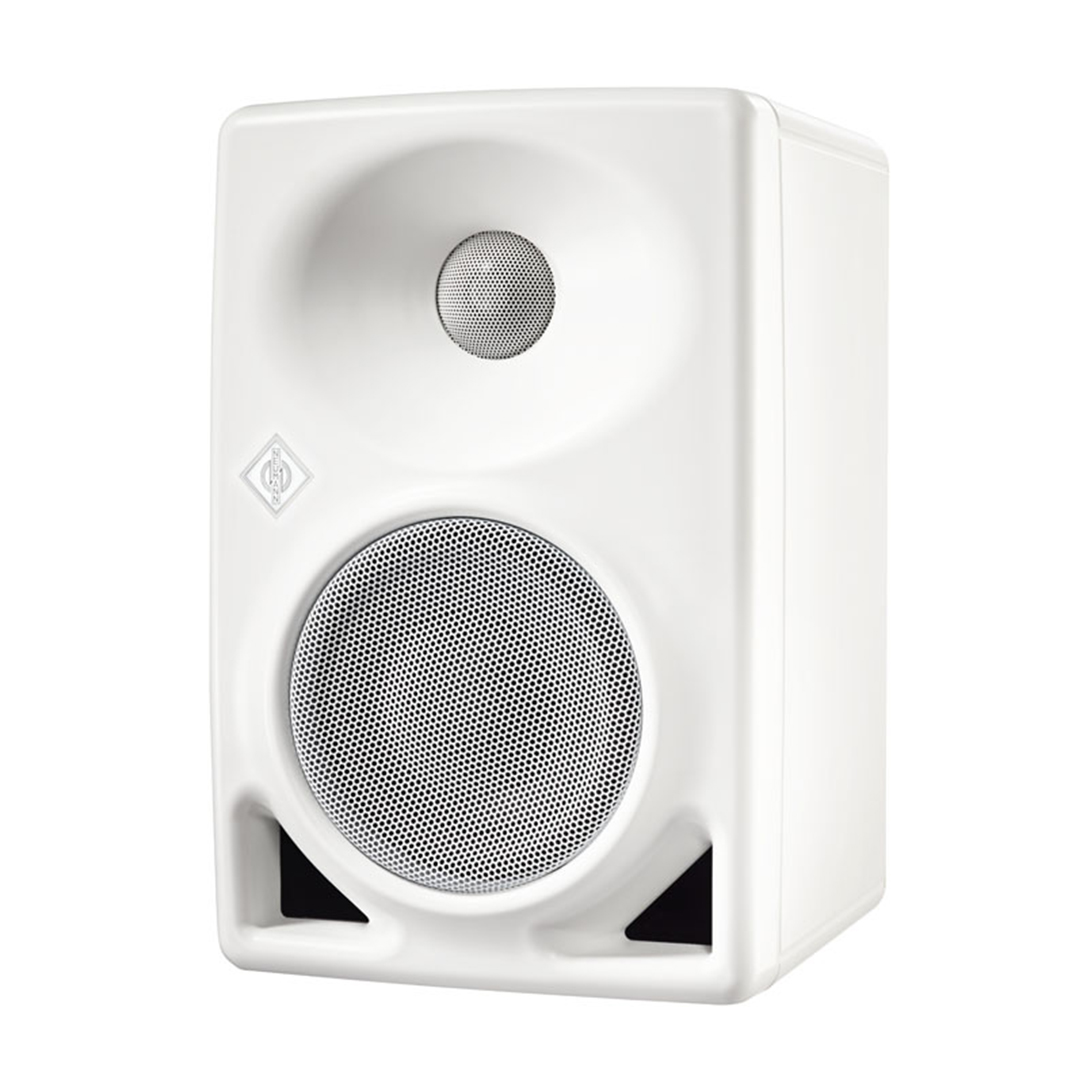

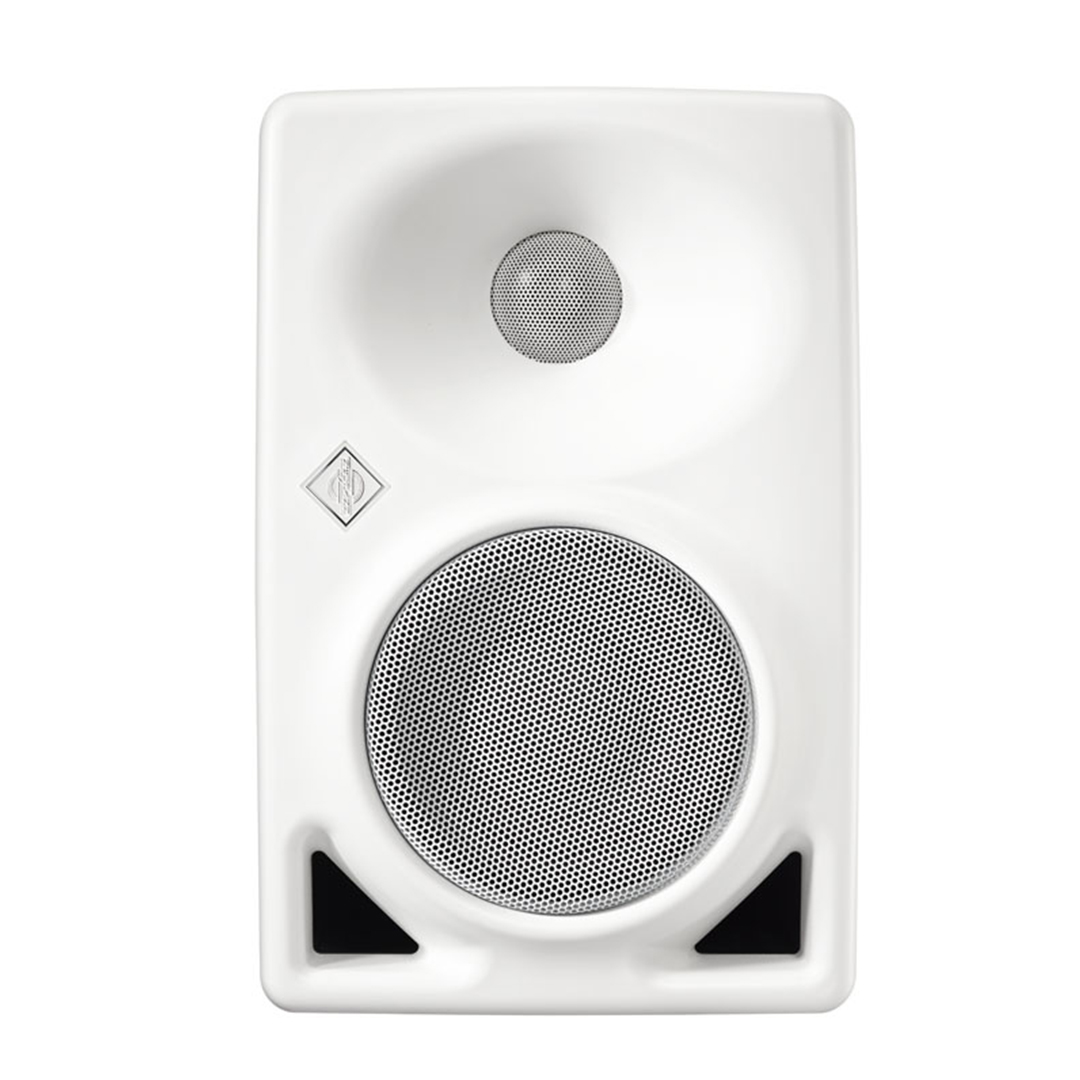

Neumann KH 80 DSP Active Near-field Monitor

The Neumann KH 80 DSP is an ultra-compact, DSP-controlled bi-amplified near-field monitor that delivers reference-class sound in any environment. Powered by a new DSP engine, the KH 80 DSP offers precision filtering functions and room adjustment options, making it a versatile solution for studios of all sizes, mobile setups, and desktop mixing environments. Despite its small footprint, it provides exceptional output reserves, distortion-free design, and the unmistakable sonic accuracy of Neumann’s monitor philosophy.

Key innovations include the Elliptical Mathematically Modeled Dispersion™ (MMD™) waveguide for smooth off-axis response, a custom-designed tweeter with alloy fabric dome for low-distortion high-frequency reproduction, and an in-house long-throw composite sandwich cone bass driver with Extremely Linear Force Factor™ (ELFF™) technology. Together, these elements ensure precise imaging, consistent performance, and reliable translation across playback systems. With network connectivity via standard IP protocol, the KH 80 DSP integrates seamlessly with Neumann’s MA 1 Automatic Monitor Alignment system, providing advanced room calibration and flexible control through Neumann.Control software.

Compact, rugged, and highly accurate, the KH 80 DSP is equally at home in professional studios, editing suites, broadcast environments, or mobile production rigs. Whether used as a main monitor in smaller spaces or as a satellite in larger setups, it delivers uncompromising clarity, wide dynamic range, and trusted Neumann performance in a portable form factor.

Key Features

• Ultra-compact DSP-controlled near-field monitor with bi-amplified design

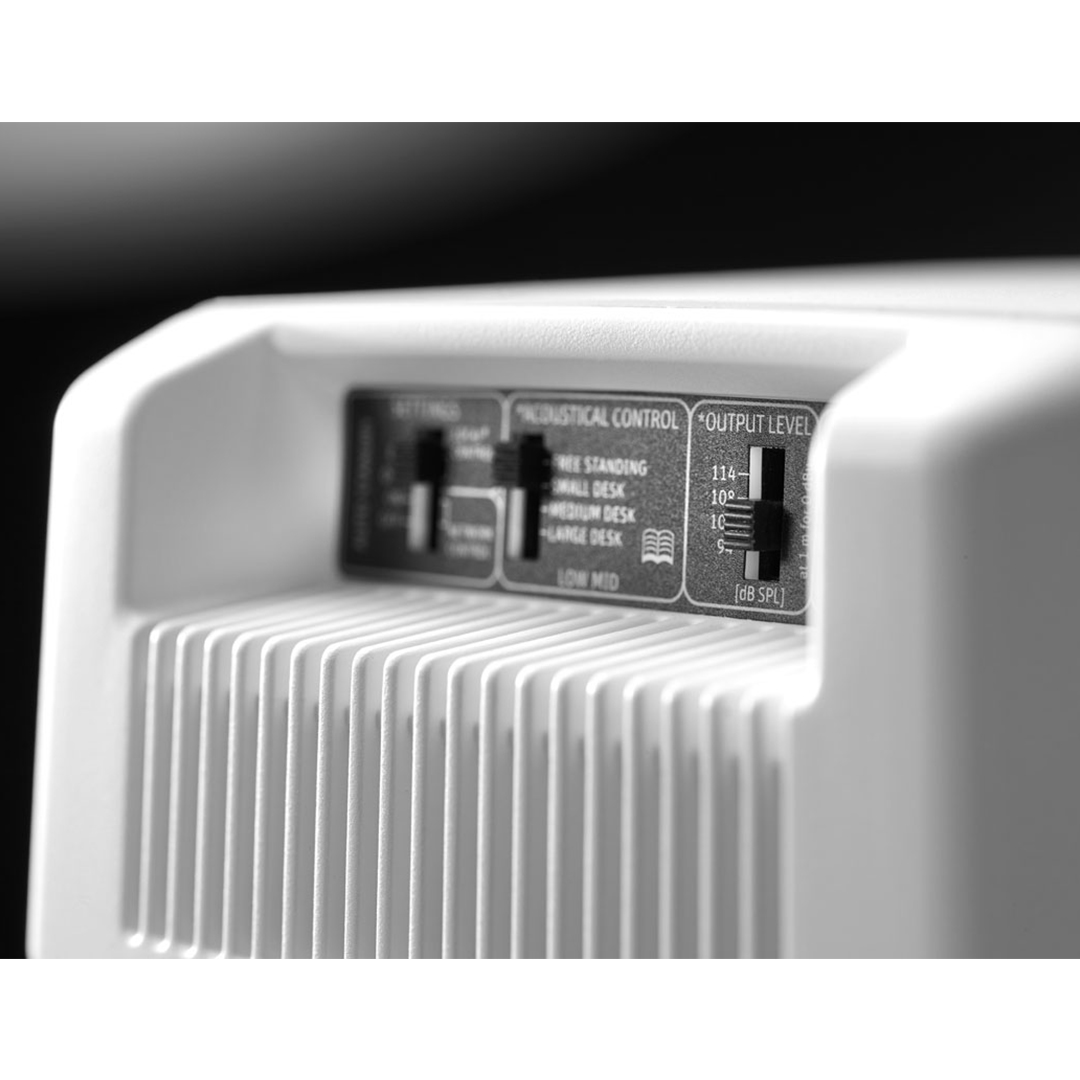

• New DSP engine for filtering functions, room adjustment, and system alignment
• Elliptical Mathematically Modeled Dispersion™ (MMD™) waveguide for smooth off-axis response

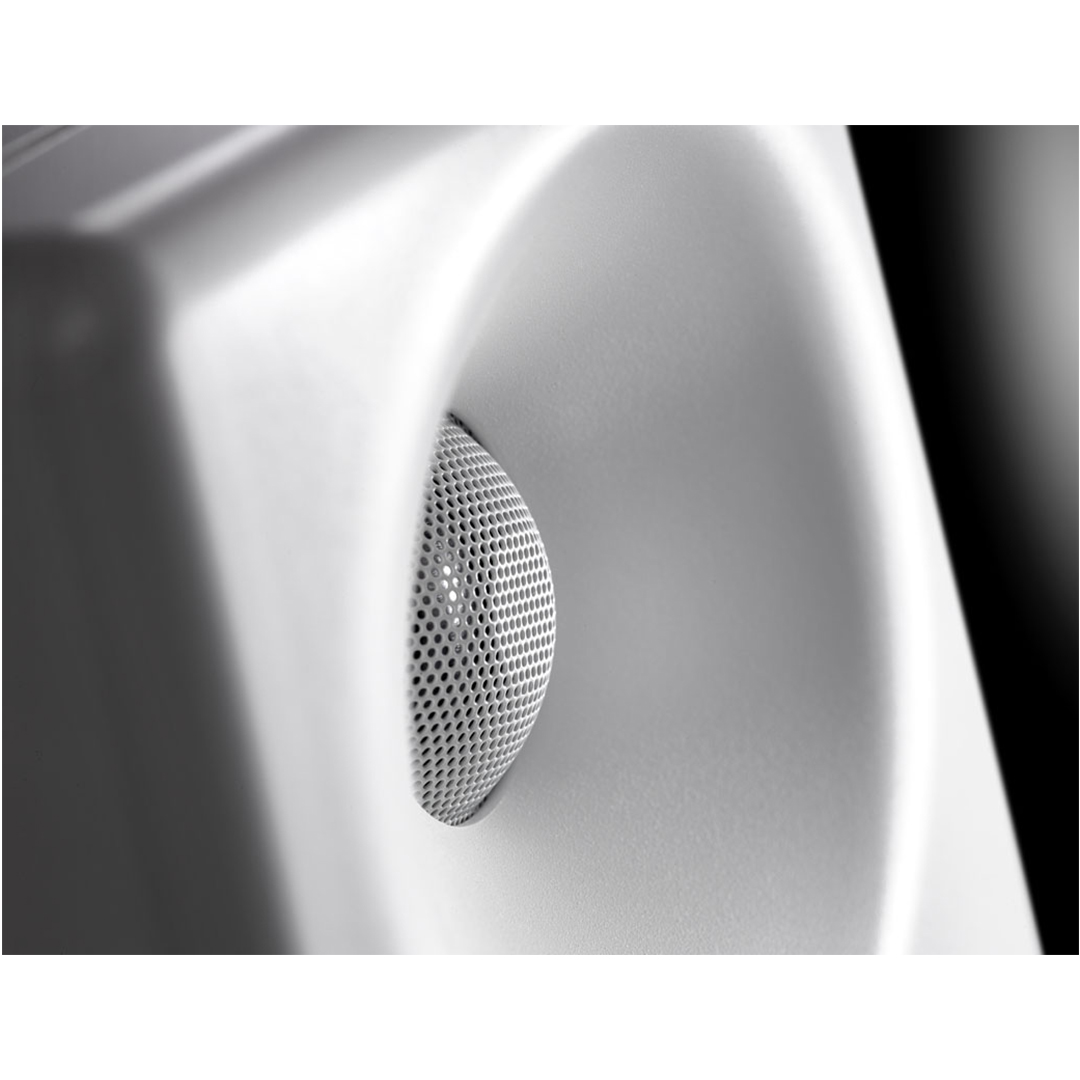

• Custom in-house tweeter with alloy fabric dome for low-distortion high-frequency reproduction

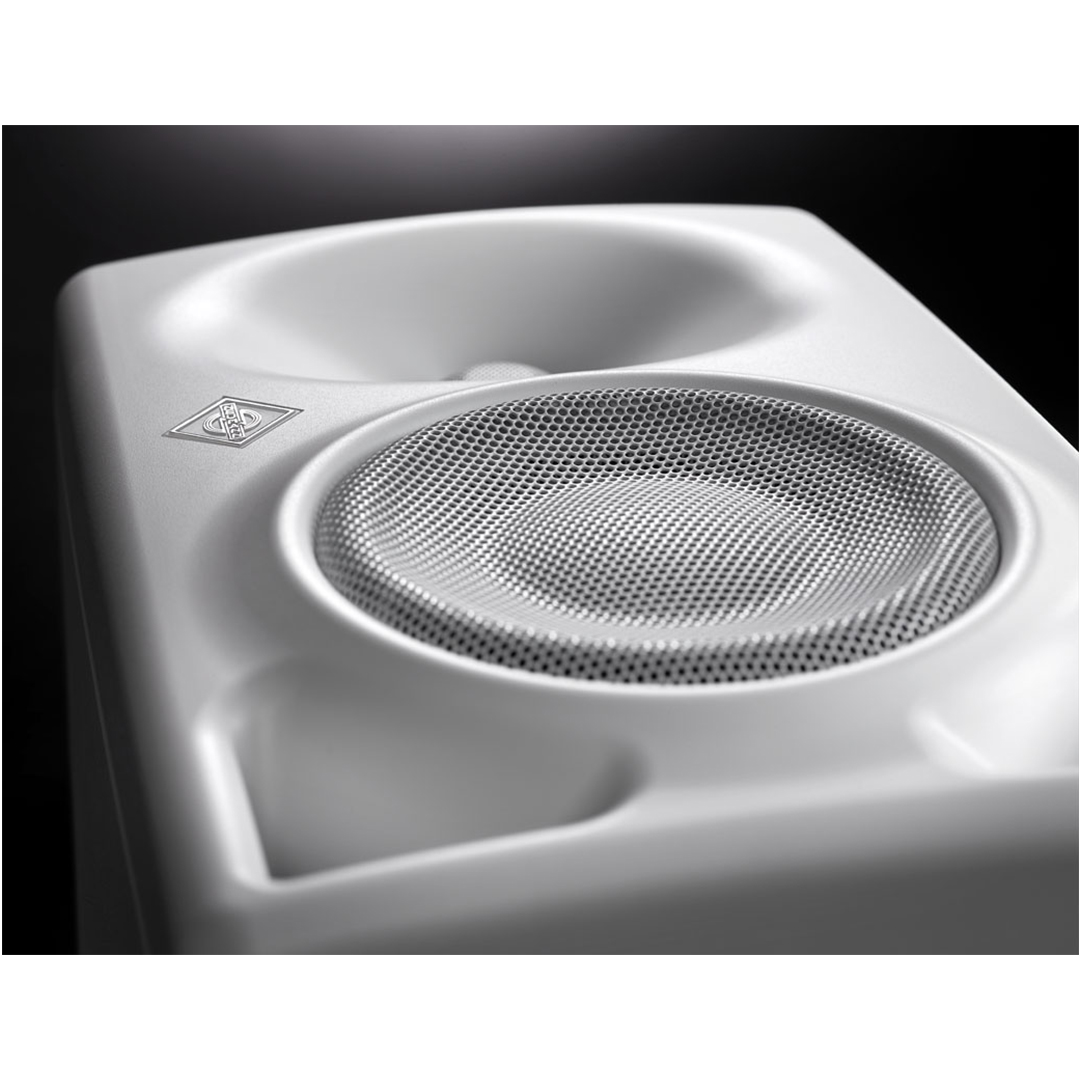

• Long-throw composite sandwich cone woofer with ELFF™ motor design for tight, accurate bass

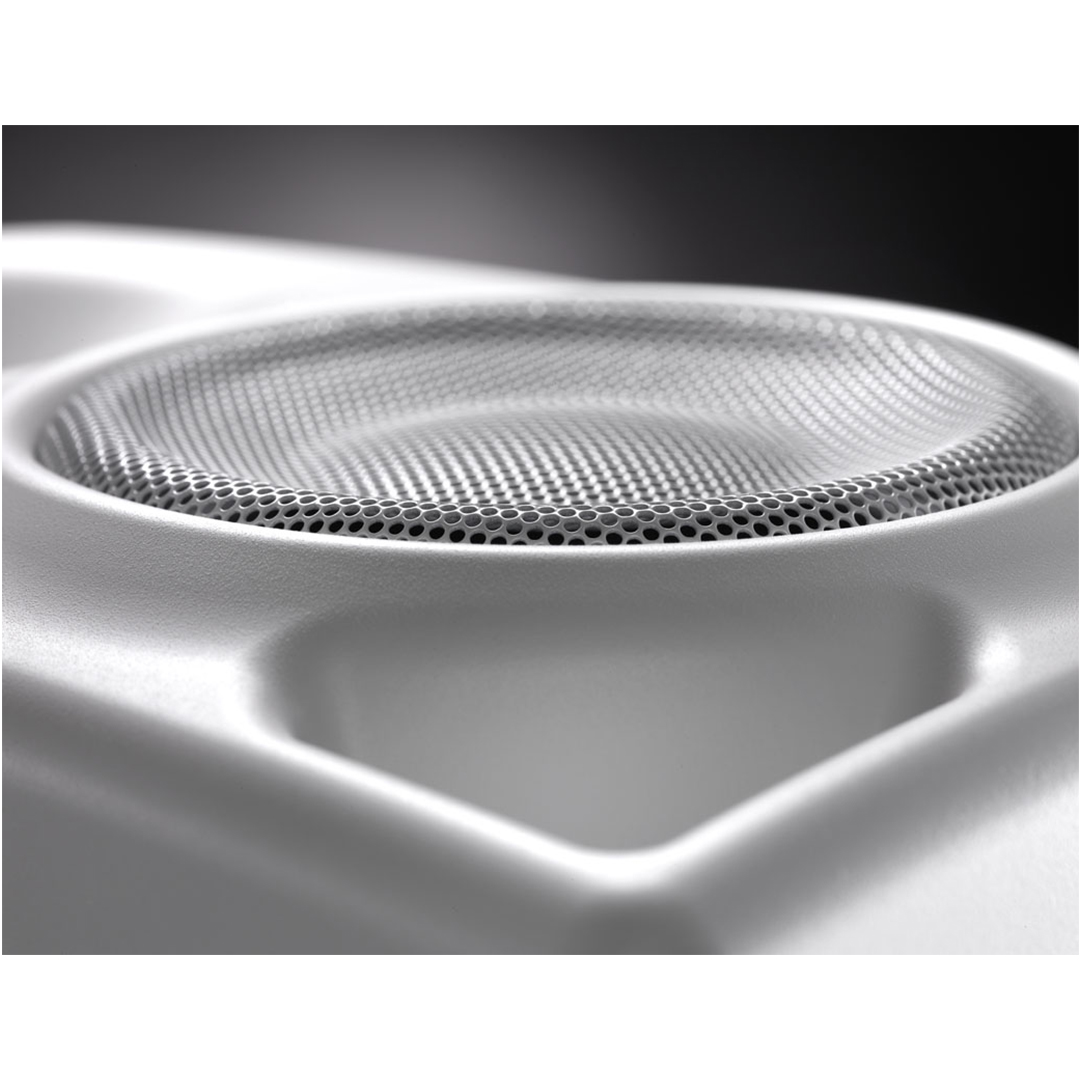

• Large, flow-optimized bass reflex ports with resonance damping for fast transient response

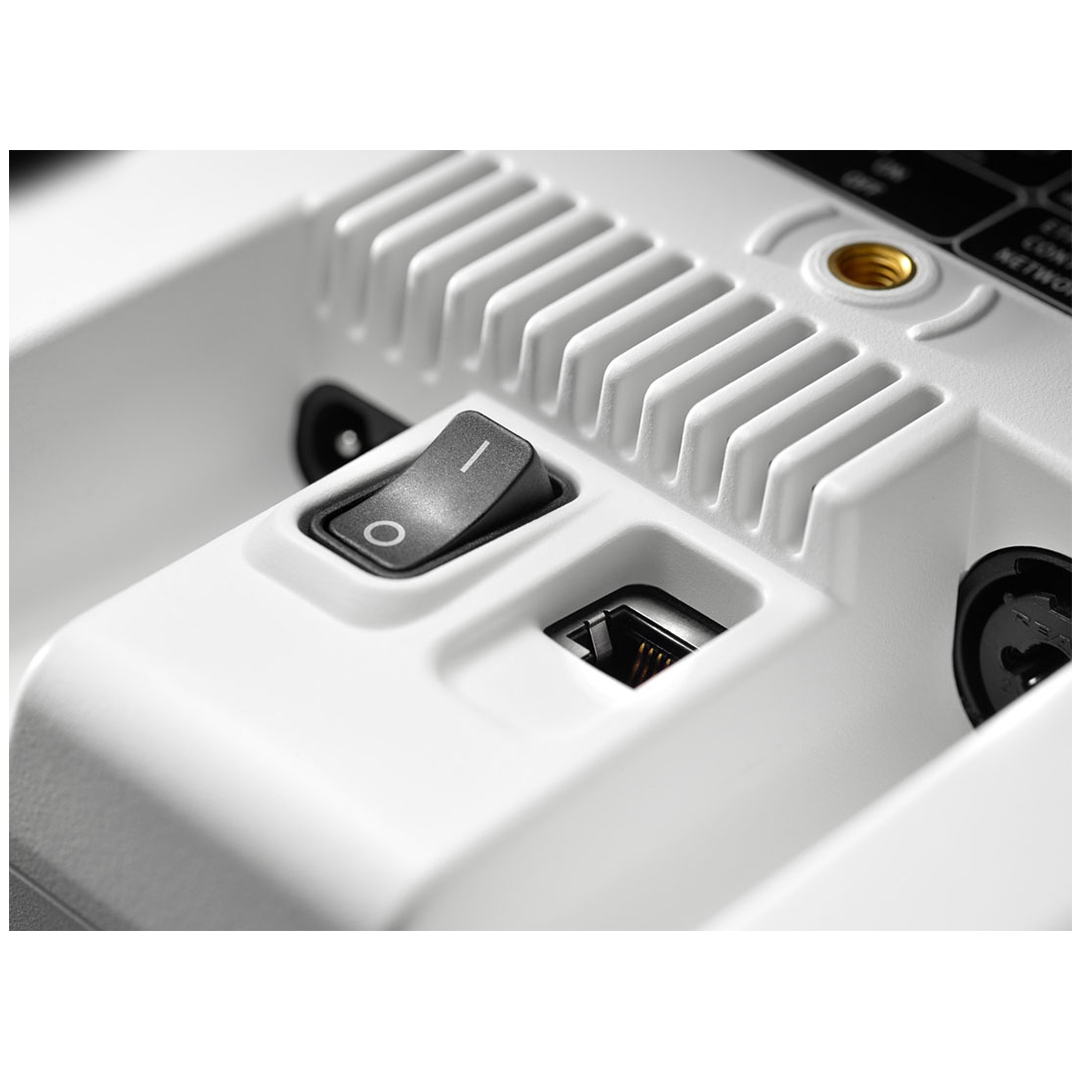

• Network connector for use with Neumann.Control software and MA 1 automatic room alignment
• Compact polycarbonate composite cabinet with robust metal grille for long-lasting durability

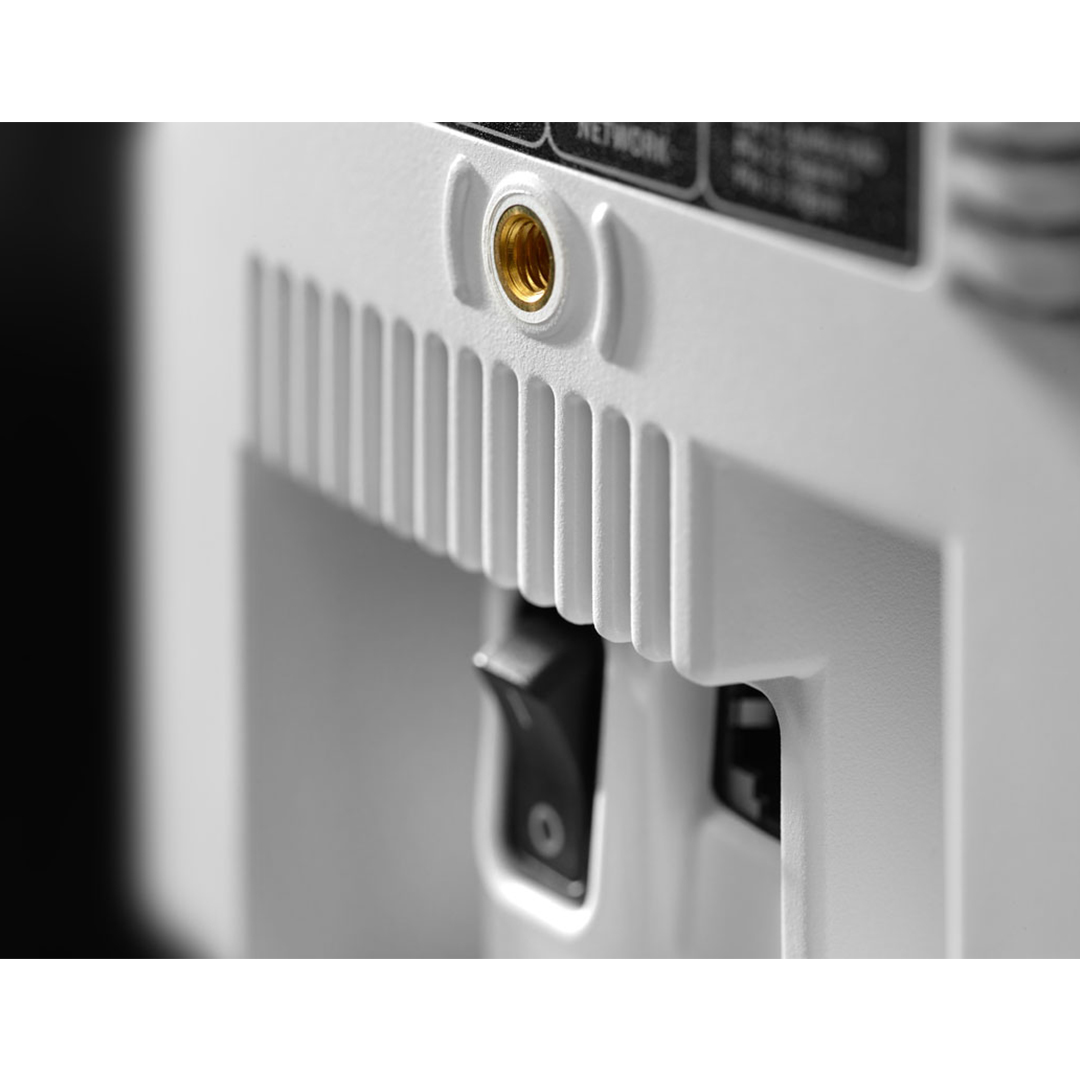

• Extensive mounting options and accessories for flexible installation
• Universal double-insulated power supply (100–240 V) for worldwide operation

Specifications

• Frequency Response: 57 Hz – 21 kHz (±3 dB); 53 Hz – 21 kHz (±6 dB)
• Max SPL (1m): 108.8 dB SPL (half space, 3% THD)
• Amplifier Power: 120 W (woofer), 70 W (tweeter)
• Drivers: 4″ composite sandwich cone woofer, 1″ alloy fabric dome tweeter
• Crossover Frequency: 1.8 kHz, 48 dB/oct linear-phase

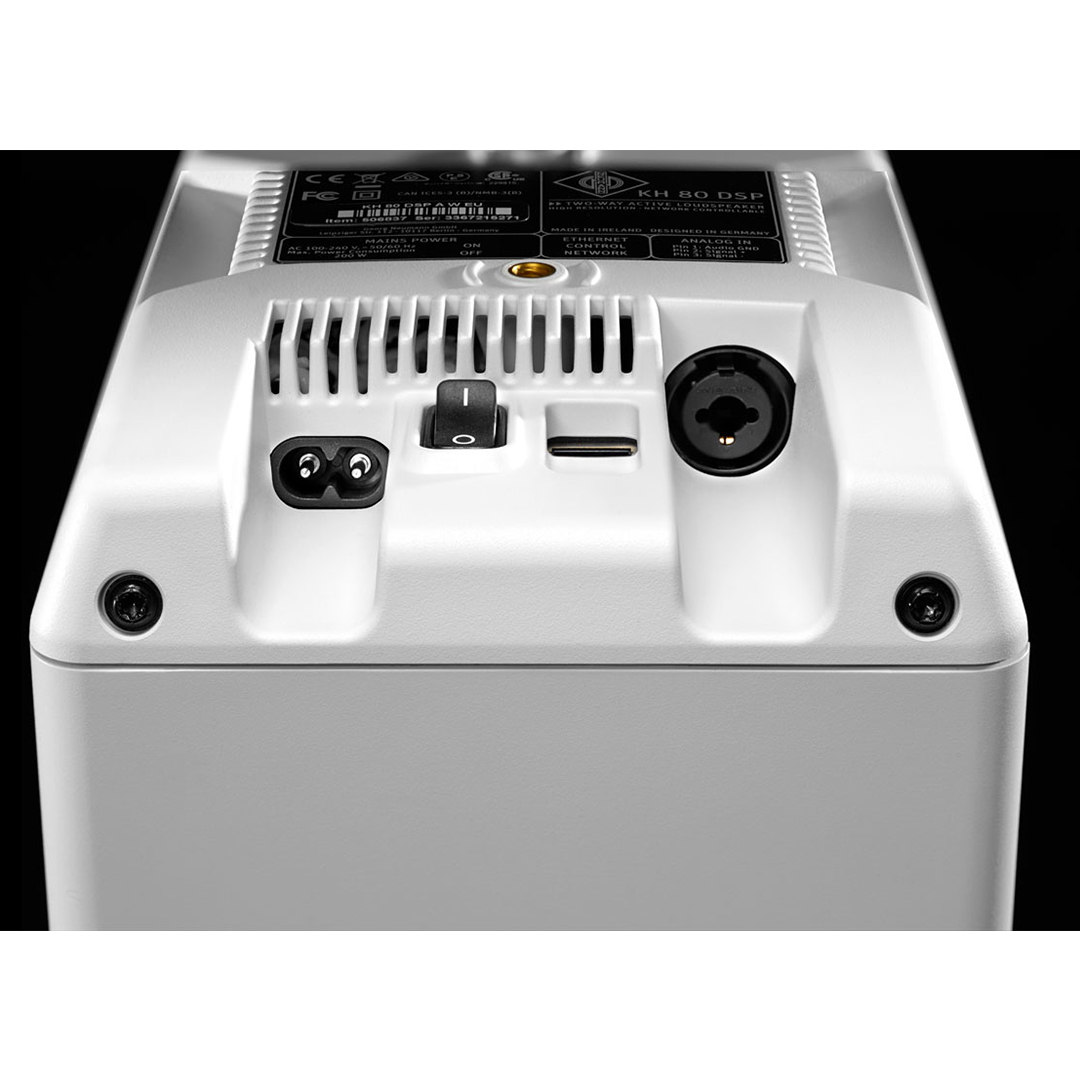

• Inputs: XLR or 1/4″ TRS (electronically balanced)
• Input Impedance: 14kΩ
• Max Input Level: +24 dBu (adjustable sensitivity/output levels)
• DSP Functions: 8-band parametric EQ, room correction via MA 1, linear phase FIR filtering
• Latency (A-D-A): 2 ms
• Protection: Independent limiters for woofer/tweeter, excursion limiter, thermal protection
• Cabinet: Polycarbonate composite with front-facing bass reflex ports
• Dimensions (H x W x D): 233 x 154 x 194 mm (9 1/8″ x 6″ x 7 5/8″)
• Weight: 3.5 kg (7.7 lbs)
• Finish: Metallic anthracite front, black rear
